Make sure you build the third
stepper motor support shown exactly as
shown in Fig. 4-27.
When you're finished, you should
have three stepper motor support
assemblies that look exactly like the three
shown in Fig. 4-28.

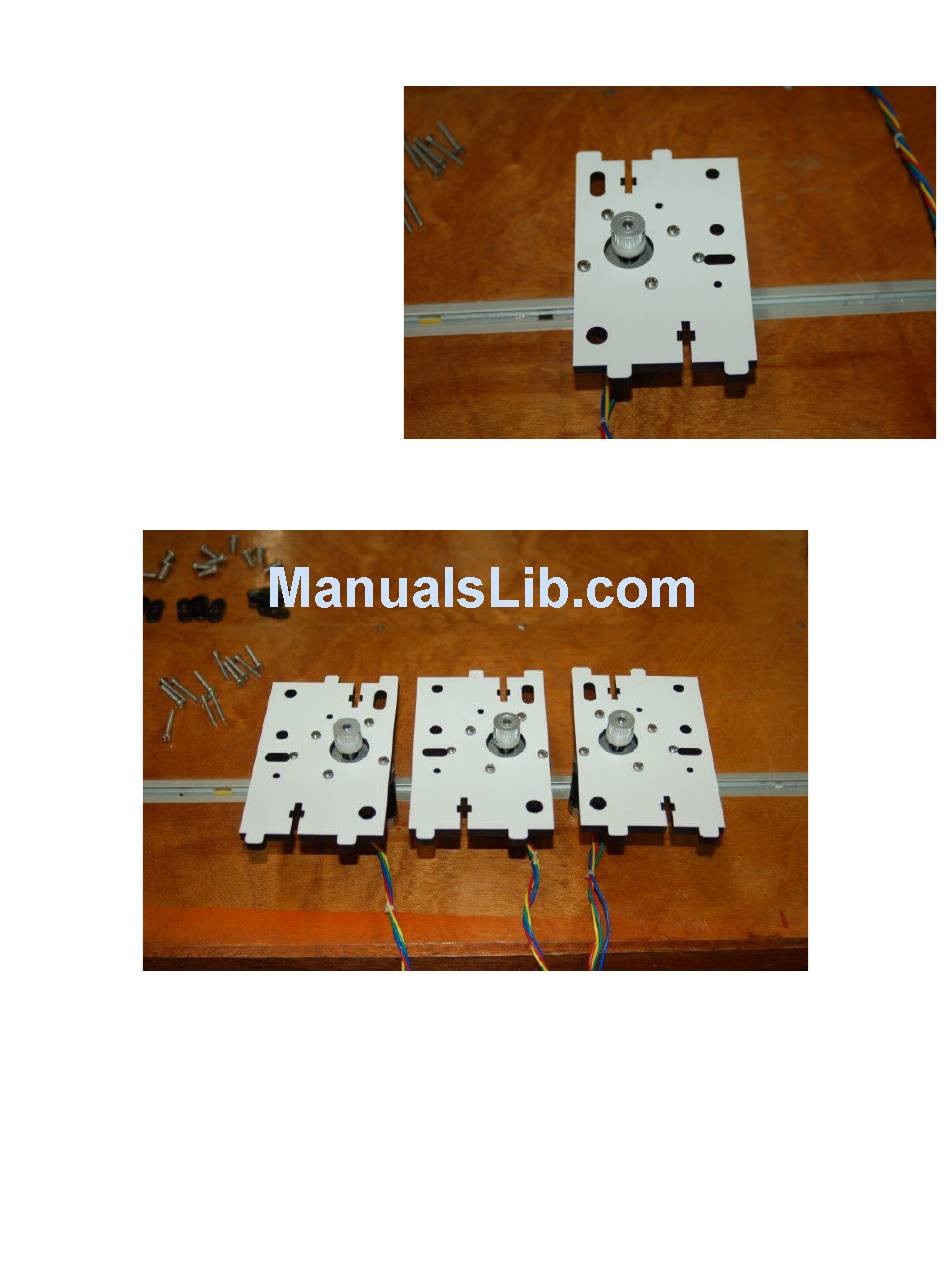

Fig. 4-28: Correctly assembled stepper mount plates.
Rostock MAX v2 Assembly Guide
Fig. 4-27: Mirrored stepper motor plate.
45
