Attaching the Hot End to the Hot End Mounting Plate
You'll need the following components to complete this task:
1. (___) Hot End Mounting Nut (1) (Removed from hot end.)
2. (___) Hot End Mounting Plate (1)
3. (___) Hot End Mouting Plate Spacer (2)
4. (___) PTF Connector (1) (Removed from hot end.)
5. (___) Wired Hot End (1)
6. (___) Wire Tie (1) (Not Shown.)

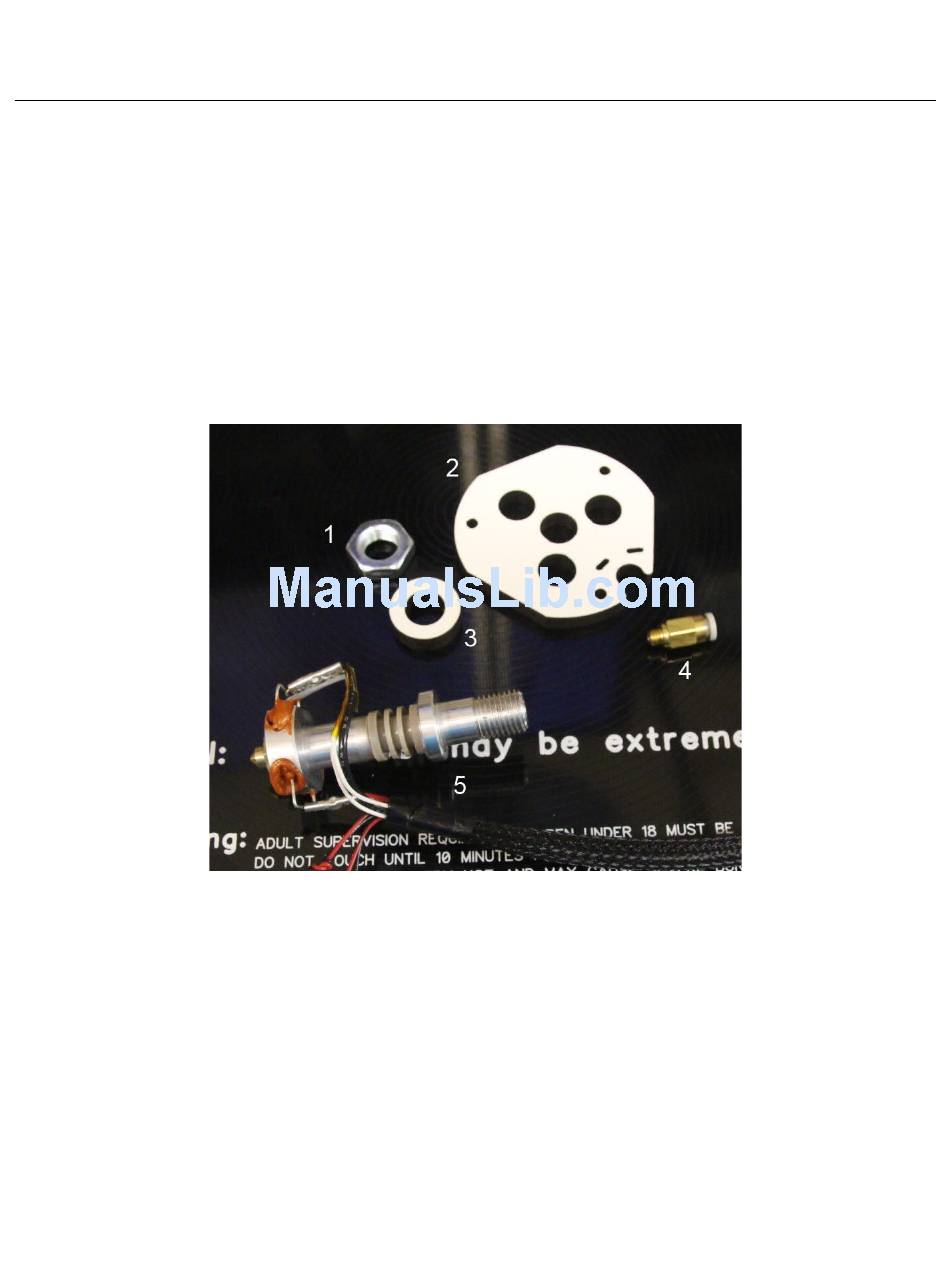

Fig. 13-19:Hot End Mounting Components.
