After you've got all three started, use a Phillips screwdriver and a 5/16" wrench to tighten the
three mounting screws down. When you're done, you should have something similar to Fig. 15-4.
Now all you need to do is carefully raise each Cheapskate back up to the "operating" position.
This assembly step brings up a good suggestion
for keeping your Rostock MAX v2 in good shape
during transportation. If you invert the arms before
you transport the machine, you'll not run the risk of the
hot end getting knocked into the build plate. The
inverted position also helps prevent the hot end
moving around.
Rostock MAX v2 Assembly Guide

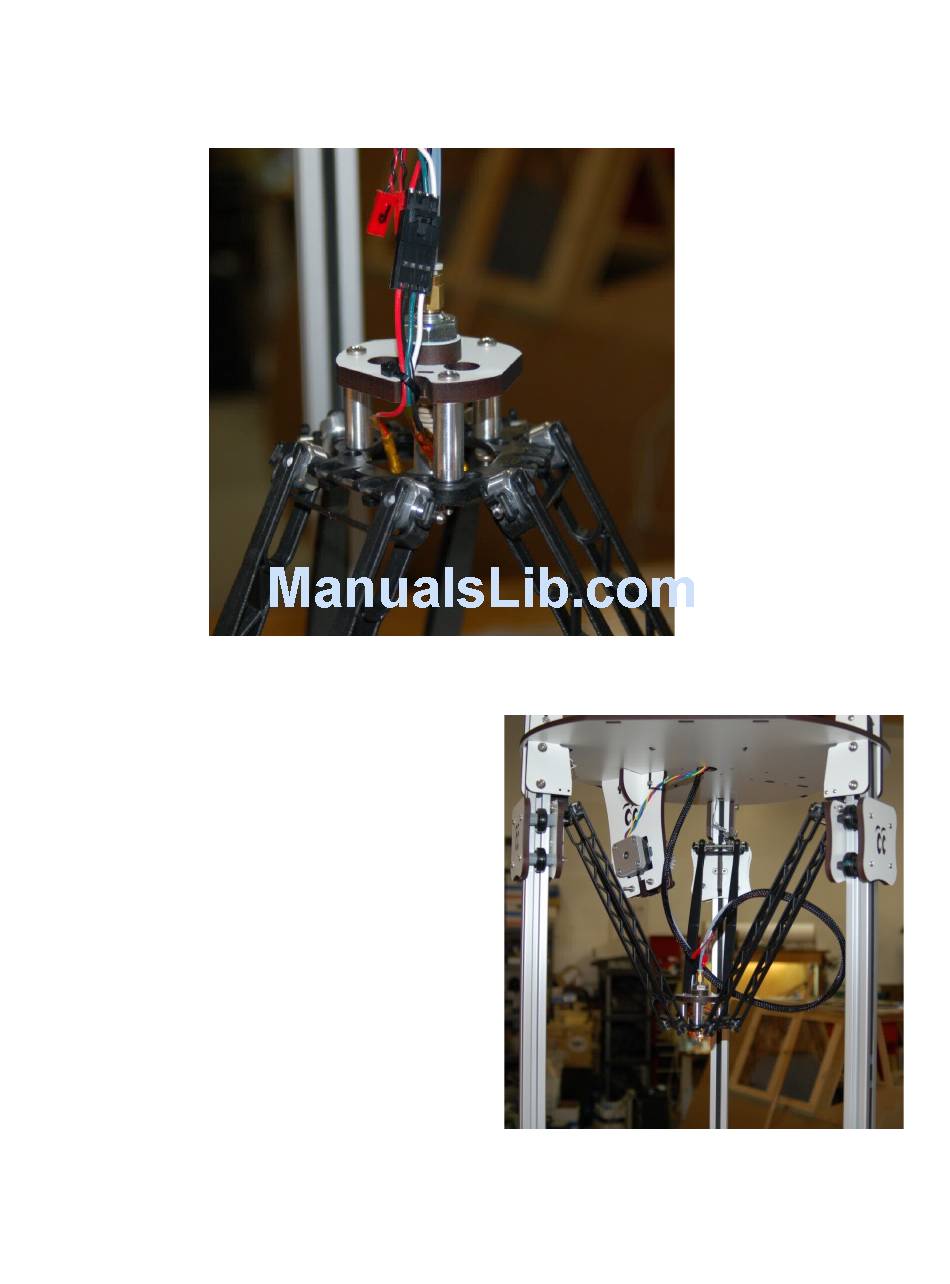

Fig. 15-4:Hot end mounted!
Fig. 15-5:All done!
163
