Rostock MAX v2 Assembly Guide
7 – Assembling the Top Section
In order to assemble the top section of the Rostock MAX v2, you're going to need the following
components:
1. (___) Top Section Base Plate
2. (___) Tower Spacers (3)
3. (___) #4, 3/8" Pan Head Sheet Metal Screws (3)
4. (___) Upper Tower Mounts (6)
5. (___) ¼-20, 1/2" Stainless Steel Button Head Cap Screws (12) (Not Shown.)
6. (___) T-Slot Nut Plates (12) (Not Shown.)

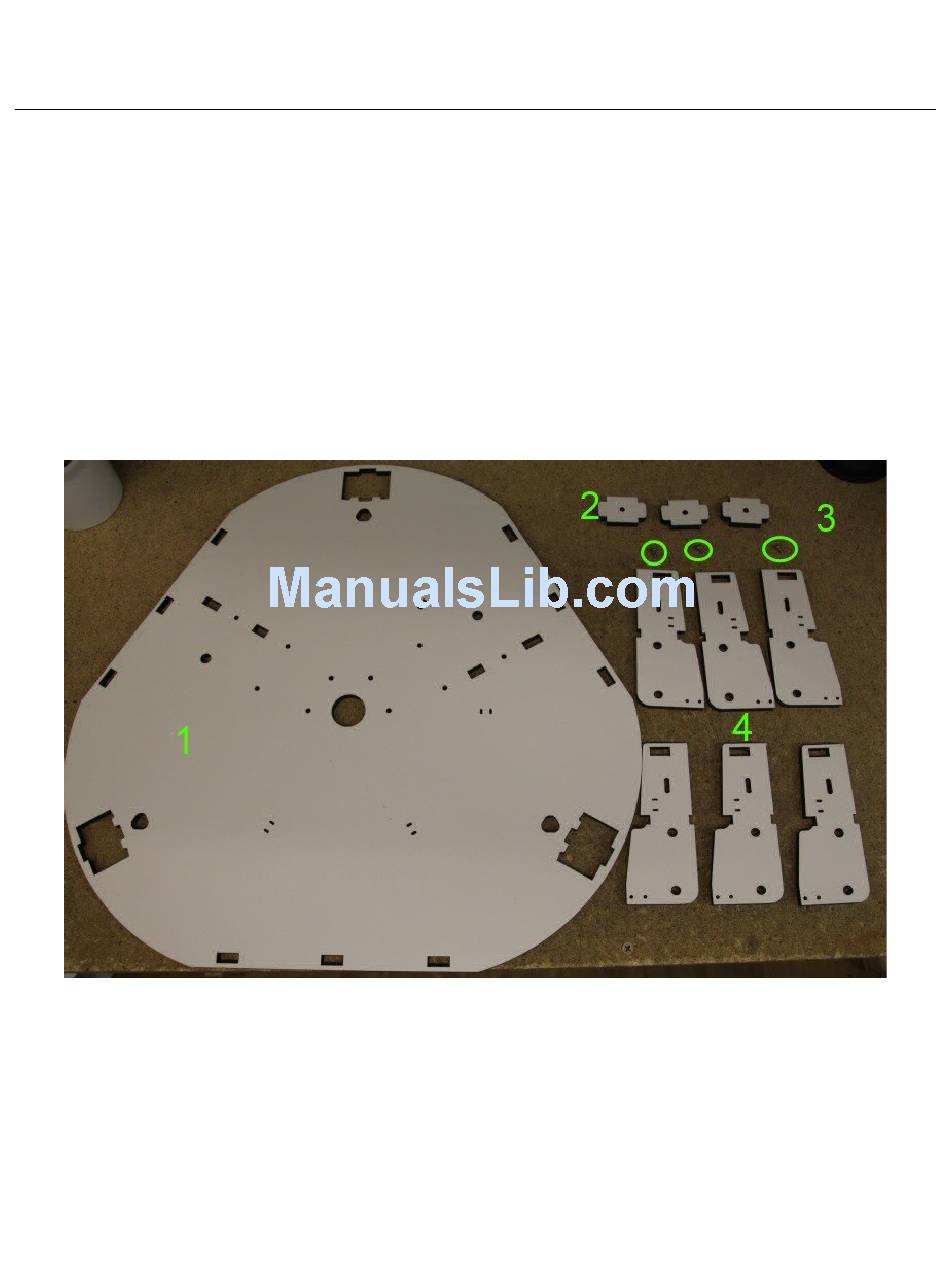

Fig. 7-1: Top Section Components.
