5A – Installing the Rev2 Onyx Heated Bed
If your Onyx heated bed is labeled 'Rev3', please skip to Section 5B. If the Onyx is labeled
'Rev5' or 'Rev6', please skip to section 5C."
For this task you'll need the remaining parts in the Onyx Heated Bed package:
1. (___) Thermistor Pack. Includes a red LED, PTFE insulation tubing, a thermistor and a
small resistor.
2. (___) Onyx Heated Bed
3. (___) "Snowflake" Mounting Plate (Not Shown)
4. (___) Nylon Spacers (6) (Not Shown)
5. (___) #4-40, 3/4" Stainless Steel Flat Head Screws (6) (Not Shown)

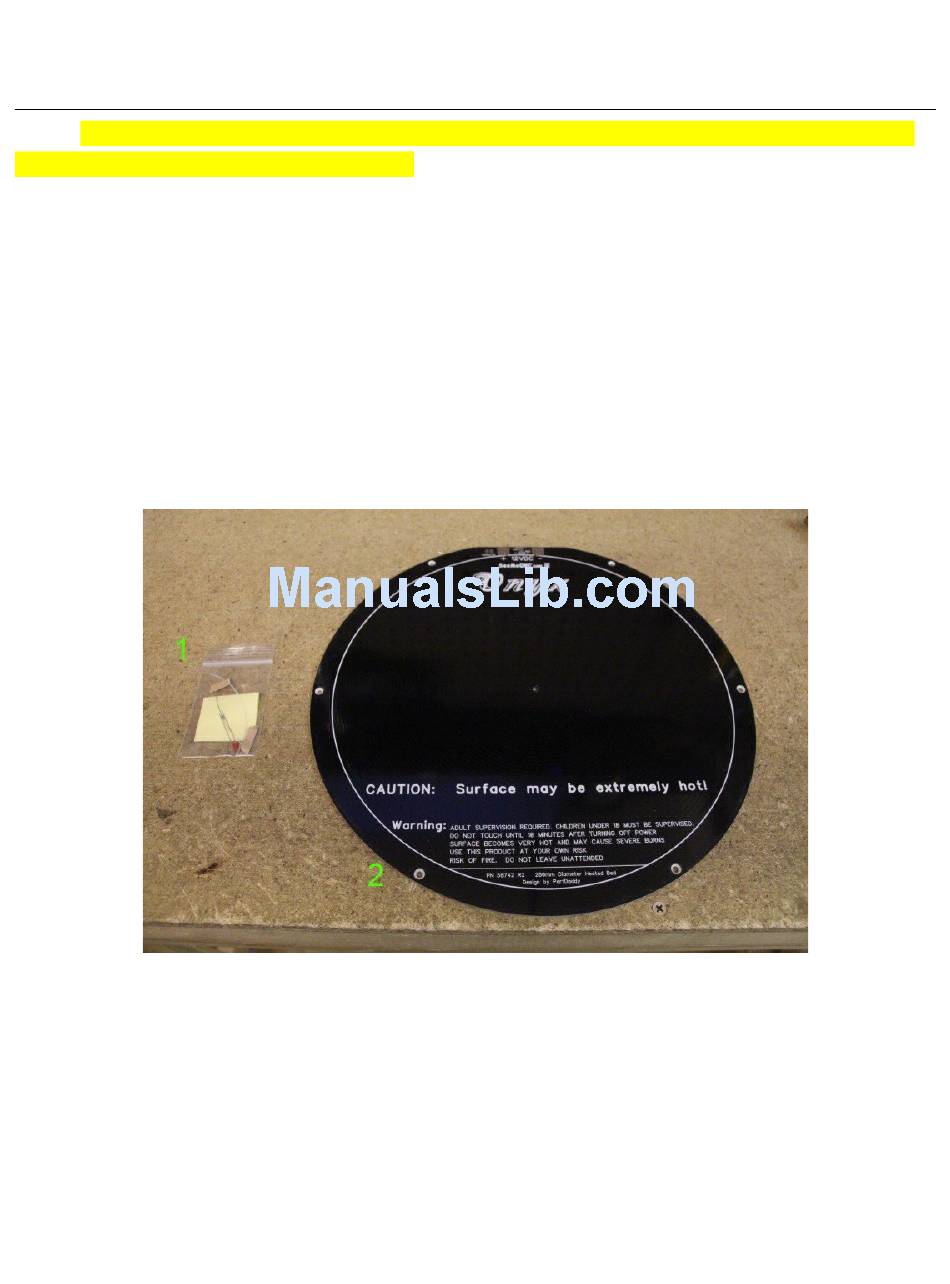

Fig. 5A-1: Onyx heated bed parts.
