We'll start on attaching the delta arms at the Cheapskate mounted u-joints. The end of the arm
grips the u-joint like a spring and can be opened with one finger as you slide it over the u-joint. Make
sure that the posts on the u-joints seat fully in the arm end and that the spring clip is oriented as shown
in Fig. 14-8.
Repeat the process for the five remaining arms.
Attaching the arms to the
effector platform is just as simple and
straightforward as it was connecting the
other end! Make sure you orient the
effector platform with the smooth face
up! (The writing will be on the bottom.)
Rostock MAX v2 Assembly Guide

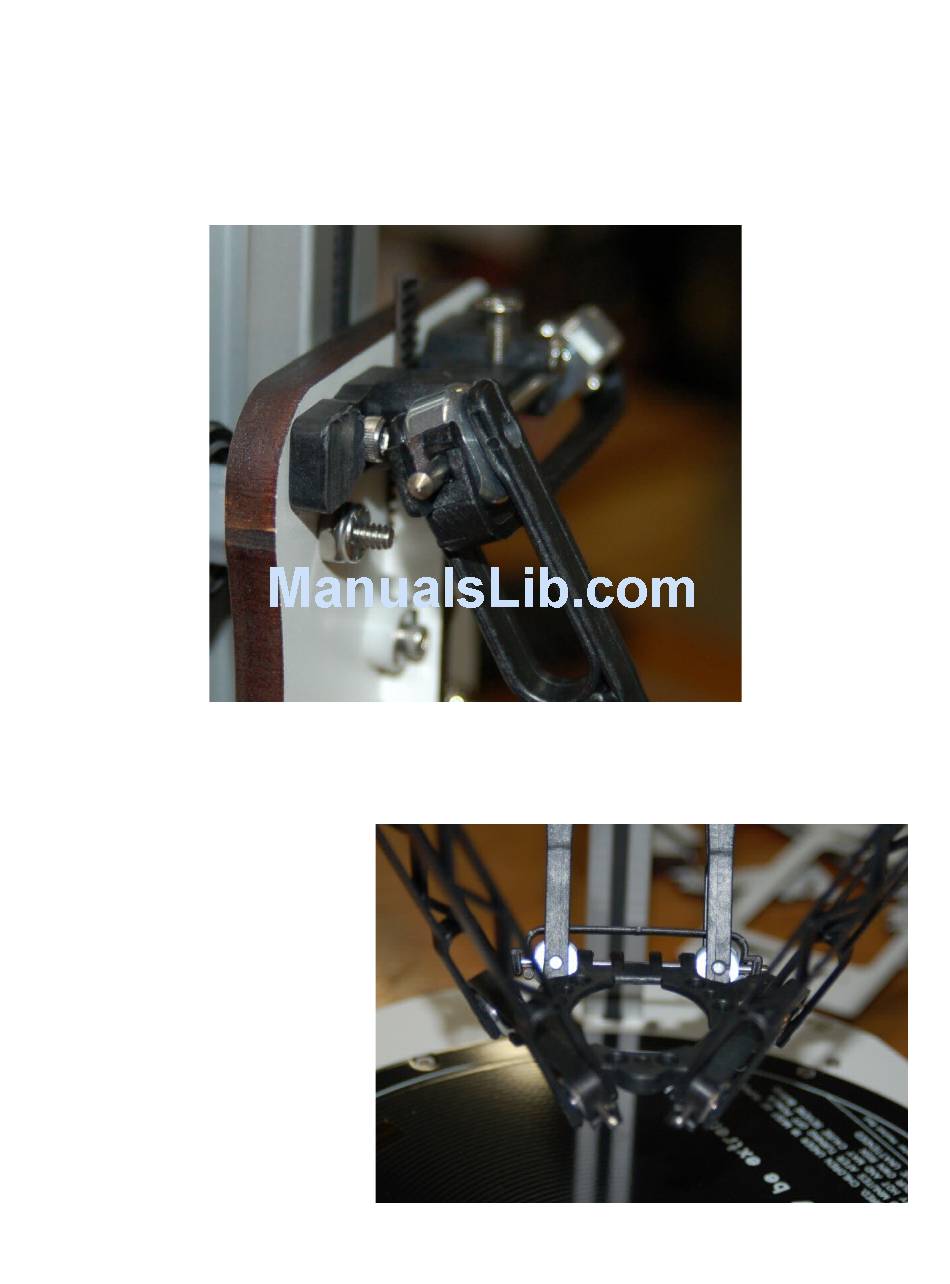

Fig. 14-8:Installing an arm.
Fig. 14-9:Arms attached to the effector platform.
