Final Assembly Tasks; Attaching The Base Covers & Lcd Panel - SeeMeCNC Rostock MAX v2 Assembly Manual

Attaching the Base Covers & LCD Panel
For this task, you'll need the following components:
1. (___) #10-32, 3/4" Black Nylon Thumb Screws (6)
2. (___) Base Side Covers (2)
3. (___) LCD Front Panel (1) (Not Shown.)
In order to mount the side covers and the LCD panel you're going to have to tap the mounting
holes on each vertical support. Yes, you get to go through the same adventure tapping these holes that
you went through for the top cover mounting holes!
You'll need to tap the top two holes
in each vertical support (highlighted in
green).
Rostock MAX v2 Assembly Guide
19 – Final Assembly Tasks

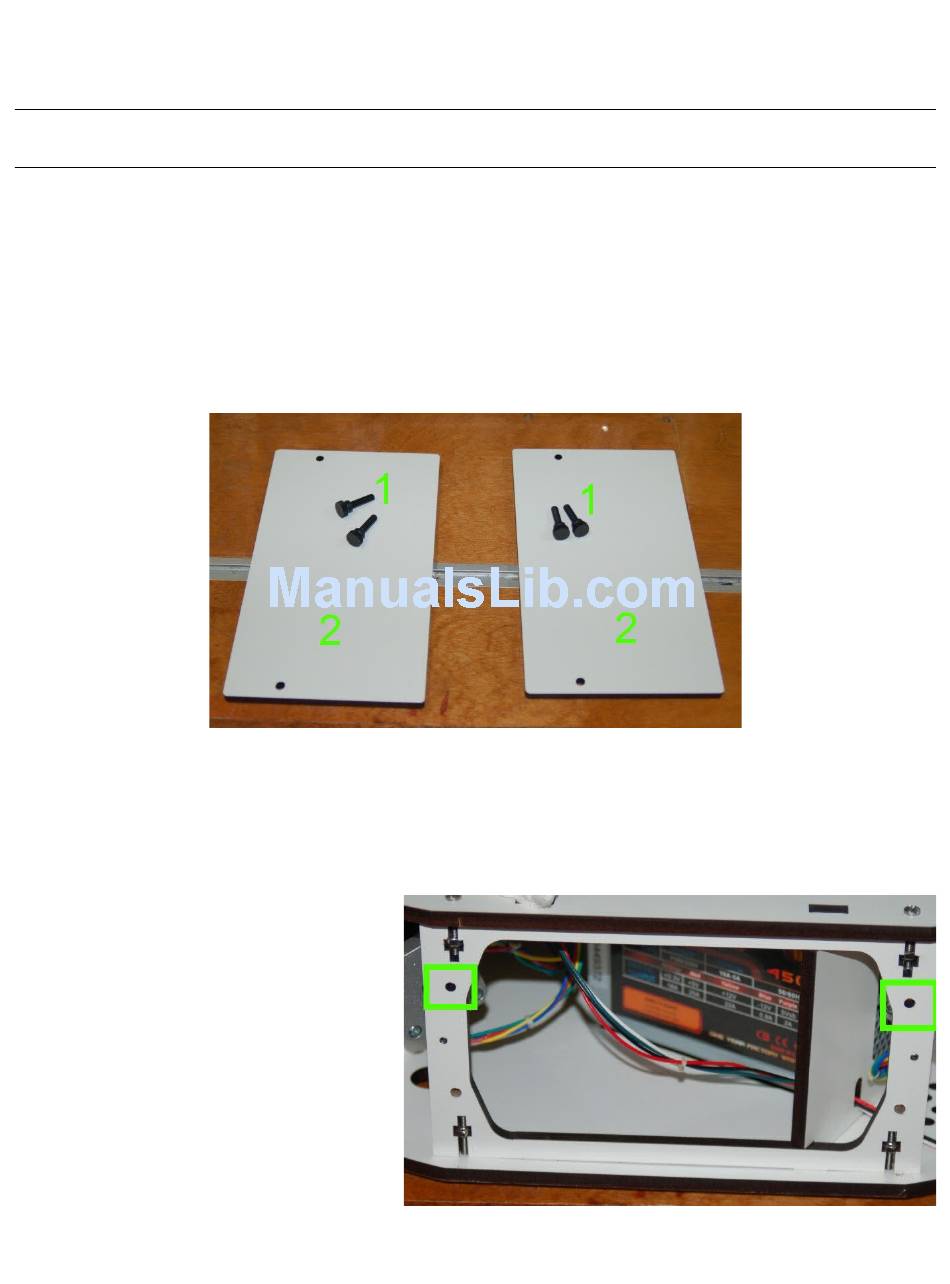

Fig. 19-1:Side Cover components.
Fig. 19-2:Hole locations.
