Canon iR C3200 Series Service Manual page 471

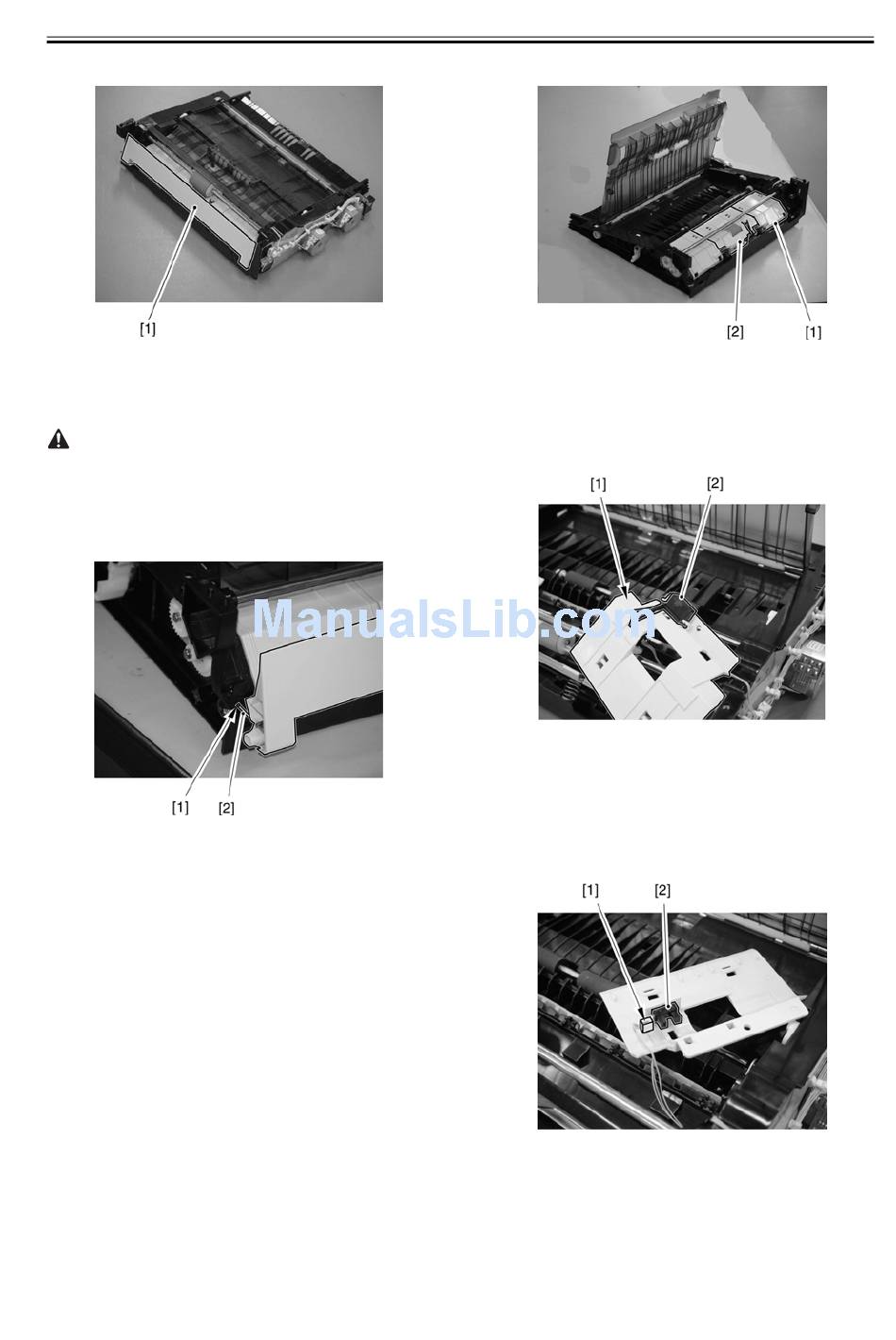

F-10-152
When attaching the face plate, be sure that the spring
[2] fits into the hole [1] found on the front side of the
arm.
F-10-153
2) Detach the rear guide [1] and the middle guide [2].
(Free the snap-in claw.)
F-10-154
3) Remove the sensor flag [2] attached to the middle
guide [1].
F-10-155
4) Disconnect the connector [1] from behind the
middle guide, and detach the manual feed paper
sensor [2].
F-10-156
Chapter 10
10-65
