Chapter 10

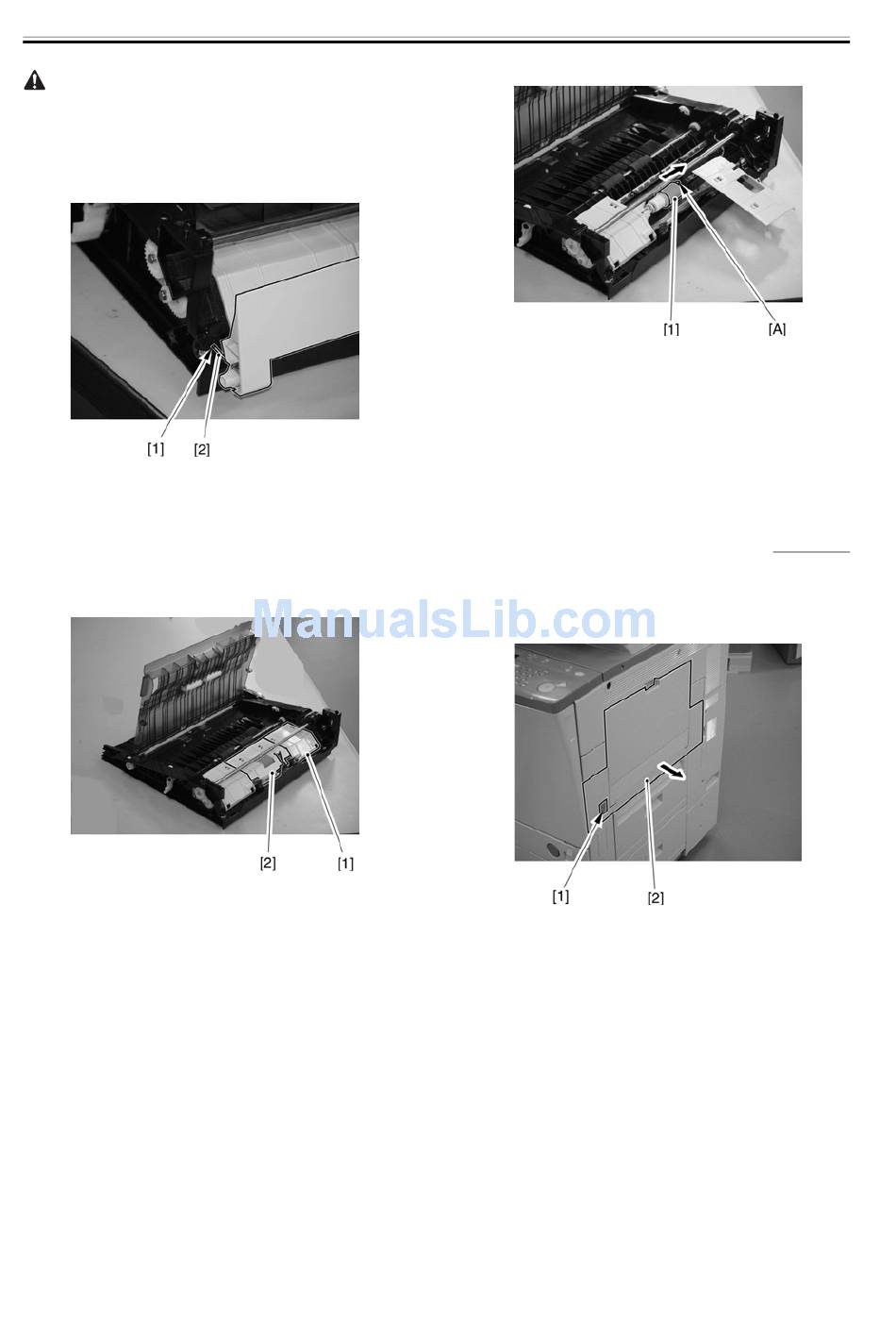

When attaching the face plate, be sure that the spring
[2] fits into the hole [1] found on the front side of the
arm.
F-10-130
2) Detach the rear guide [1] and the middle guide [2].
(Free the snap-in claw.)
F-10-131
3) Pick the tab [A] of the manual feed separation roller
[2], and pull it out in the direction of the arrow.
10-60
F-10-132
10.10.16 Manual Feed Last Paper
Sensor
10.10.16.1 Removing
Manual Feed Unit
1) Press the release button [1] on the machine's right
side to slide out the manual feed unit [2].
F-10-133
2) Remove the screw [1] and the stopper plate [2];
then, detach the manual feed unit [3].
the
