10
GPS OPERATION

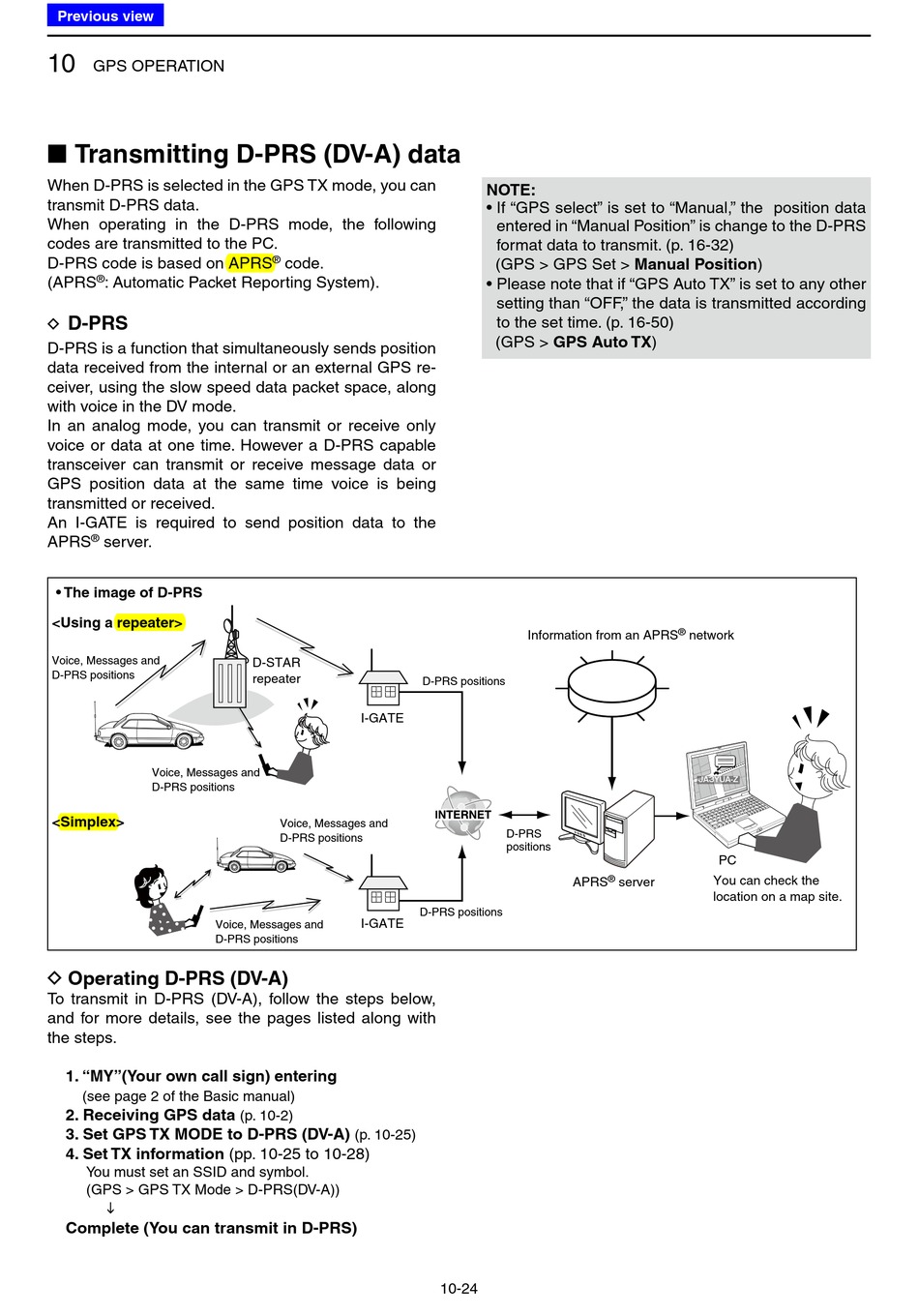

■ Transmitting D-PRS (DV-A) data

When D-PRS is selected in the GPS TX mode, you can
transmit D-PRS data.
When operating in the D-PRS mode, the following
codes are transmitted to the PC.
D-PRS code is based on APRS
®
(APRS : Automatic Packet Reporting System).
D-PRS
D
D-PRS is a function that simultaneously sends position
data received from the internal or an external GPS re-
ceiver, using the slow speed data packet space, along
with voice in the DV mode.
In an analog mode, you can transmit or receive only
voice or data at one time. However a D-PRS capable
transceiver can transmit or receive message data or
GPS position data at the same time voice is being
transmitted or received.
An I-GATE is required to send position data to the
APRS ® server.
• The image of D-PRS
<Using a repeater>
Voice, Messages and
D-PRS positions
Voice, Messages and
D-PRS positions
<Simplex>
Voice, Messages and
D-PRS positions

D Operating D-PRS (DV-A)

To transmit in D-PRS (DV-A), follow the steps below,
and for more details, see the pages listed along with
the steps.
1. "MY"(Your own call sign) entering
(see page 2 of the Basic manual)
2. Receiving GPS data
3. Set GPS TX MODE to D-PRS (DV-A)
4. Set TX information (pp. 10-25 to 10-28)
You must set an SSID and symbol.
( GPS > GPS TX Mode > D-PRS(DV-A))

Complete (You can transmit in D-PRS)
®
code.
D-STAR
repeater
I-GATE
Voice, Messages and
D-PRS positions
I-GATE
(p. 10-2)
(p. 10-25)
NOTE:
• If "GPS select" is set to "Manual," the position data
entered in "Manual Position" is change to the D-PRS
format data to transmit. (p. 16-32)
(GPS > GPS Set > Manual Position)
• Please note that if "GPS Auto TX" is set to any other
setting than "OFF," the data is transmitted according
to the set time. (p. 16-50)
(GPS > GPS Auto TX)
Information from an APRS
D-PRS positions
D-PRS
positions
APRS
D-PRS positions
10-24
®
network
JA3YUA-Z
PC
® You can check the
server
location on a map site.
