Do the following:
a. Review the settings.
b. To save the configuration for reference, click Save Configuration to File.
c. Do one of the following:
4. If you clicked Next, the Security Check dialog box displays. In the Enter
Password box, type the password. Click OK.
5. The LUN Masking Configuration Status dialog box displays

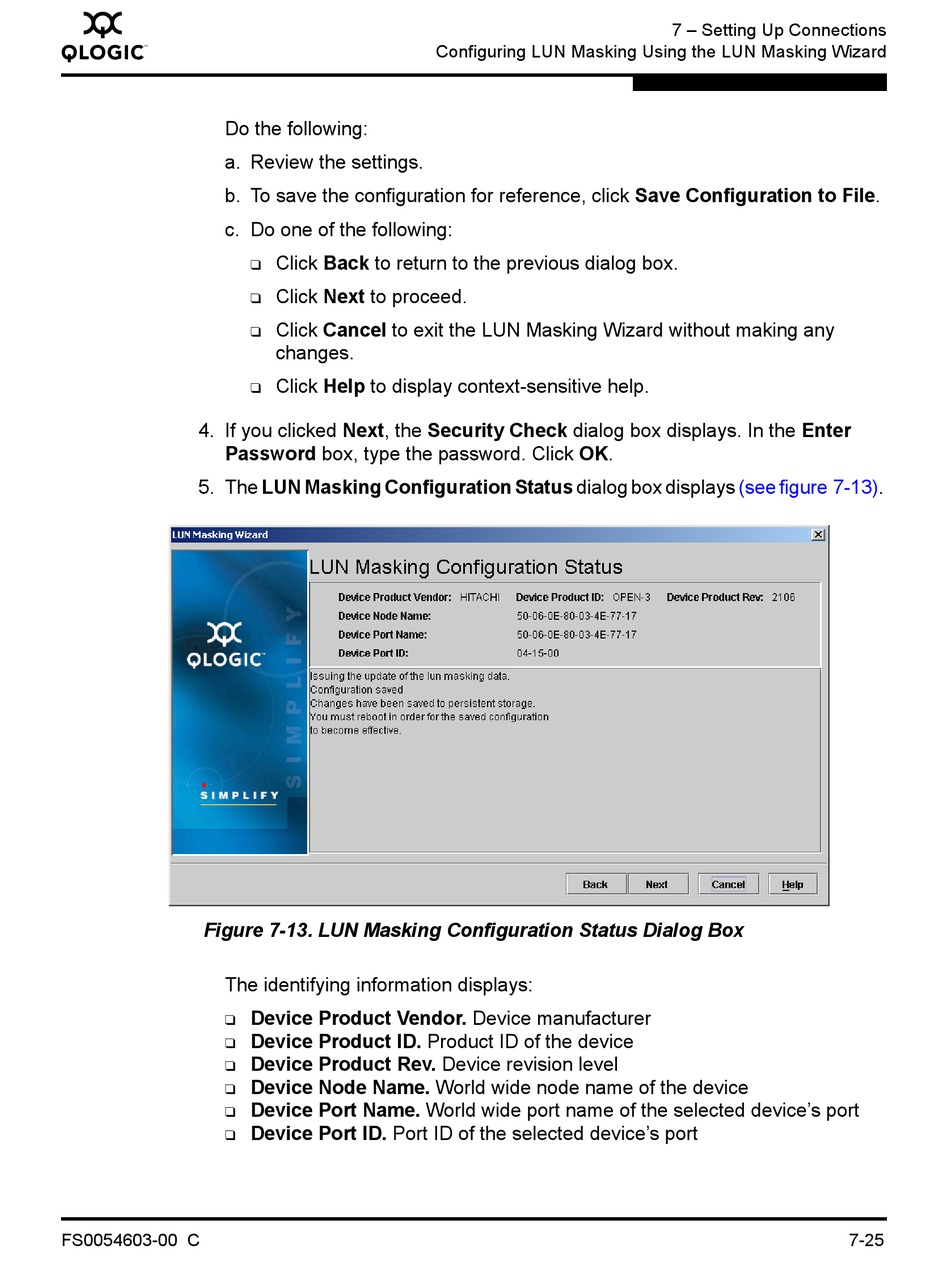

Figure 7-13. LUN Masking Configuration Status Dialog Box
The identifying information displays:
❑
❑
❑
❑
❑
❑
FS0054603-00 C
Click Back to return to the previous dialog box.
❑
Click Next to proceed.
❑
Click Cancel to exit the LUN Masking Wizard without making any
❑
changes.
Click Help to display context-sensitive help.
❑
Device Product Vendor. Device manufacturer
Device Product ID. Product ID of the device
Device Product Rev. Device revision level
Device Node Name. World wide node name of the device
Device Port Name. World wide port name of the selected device's port
Device Port ID. Port ID of the selected device's port
Configuring LUN Masking Using the LUN Masking Wizard
7 – Setting Up Connections
(see figure 7-13).
