7.6.2

Viewing Device Information

Perform the following steps to view device (disk and tape) information from the Fibre
Channel Port Configuration dialog box and LUN Configuration dialog box:
1. To display information about a device, do one of the following:
❑
❑
The Device Information dialog box displays
The following information displays:
❑
❑
❑
❑
❑
❑
❑
❑
❑
❑
❑
2. Click OK to close the Device Information dialog box.
FS0054603-00 C
From the Fibre Channel Port Configuration dialog box, right-click a cell in
the device Node Name, device Port Name, or device Port ID column. From
the pop-up menu, select Device Information.
From the LUN Configuration dialog box, right-click a cell in the LUN,
Enable, or device Port Name column. From the pop-up menu, select Device
Information.

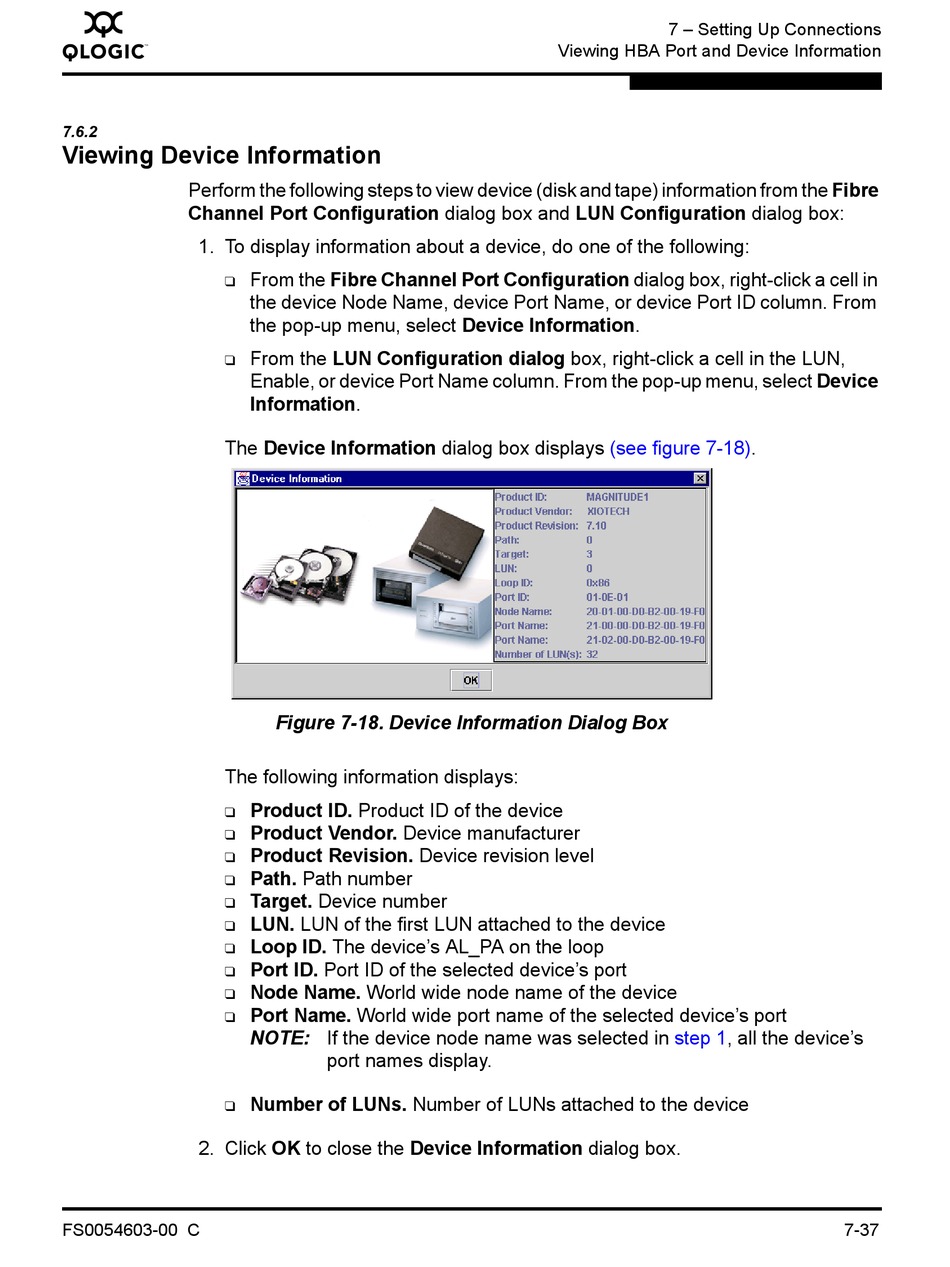

Figure 7-18. Device Information Dialog Box
Product ID. Product ID of the device
Product Vendor. Device manufacturer
Product Revision. Device revision level
Path. Path number
Target. Device number
LUN. LUN of the first LUN attached to the device
Loop ID. The device's AL_PA on the loop
Port ID. Port ID of the selected device's port
Node Name. World wide node name of the device
Port Name. World wide port name of the selected device's port
NOTE: If the device node name was selected in
port names display.
Number of LUNs. Number of LUNs attached to the device
7 – Setting Up Connections
Viewing HBA Port and Device Information
(see figure 7-18).
step 1, all the device's
7-37
