10.4.2

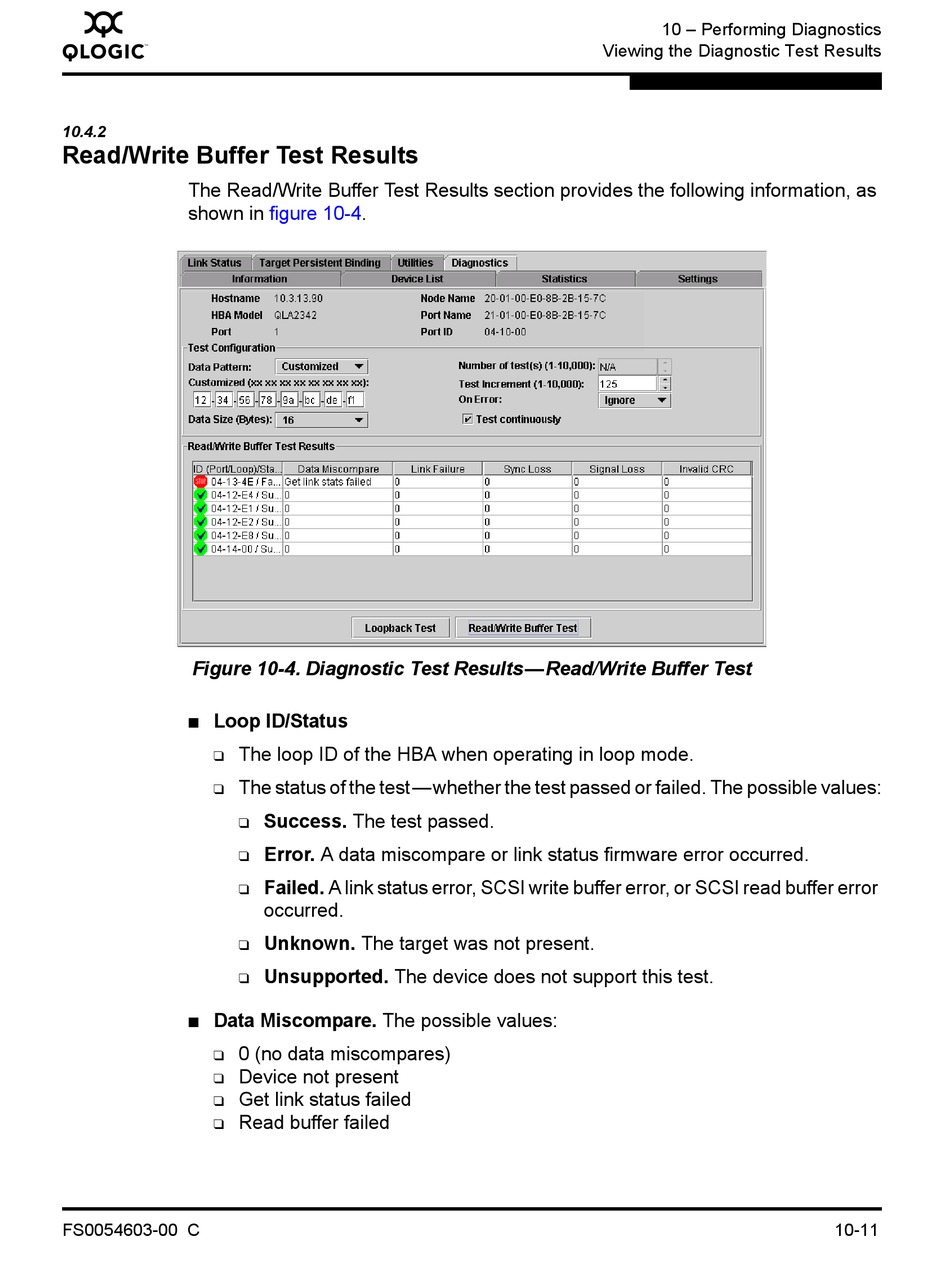

Read/Write Buffer Test Results

The Read/Write Buffer Test Results section provides the following information, as
shown in
Figure 10-4. Diagnostic Test Results—Read/Write Buffer Test
Loop ID/Status
■
The loop ID of the HBA when operating in loop mode.
❑
The status of the test—whether the test passed or failed. The possible values:
❑
❑
❑
❑
❑
❑
Data Miscompare. The possible values:
■
0 (no data miscompares)
❑
Device not present
❑
Get link status failed
❑
Read buffer failed
❑
FS0054603-00 C
figure 10-4.
Success. The test passed.
Error. A data miscompare or link status firmware error occurred.
Failed. A link status error, SCSI write buffer error, or SCSI read buffer error
occurred.
Unknown. The target was not present.
Unsupported. The device does not support this test.
