10 – Performing Diagnostics

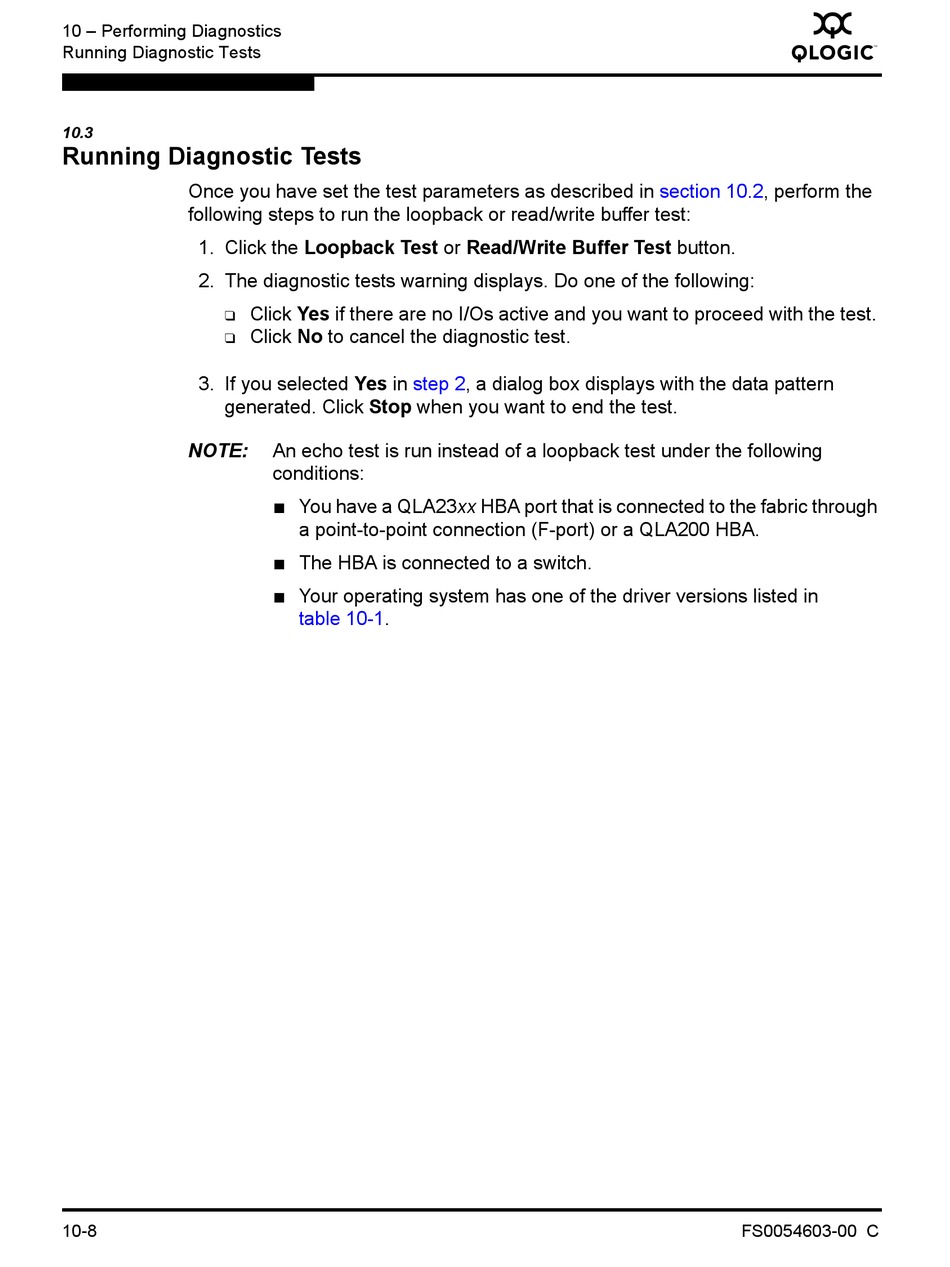

Running Diagnostic Tests

10.3
Running Diagnostic Tests
Once you have set the test parameters as described in
following steps to run the loopback or read/write buffer test:
1. Click the Loopback Test or Read/Write Buffer Test button.
2. The diagnostic tests warning displays. Do one of the following:
❑
❑
3. If you selected Yes in
generated. Click Stop when you want to end the test.
NOTE:
10-8
Click Yes if there are no I/Os active and you want to proceed with the test.
Click No to cancel the diagnostic test.
step
An echo test is run instead of a loopback test under the following
conditions:
You have a QLA23xx HBA port that is connected to the fabric through
■
a point-to-point connection (F-port) or a QLA200 HBA.
The HBA is connected to a switch.
■
Your operating system has one of the driver versions listed in
■
table 10-1.
2, a dialog box displays with the data pattern
Q
section 10.2, perform the
FS0054603-00 C
