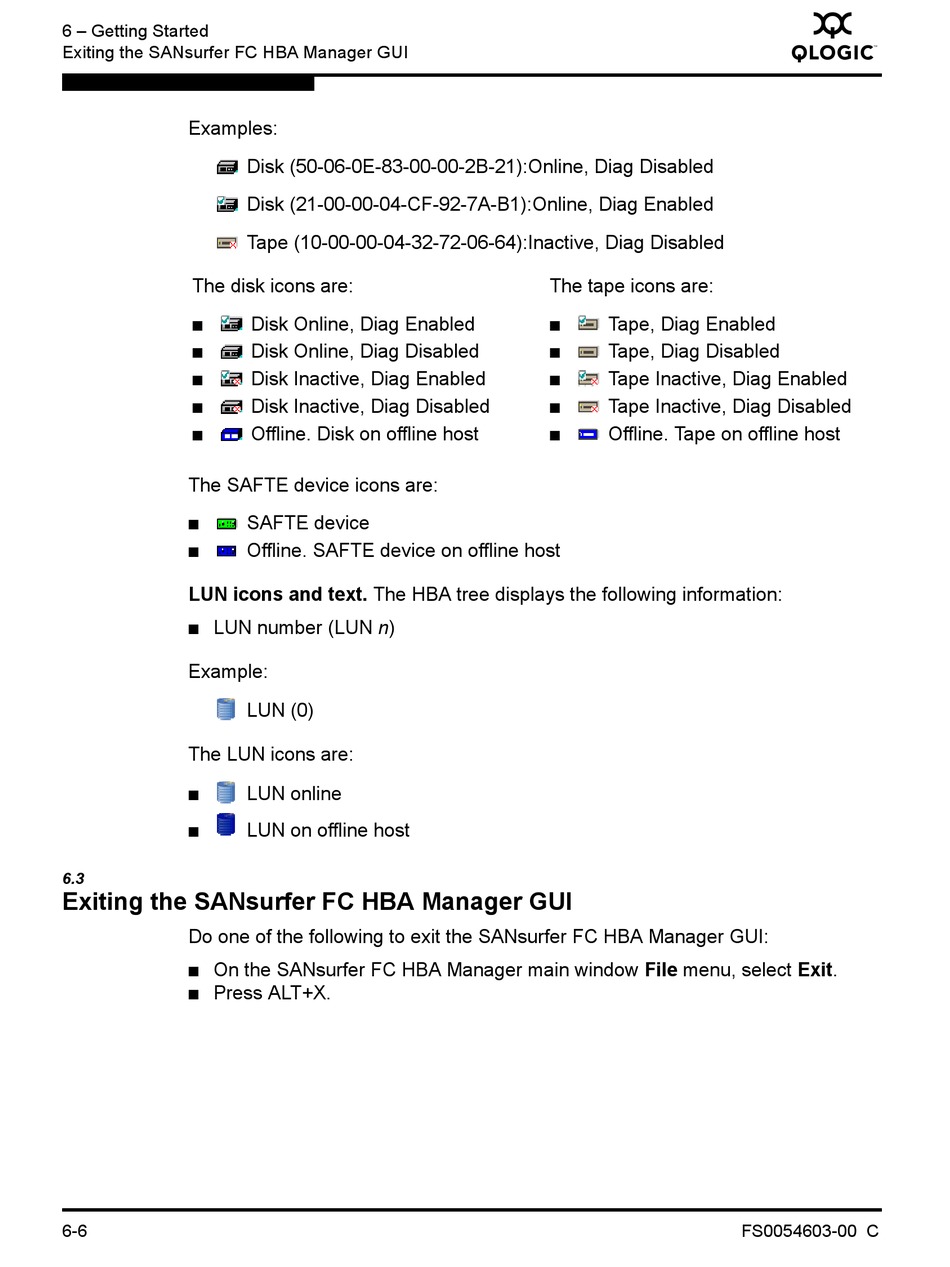

6 – Getting Started

Exiting the SANsurfer FC HBA Manager GUI

Examples:
The disk icons are:
■
■
■
■
■
The SAFTE device icons are:
■
■
LUN icons and text. The HBA tree displays the following information:
LUN number (LUN n)
■
Example:
The LUN icons are:
■
■
6.3
Exiting the SANsurfer FC HBA Manager GUI
Do one of the following to exit the SANsurfer FC HBA Manager GUI:
On the SANsurfer FC HBA Manager main window File menu, select Exit.
■
Press ALT+X.
■
6-6
Disk (50-06-0E-83-00-00-2B-21):Online, Diag Disabled
Disk (21-00-00-04-CF-92-7A-B1):Online, Diag Enabled
Tape (10-00-00-04-32-72-06-64):Inactive, Diag Disabled
Disk Online, Diag Enabled
Disk Online, Diag Disabled
Disk Inactive, Diag Enabled
Disk Inactive, Diag Disabled
Offline. Disk on offline host
SAFTE device
Offline. SAFTE device on offline host
LUN (0)
LUN online
LUN on offline host
The tape icons are:
Tape, Diag Enabled
■
Tape, Diag Disabled
■
Tape Inactive, Diag Enabled
■
Tape Inactive, Diag Disabled
■
Offline. Tape on offline host
■
Q
FS0054603-00 C
