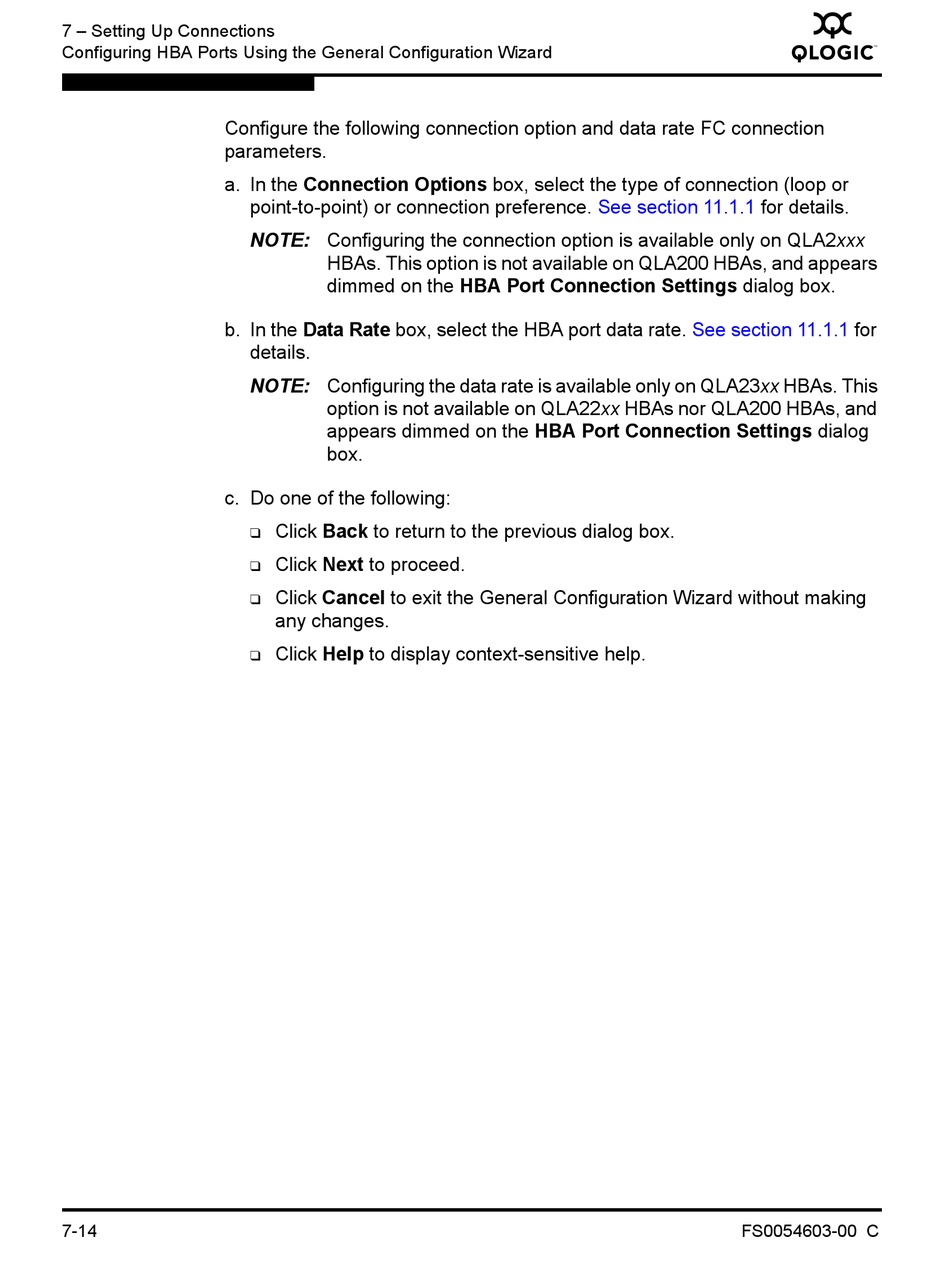

7 – Setting Up Connections
Configuring HBA Ports Using the General Configuration Wizard
Configure the following connection option and data rate FC connection
parameters.
a. In the Connection Options box, select the type of connection (loop or
b. In the Data Rate box, select the HBA port data rate.
c. Do one of the following:
7-14
point-to-point) or connection preference.
NOTE: Configuring the connection option is available only on QLA2xxx
HBAs. This option is not available on QLA200 HBAs, and appears
dimmed on the HBA Port Connection Settings dialog box.
details.
NOTE: Configuring the data rate is available only on QLA23xx HBAs. This
option is not available on QLA22xx HBAs nor QLA200 HBAs, and
appears dimmed on the HBA Port Connection Settings dialog
box.
Click Back to return to the previous dialog box.
❑
Click Next to proceed.
❑
Click Cancel to exit the General Configuration Wizard without making
❑
any changes.
Click Help to display context-sensitive help.
❑
See section 11.1.1 for details.
See section 11.1.1
