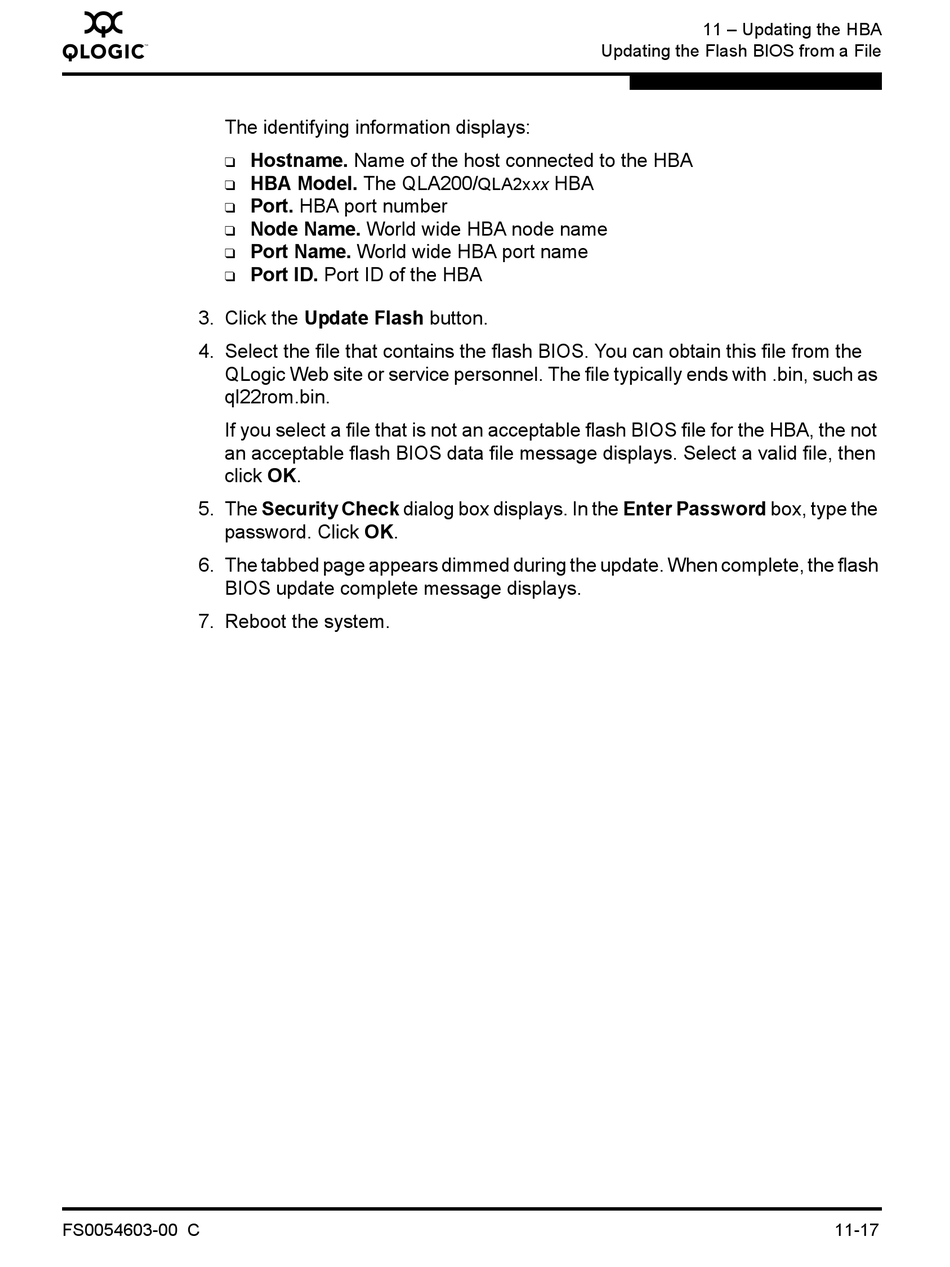

Qlogic SANsurfer FC HBA Manager Application User Manual page 181

Q
The identifying information displays:
❑
❑
❑
❑
❑
❑
3. Click the Update Flash button.
4. Select the file that contains the flash BIOS. You can obtain this file from the
QLogic Web site or service personnel. The file typically ends with .bin, such as
ql22rom.bin.
If you select a file that is not an acceptable flash BIOS file for the HBA, the not
an acceptable flash BIOS data file message displays. Select a valid file, then
click OK.
5. The Security Check dialog box displays. In the Enter Password box, type the
password. Click OK.
6. The tabbed page appears dimmed during the update. When complete, the flash
BIOS update complete message displays.
7. Reboot the system.
FS0054603-00 C
Hostname. Name of the host connected to the HBA
HBA Model. The QLA200/
Port. HBA port number
Node Name. World wide HBA node name
Port Name. World wide HBA port name
Port ID. Port ID of the HBA
Updating the Flash BIOS from a File
HBA
QLA2xxx
11 – Updating the HBA
11-17
