7 – Setting Up Connections
Configuring LUN Masking Using the LUN Masking Wizard
The dialog box provides:
❑
❑
Do the following:
a. From the table, select the Select check box for device that you want to
b. Do one of the following:
2. If you clicked Next, the LUN Masking dialog box displays
7-22
Information about the LUN masking process.
Device information:
Select. Whether the device is selected for LUN masking configuration
❑
Device Info. Device vendor and device product ID
❑
Node Name. World wide HBA node name
❑
Configured. Whether the device is configured
❑
configure. You can select only one device at a time.
NOTE: When you finish, you will be prompted whether you want to
configure another device.
Click Next to proceed.
❑
Click Cancel to exit the LUN Masking Wizard without making any
❑
changes.
Click Help to display context-sensitive help.
❑

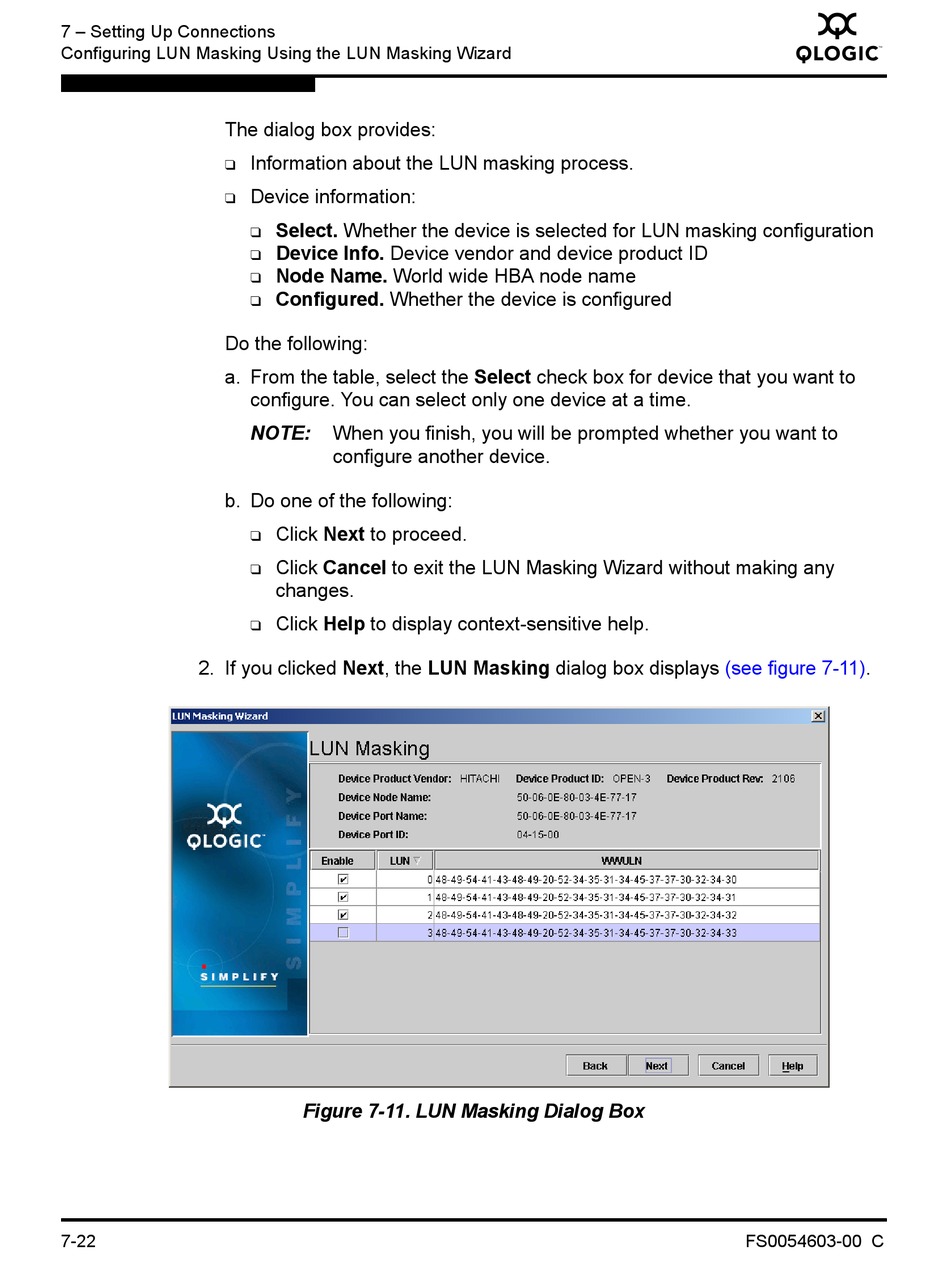

Figure 7-11. LUN Masking Dialog Box
