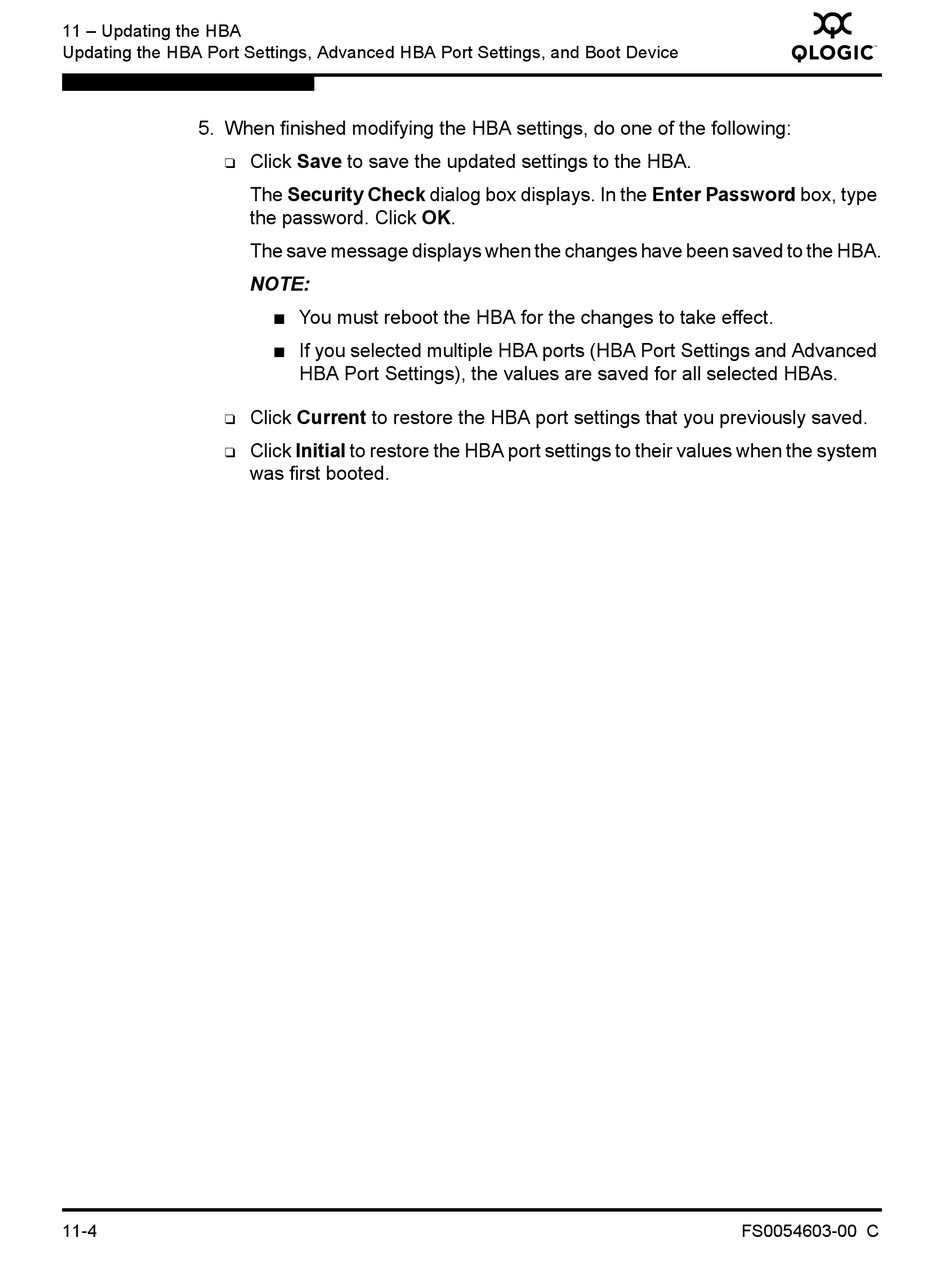

11 – Updating the HBA
Updating the HBA Port Settings, Advanced HBA Port Settings, and Boot Device
5. When finished modifying the HBA settings, do one of the following:
❑
❑
❑
11-4
Click Save to save the updated settings to the HBA.
The Security Check dialog box displays. In the Enter Password box, type
the password. Click OK.
The save message displays when the changes have been saved to the HBA.
NOTE:
You must reboot the HBA for the changes to take effect.
■
If you selected multiple HBA ports (HBA Port Settings and Advanced
■
HBA Port Settings), the values are saved for all selected HBAs.
Click Current to restore the HBA port settings that you previously saved.
Click Initial to restore the HBA port settings to their values when the system
was first booted.
