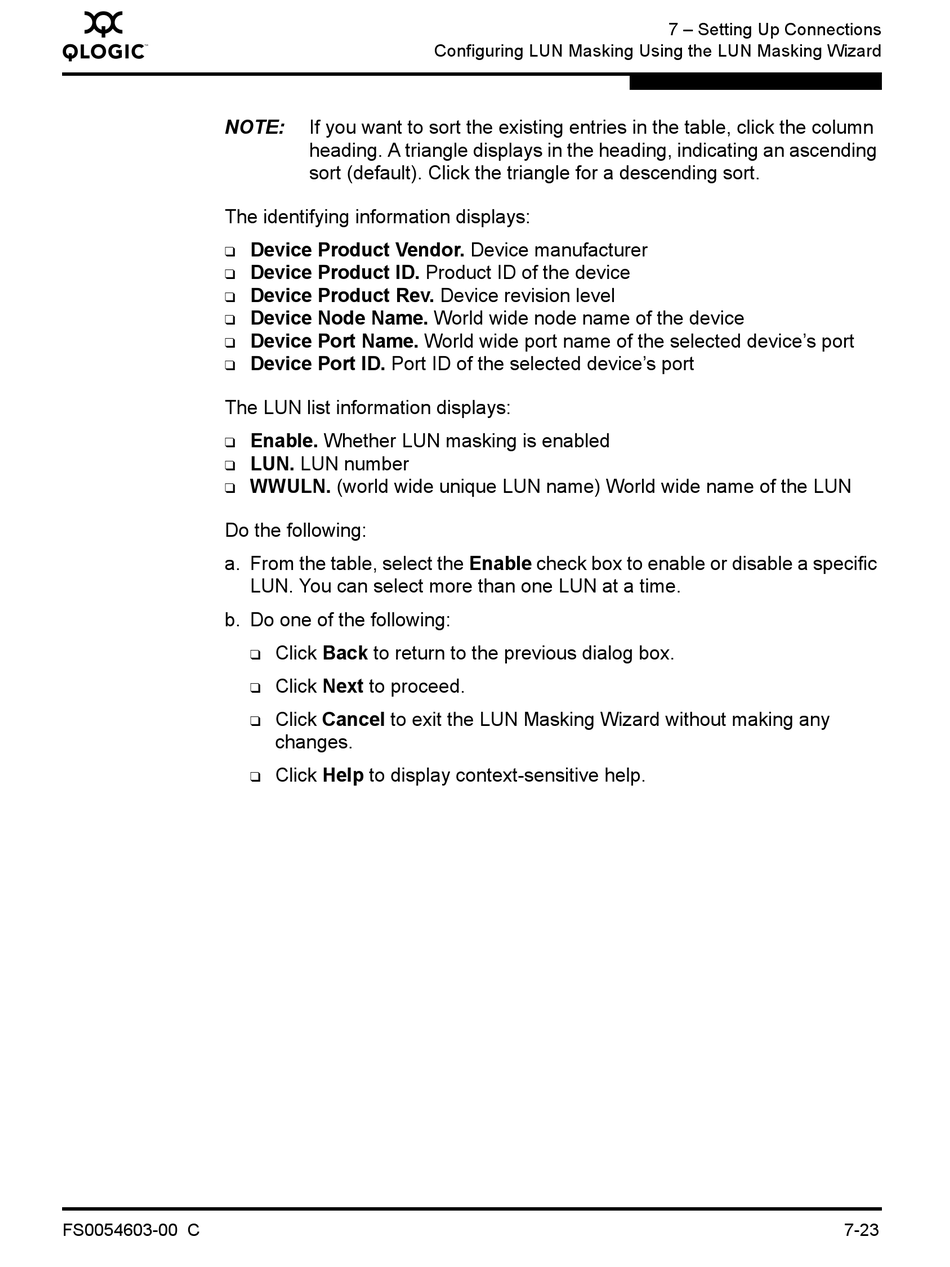

Qlogic SANsurfer FC HBA Manager Application User Manual page 91

Q
NOTE:
The identifying information displays:
❑
❑
❑
❑
❑
❑
The LUN list information displays:
❑
❑
❑
Do the following:
a. From the table, select the Enable check box to enable or disable a specific
b. Do one of the following:
FS0054603-00 C
If you want to sort the existing entries in the table, click the column
heading. A triangle displays in the heading, indicating an ascending
sort (default). Click the triangle for a descending sort.
Device Product Vendor. Device manufacturer
Device Product ID. Product ID of the device
Device Product Rev. Device revision level
Device Node Name. World wide node name of the device
Device Port Name. World wide port name of the selected device's port
Device Port ID. Port ID of the selected device's port
Enable. Whether LUN masking is enabled
LUN. LUN number
WWULN. (world wide unique LUN name) World wide name of the LUN
LUN. You can select more than one LUN at a time.
Click Back to return to the previous dialog box.
❑
Click Next to proceed.
❑
Click Cancel to exit the LUN Masking Wizard without making any
❑
changes.
Click Help to display context-sensitive help.
❑
Configuring LUN Masking Using the LUN Masking Wizard
7 – Setting Up Connections
7-23
