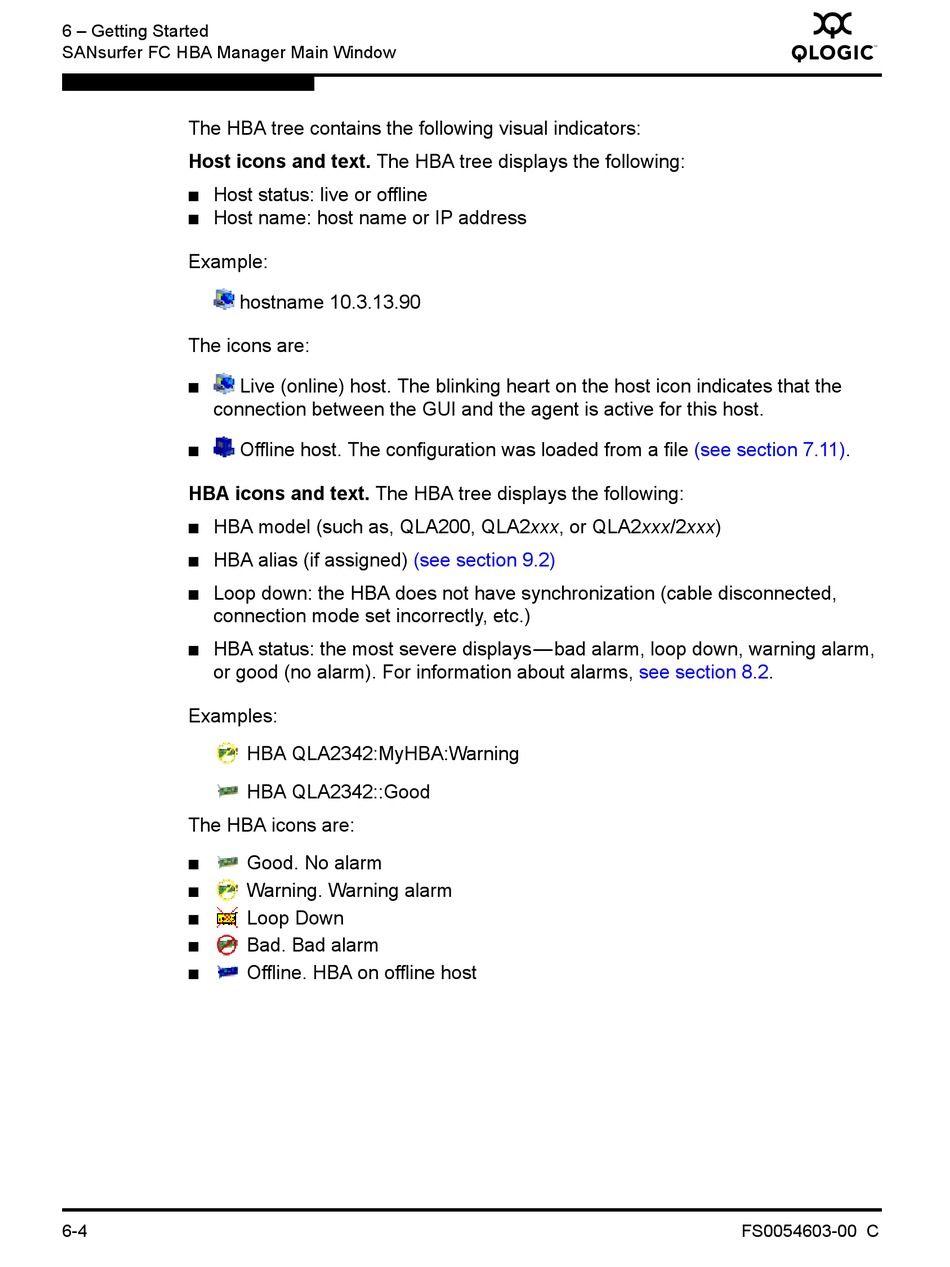

6 – Getting Started
SANsurfer FC HBA Manager Main Window
The HBA tree contains the following visual indicators:
Host icons and text. The HBA tree displays the following:
Host status: live or offline
■
Host name: host name or IP address
■
Example:
hostname 10.3.13.90
The icons are:
Live (online) host. The blinking heart on the host icon indicates that the
■
connection between the GUI and the agent is active for this host.
Offline host. The configuration was loaded from a file
■
HBA icons and text. The HBA tree displays the following:
HBA model (such as, QLA200, QLA2xxx, or QLA2xxx/2xxx)
■
HBA alias (if assigned)
■
Loop down: the HBA does not have synchronization (cable disconnected,
■
connection mode set incorrectly, etc.)
HBA status: the most severe displays—bad alarm, loop down, warning alarm,
■
or good (no alarm). For information about alarms,
Examples:
The HBA icons are:
■
■
■
■
■
6-4
(see section 9.2)
HBA QLA2342:MyHBA:Warning
HBA QLA2342::Good
Good. No alarm
Warning. Warning alarm
Loop Down
Bad. Bad alarm
Offline. HBA on offline host
Q
(see section 7.11).
see section 8.2.
FS0054603-00 C
