7 – Setting Up Connections
Configuring LUN Masking Using the LUN Masking Wizard
3. If you clicked Next, the Confirm Changes dialog box displays
The identifying information displays:
❑
❑
❑
❑
❑
❑
The LUN Masking Settings based on the changes display:
❑
❑
❑
❑
7-24

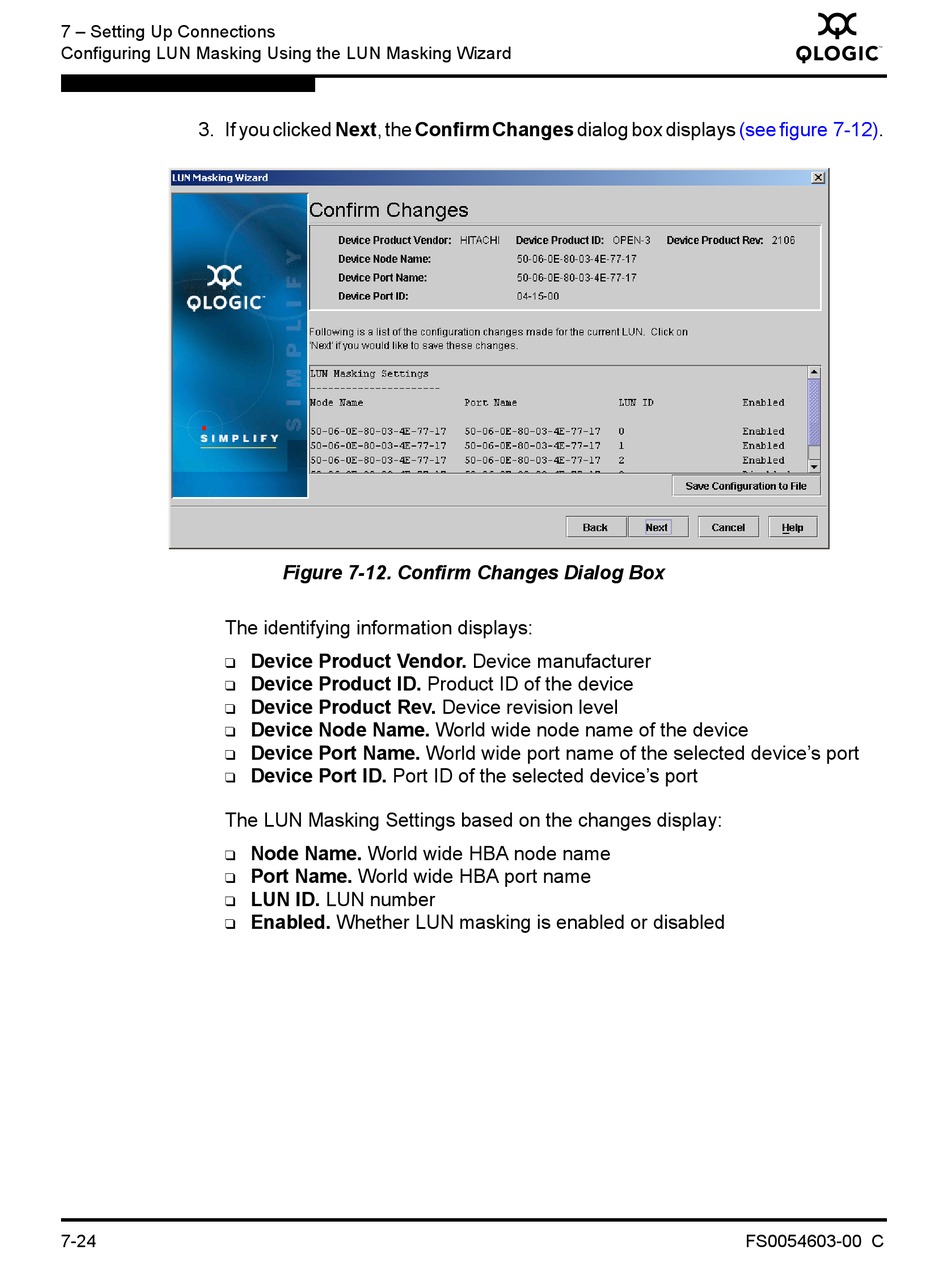

Figure 7-12. Confirm Changes Dialog Box
Device Product Vendor. Device manufacturer
Device Product ID. Product ID of the device
Device Product Rev. Device revision level
Device Node Name. World wide node name of the device
Device Port Name. World wide port name of the selected device's port
Device Port ID. Port ID of the selected device's port
Node Name. World wide HBA node name
Port Name. World wide HBA port name
LUN ID. LUN number
Enabled. Whether LUN masking is enabled or disabled
Q
(see figure
7-12).
FS0054603-00 C
