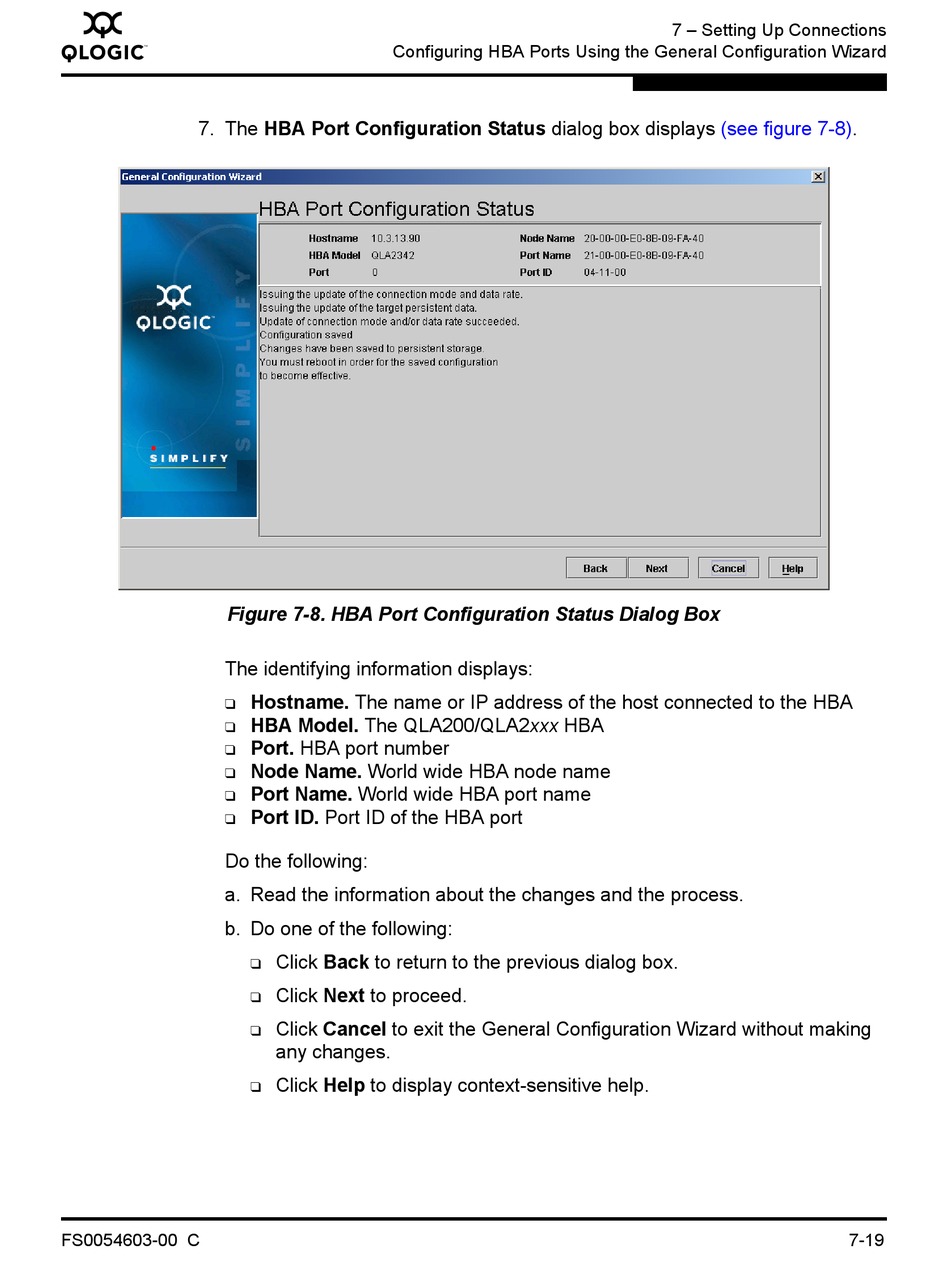

7. The HBA Port Configuration Status dialog box displays
Figure 7-8. HBA Port Configuration Status Dialog Box
The identifying information displays:
❑
❑
❑
❑
❑
❑
Do the following:
a. Read the information about the changes and the process.
b. Do one of the following:
FS0054603-00 C
Configuring HBA Ports Using the General Configuration Wizard
Hostname. The name or IP address of the host connected to the HBA
HBA Model. The QLA200/QLA2xxx HBA
Port. HBA port number
Node Name. World wide HBA node name
Port Name. World wide HBA port name
Port ID. Port ID of the HBA port
Click Back to return to the previous dialog box.
❑
Click Next to proceed.
❑
Click Cancel to exit the General Configuration Wizard without making
❑
any changes.
Click Help to display context-sensitive help.
❑
7 – Setting Up Connections
(see figure 7-8).
7-19
