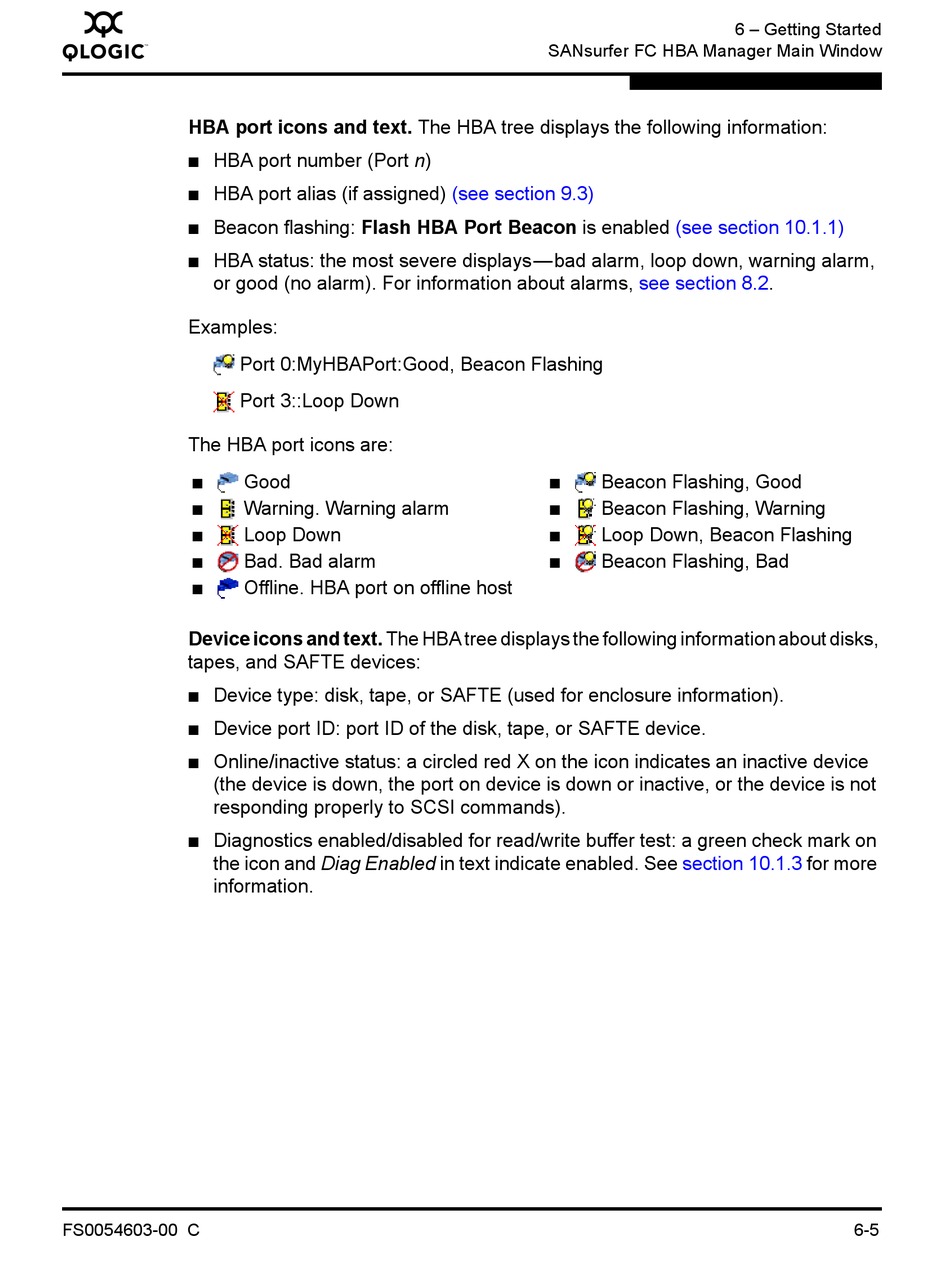

HBA port icons and text. The HBA tree displays the following information:
HBA port number (Port n)
■
HBA port alias (if assigned)
■
Beacon flashing: Flash HBA Port Beacon is enabled
■
HBA status: the most severe displays—bad alarm, loop down, warning alarm,
■
or good (no alarm). For information about alarms,
Examples:
Port 0:MyHBAPort:Good, Beacon Flashing
Port 3::Loop Down
The HBA port icons are:
■
■
■
■
■
Device icons and text. The HBA tree displays the following information about disks,
tapes, and SAFTE devices:
Device type: disk, tape, or SAFTE (used for enclosure information).
■
Device port ID: port ID of the disk, tape, or SAFTE device.
■
Online/inactive status: a circled red X on the icon indicates an inactive device
■
(the device is down, the port on device is down or inactive, or the device is not
responding properly to SCSI commands).
Diagnostics enabled/disabled for read/write buffer test: a green check mark on
■
the icon and Diag Enabled in text indicate enabled. See
information.
FS0054603-00 C
Good
Warning. Warning alarm
Loop Down
Bad. Bad alarm
Offline. HBA port on offline host
SANsurfer FC HBA Manager Main Window
(see section 9.3)
Beacon Flashing, Good
■
Beacon Flashing, Warning
■
Loop Down, Beacon Flashing
■
Beacon Flashing, Bad
■
6 – Getting Started
(see section 10.1.1)
see section 8.2.
section 10.1.3 for more
