10 – Performing Diagnostics
Viewing the Diagnostic Test Results
10.4.1

Loopback Test Results

The Loopback Test Results section provides the following information:
Tests Status. Whether the test passed or failed. The possible values:
■
Success. The test passed.
❑
Error. CRC, disparity, or frame length errors occurred.
❑
Failed. An error occurred when attempting to issue a command.
❑
Loop down. The loop is down.
❑
CRC Error. Number of CRC errors
■
Disparity Error. Number of disparity errors
■
Frame Length Error. Number of frame length errors
■
Figure 10-2
that the loopback test failed.

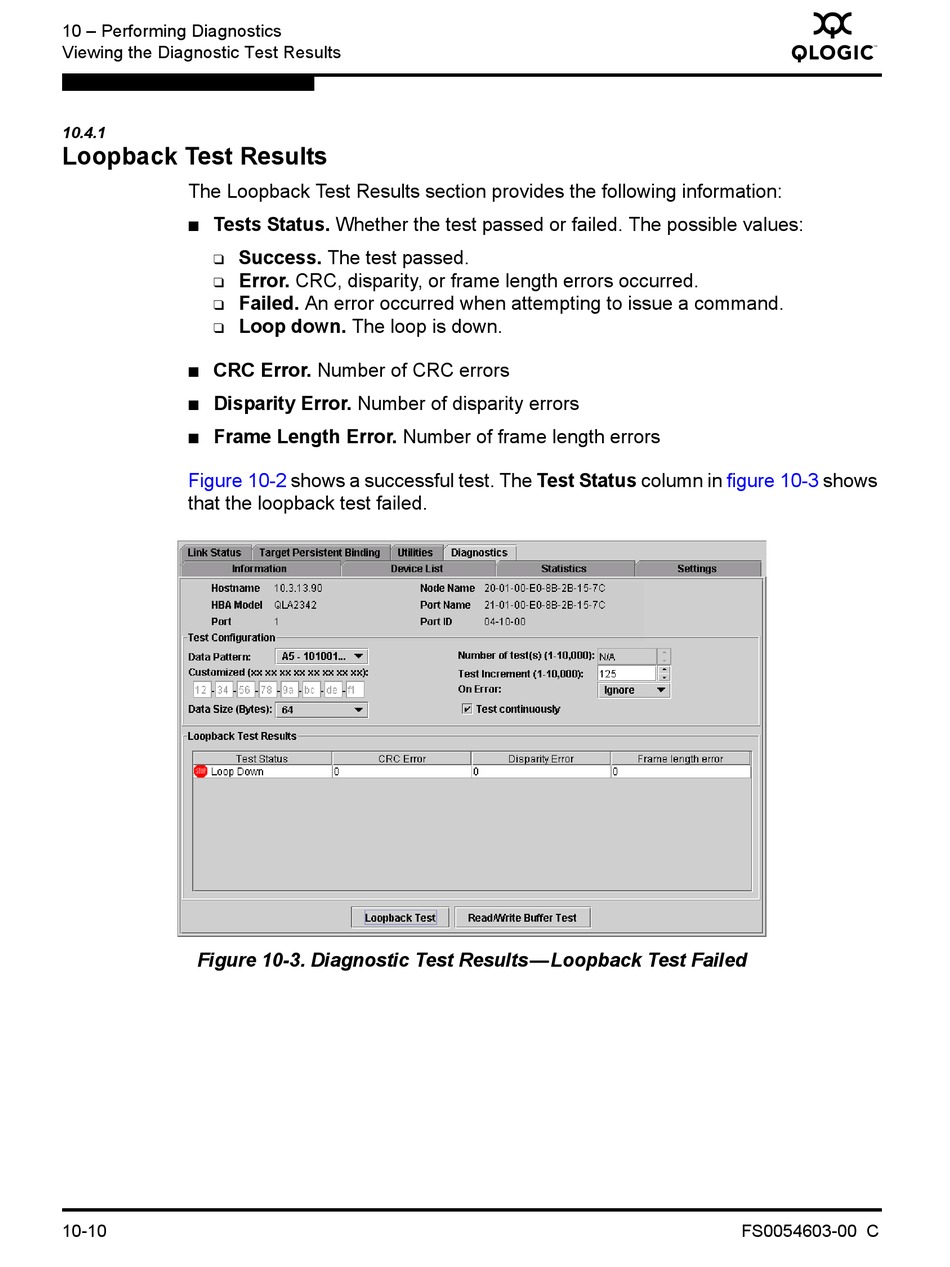

Figure 10-3. Diagnostic Test Results—Loopback Test Failed
10-10
shows a successful test. The Test Status column in
Q
figure 10-3 shows
FS0054603-00 C
