Alarm Log Dialog Box - Qlogic SANsurfer FC HBA Manager Application User Manual

8 – Monitoring the Connections
Viewing and Managing the Alarm Log
The Alarm Log dialog box displays
NOTE:
The Alarm Log dialog box includes the following information about each alarm:
❑
❑
❑
❑
❑
❑
8-8

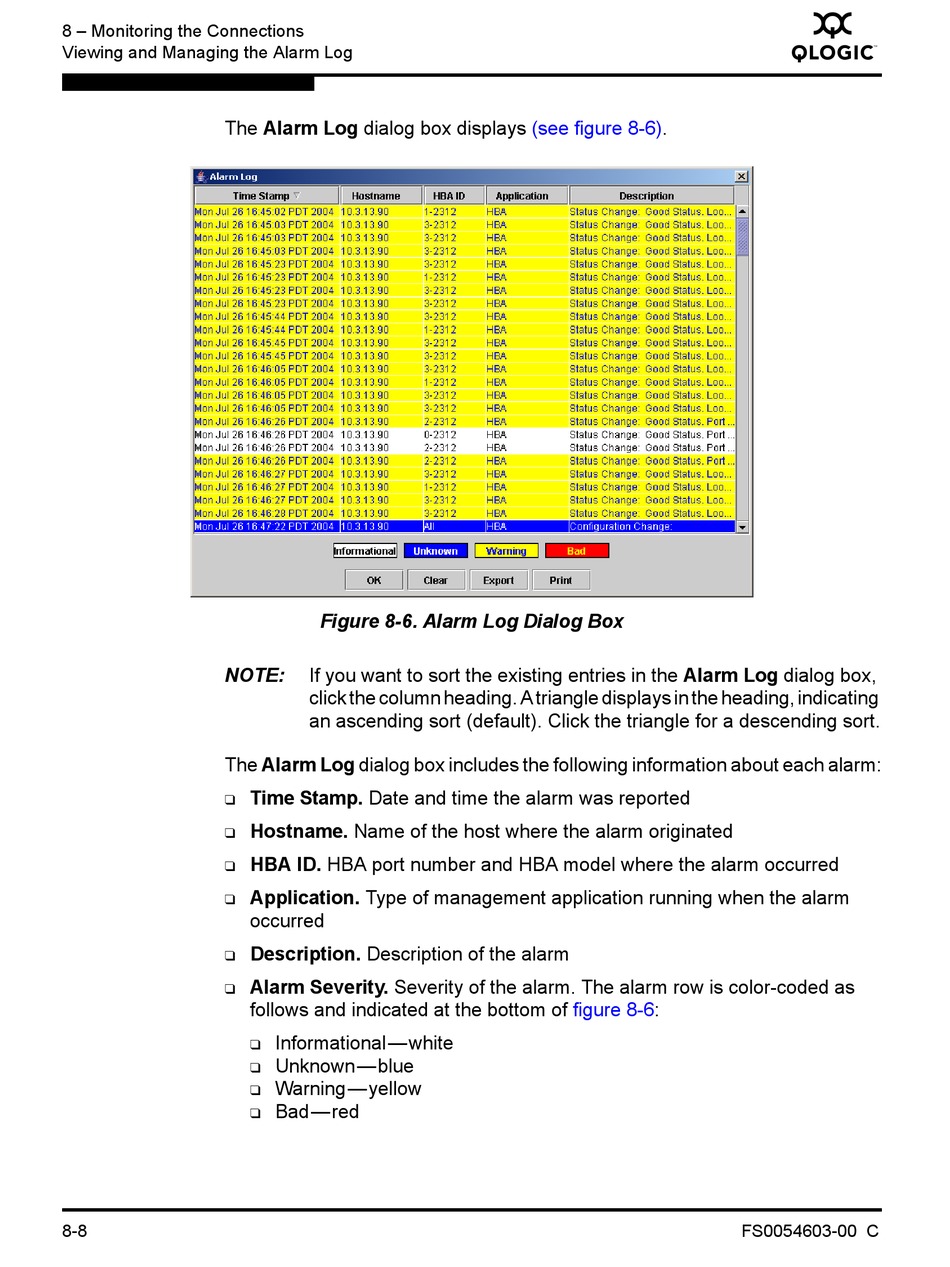

Figure 8-6. Alarm Log Dialog Box
If you want to sort the existing entries in the Alarm Log dialog box,
click the column heading. A triangle displays in the heading, indicating
an ascending sort (default). Click the triangle for a descending sort.
Time Stamp. Date and time the alarm was reported
Hostname. Name of the host where the alarm originated
HBA ID. HBA port number and HBA model where the alarm occurred
Application. Type of management application running when the alarm
occurred
Description. Description of the alarm
Alarm Severity. Severity of the alarm. The alarm row is color-coded as
follows and indicated at the bottom of
Informational—white
❑
Unknown—blue
❑
Warning—yellow
❑
Bad—red
❑
(see figure 8-6).
figure 8-6:
Q
FS0054603-00 C
