Enabling And Disabling Lun Masking On Individual Luns; Viewing Hba Port And Device Information; Viewing Hba Port Information; Hba Port Information Dialog Box - Qlogic SANsurfer FC HBA Manager Application User Manual

Q
7.5.1.2

Enabling and Disabling LUN Masking on Individual LUNs

NOTE:
You can configure LUN masking for a specific LUN as enabled or disabled. In the
LUN Configuration dialog box Enable column, do one of the following:
Select the Enable check box to enable LUN masking.
■
Clear the Enable check box to disable LUN masking.
■
7.6

Viewing HBA Port and Device Information

From the Fibre Channel Port Configuration dialog box, you can view HBA port
information. You can view device (disk and tape) information from the Fibre
Channel Port Configuration and LUN Configuration dialog boxes.
NOTE:
7.6.1

Viewing HBA Port Information

Perform the following steps to view HBA port information from the Fibre Channel
Port Configuration dialog box:
1. Right-click in the HBA Port n column heading. From the pop-up menu, select
HBA Port Information. The HBA Port Information dialog box displays
figure
FS0054603-00 C
You can also use the LUN Masking Wizard to enable and disable LUN
masking on individual LUNs
See section 9 for information about viewing host, HBA, HBA port, device
(disk and tape), and LUN information from the tabbed pages.
7-17).

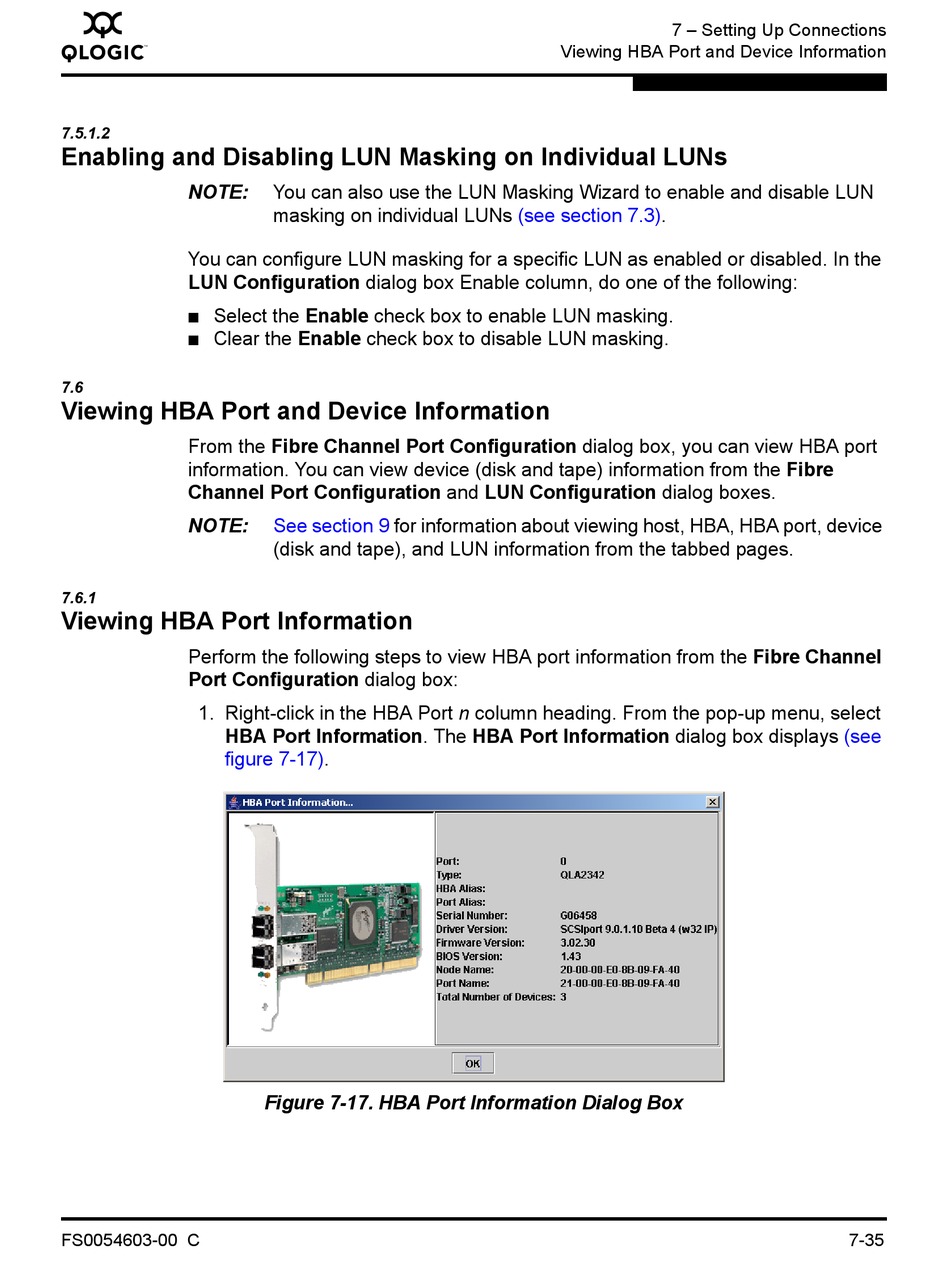

Figure 7-17. HBA Port Information Dialog Box
7 – Setting Up Connections
Viewing HBA Port and Device Information
(see section 7.3).
(see
7-35
