Viewing Topology Information

Perform the following steps to view the topology for a host:
1. In the SANsurfer FC HBA Manager main window HBA tree, select the host.
2. Select the Topology tab. The Topology tabbed page displays
The following information displays:
❑
The Topology section displays a graphical representation of the selected host
that includes the following:
❑
❑
NOTE:
FS0054603-00 C
9 – Displaying Host, HBA, HBA Port, Device, and LUN Information

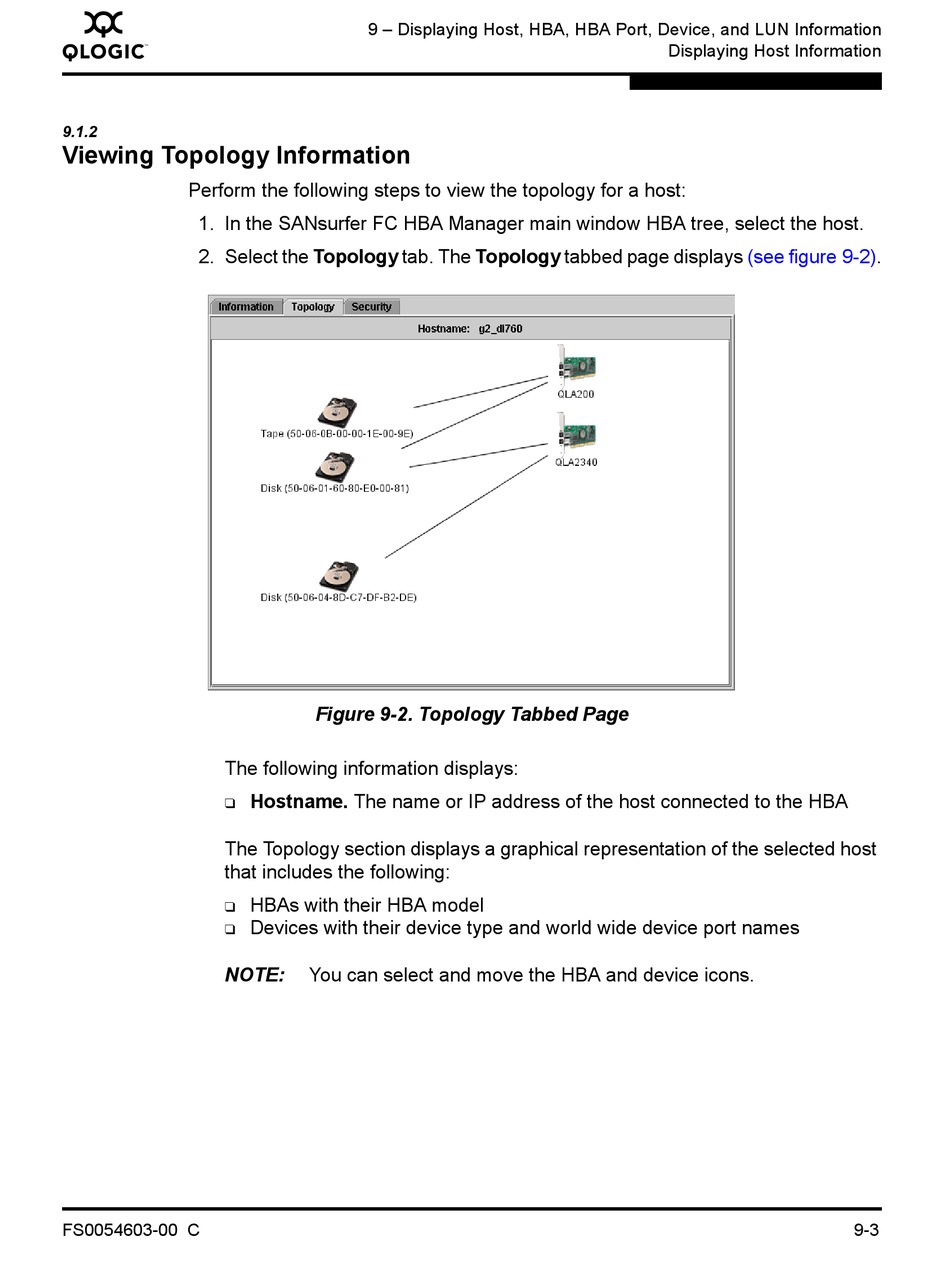

Figure 9-2. Topology Tabbed Page
Hostname. The name or IP address of the host connected to the HBA
HBAs with their HBA model
Devices with their device type and world wide device port names
You can select and move the HBA and device icons.
Displaying Host Information
(see figure 9-2).
9-3
