11 – Updating the HBA
Updating the Flash BIOS from a File
Perform the following steps to update the flash BIOS:
1. In the SANsurfer FC HBA Manager main window HBA tree, select the HBA port.
If you want to configure multiple HBA ports with the same settings, hold the
CTRL key while selecting multiple HBA ports. The HBAs must be in the same
series, for example: QLA231x HBAs, QLA234x HBAs, or QLA22xx HBAs.
NOTE:
2. Click the Utilities tab. The Utilities tabbed page displays
NOTE:
11-16
Only the Settings (HBA Port Settings and Advanced HBA Port
Settings) and Utilities tabbed pages can be configured for multiple
HBA ports; therefore, the remaining tabbed pages do not display
when multiple HBA ports are selected.

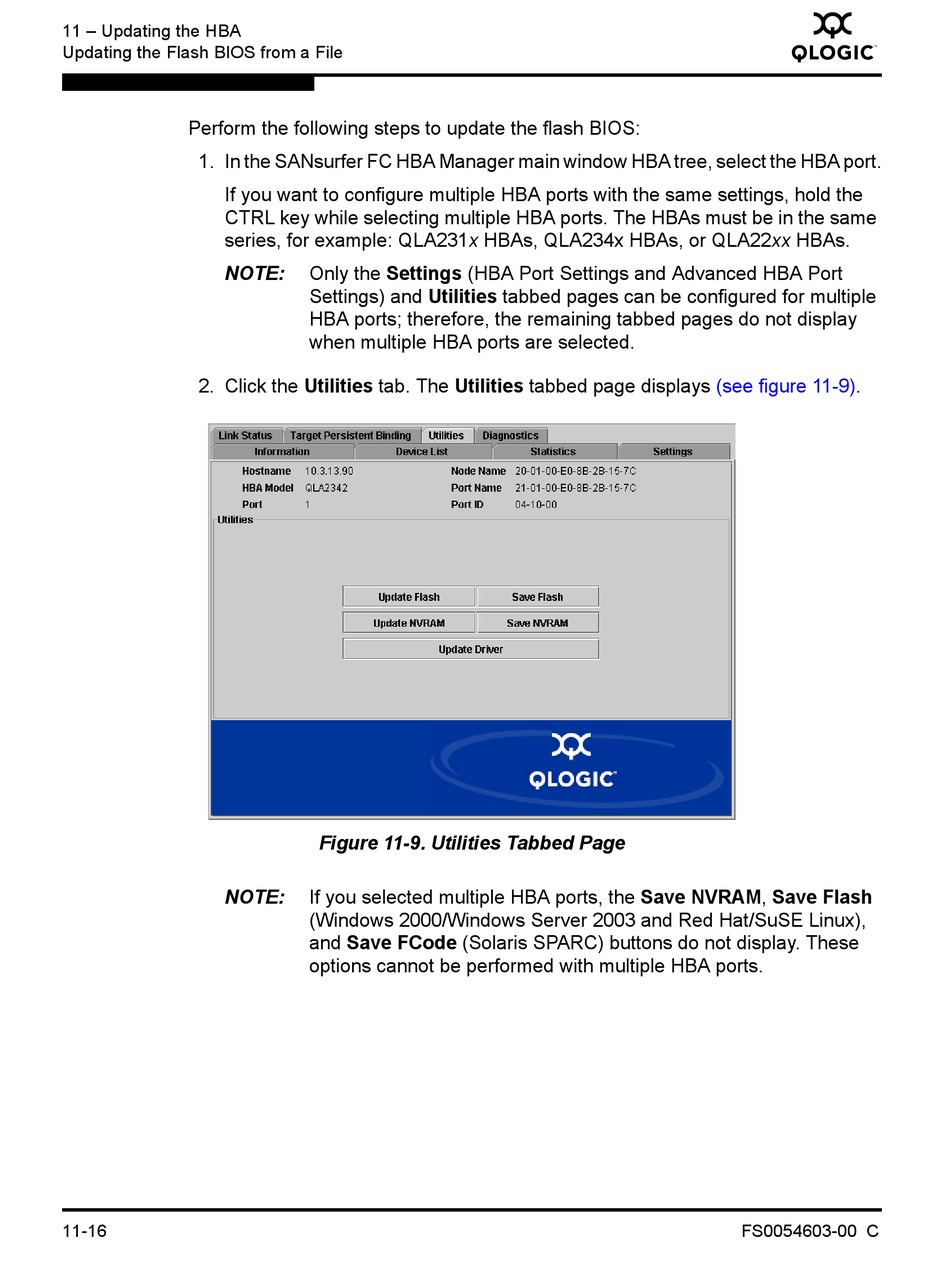

Figure 11-9. Utilities Tabbed Page
If you selected multiple HBA ports, the Save NVRAM, Save Flash
(Windows 2000/Windows Server 2003 and Red Hat/SuSE Linux),
and Save FCode (Solaris SPARC) buttons do not display. These
options cannot be performed with multiple HBA ports.
Q
(see figure 11-9).
FS0054603-00 C
