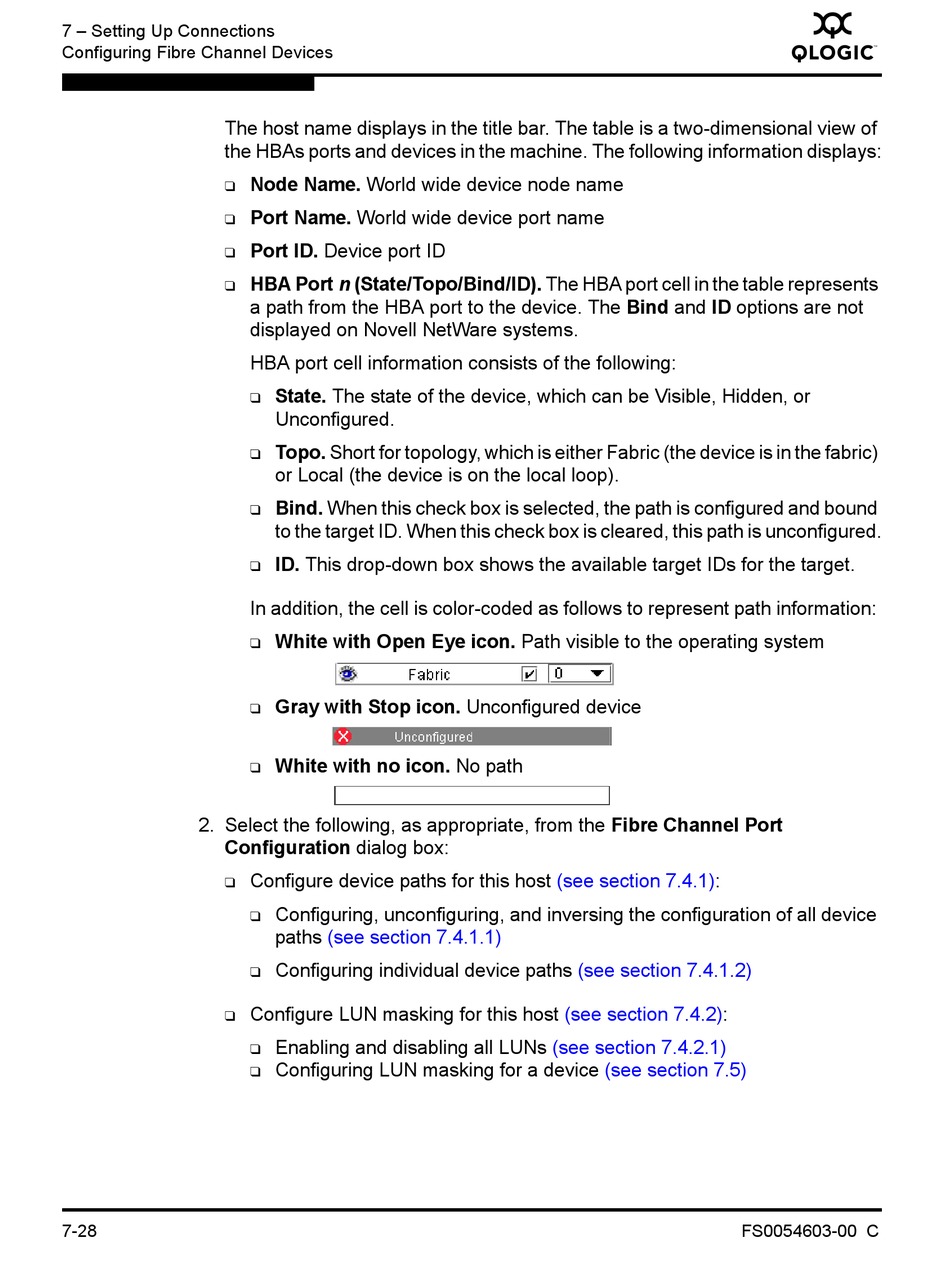

7 – Setting Up Connections
Configuring Fibre Channel Devices
The host name displays in the title bar. The table is a two-dimensional view of
the HBAs ports and devices in the machine. The following information displays:
2. Select the following, as appropriate, from the Fibre Channel Port
Configuration dialog box:
7-28
Node Name. World wide device node name
Port Name. World wide device port name
Port ID. Device port ID
HBA Port n (State/Topo/Bind/ID). The HBA port cell in the table represents
a path from the HBA port to the device. The Bind and ID options are not
displayed on Novell NetWare systems.
HBA port cell information consists of the following:
State. The state of the device, which can be Visible, Hidden, or
Unconfigured.
Topo. Short for topology, which is either Fabric (the device is in the fabric)
or Local (the device is on the local loop).
Bind. When this check box is selected, the path is configured and bound
to the target ID. When this check box is cleared, this path is unconfigured.
ID. This drop-down box shows the available target IDs for the target.
In addition, the cell is color-coded as follows to represent path information:
White with Open Eye icon. Path visible to the operating system
Gray with Stop icon. Unconfigured device
White with no icon. No path
Configure device paths for this host
Configuring, unconfiguring, and inversing the configuration of all device
paths
(see section 7.4.1.1)
Configuring individual device paths
Configure LUN masking for this host
Enabling and disabling all LUNs
Configuring LUN masking for a device
(see section
7.4.1):
(see section 7.4.1.2)
(see section
7.4.2):
(see section 7.4.2.1)
(see section 7.5)
Q
FS0054603-00 C
