11 – Updating the HBA
Updating the HBA Port Settings, Advanced HBA Port Settings, and Boot Device
The Settings tabbed page displays parameters that are saved in NVRAM. These
settings configure Fibre Channel devices and the QLA200/QLA2xxx HBA to which
they are attached

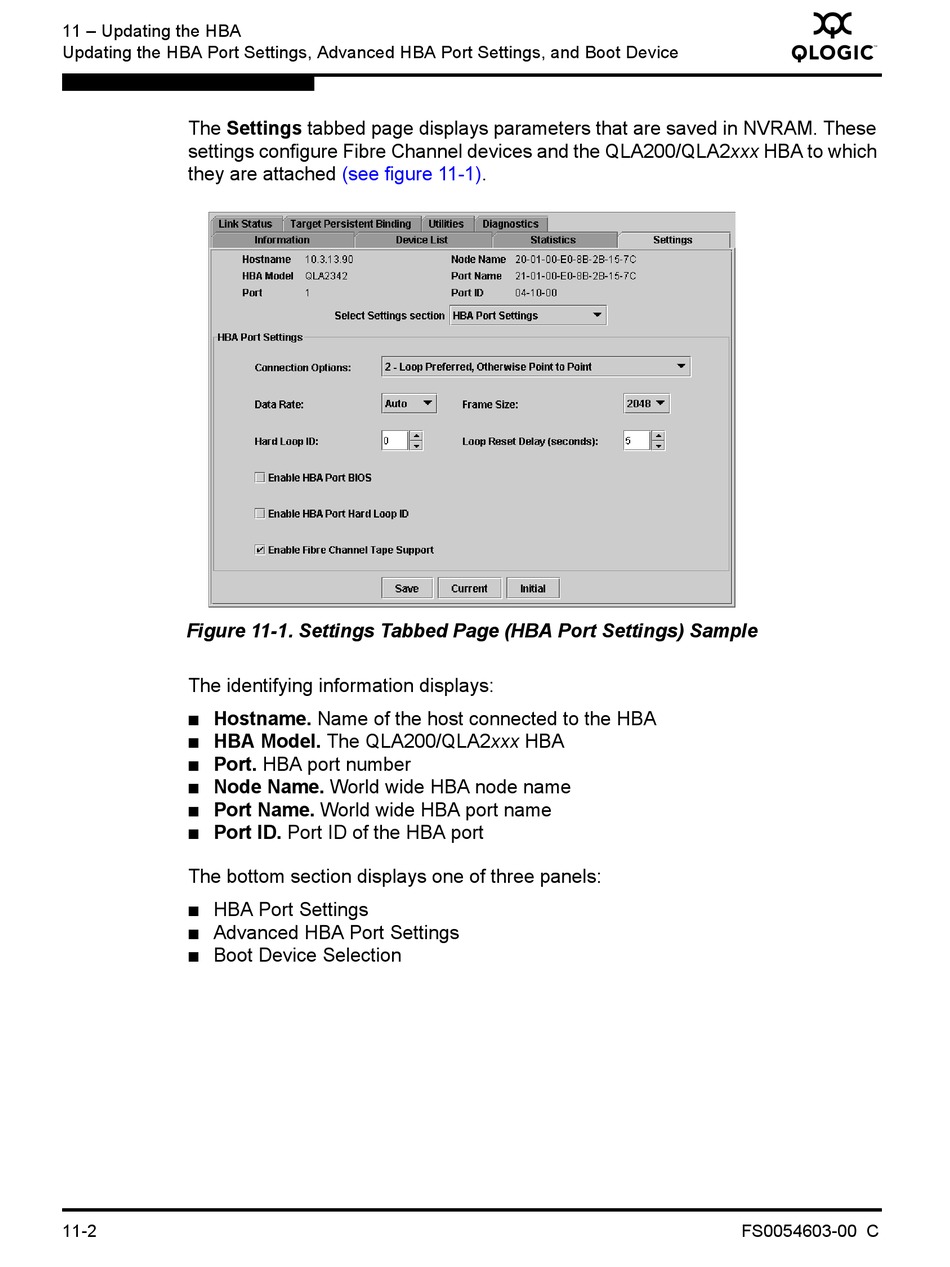

Figure 11-1. Settings Tabbed Page (HBA Port Settings) Sample
The identifying information displays:
Hostname. Name of the host connected to the HBA
■
HBA Model. The QLA200/QLA2xxx HBA
■
Port. HBA port number
■
Node Name. World wide HBA node name
■
Port Name. World wide HBA port name
■
Port ID. Port ID of the HBA port
■
The bottom section displays one of three panels:
HBA Port Settings
■
Advanced HBA Port Settings
■
Boot Device Selection
■
11-2
(see figure 11-1).
Q
FS0054603-00 C
