Auto Connecting To All Hosts; Connect To Host Dialog Box - Qlogic SANsurfer FC HBA Manager Application User Manual

Q
The Connect to Host dialog box displays
2. In the Enter Hostname or IP Address box, do one of the following:
❑
❑
3. Do one of the following:
❑
❑
❑
7.1.2

Auto Connecting to All Hosts

The auto-connect feature dynamically connects your machine to all the hosts in the
network that meet the following conditions:
The SANsurfer FC HBA Manager agent on the host is running.
■
The host is on the same class C IP address subnet as your machine.
■
FS0054603-00 C

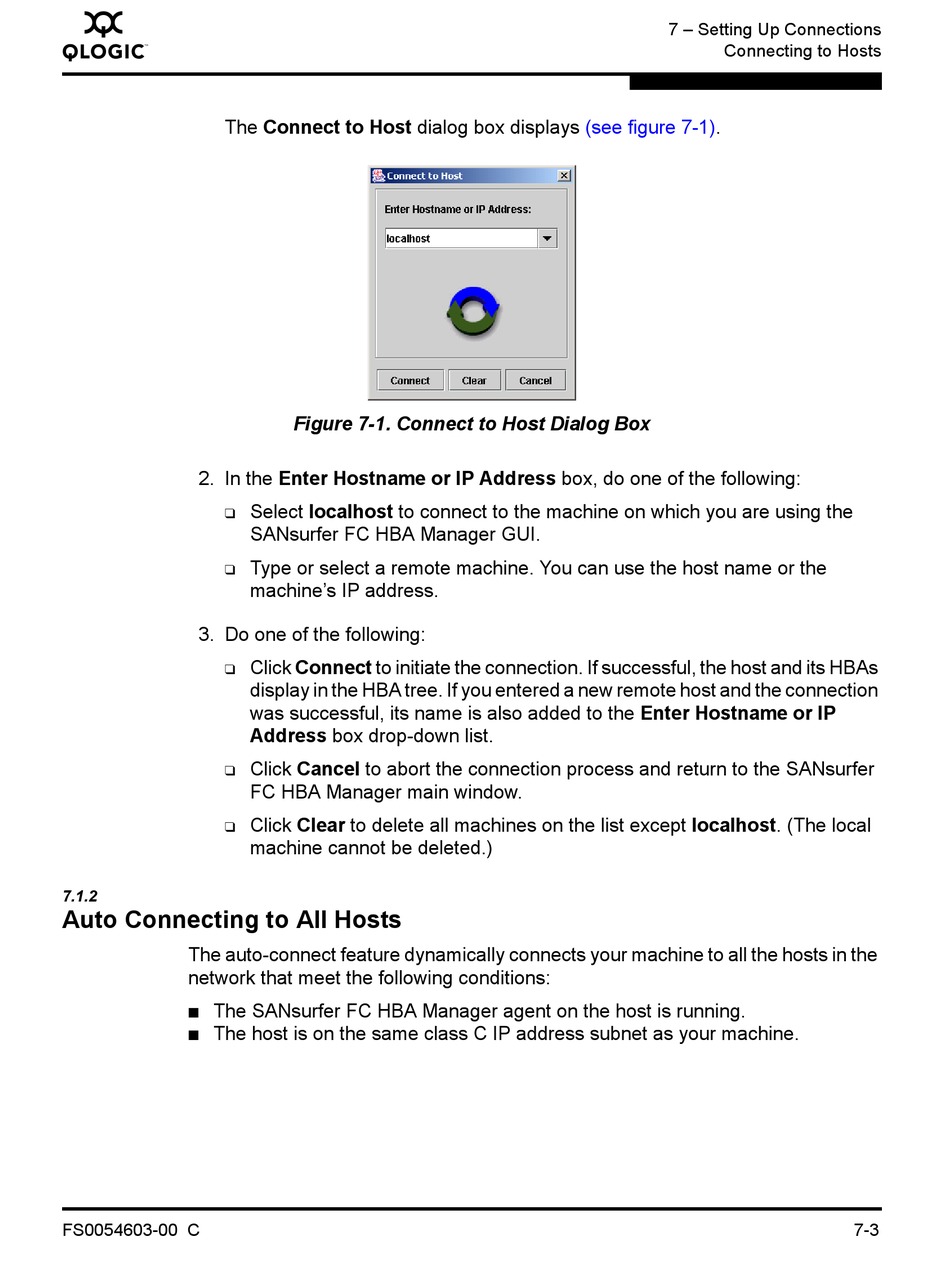

Figure 7-1. Connect to Host Dialog Box
Select localhost to connect to the machine on which you are using the
SANsurfer FC HBA Manager GUI.
Type or select a remote machine. You can use the host name or the
machine's IP address.
Click Connect to initiate the connection. If successful, the host and its HBAs
display in the HBA tree. If you entered a new remote host and the connection
was successful, its name is also added to the Enter Hostname or IP
Address box drop-down list.
Click Cancel to abort the connection process and return to the SANsurfer
FC HBA Manager main window.
Click Clear to delete all machines on the list except localhost. (The local
machine cannot be deleted.)
7 – Setting Up Connections
Connecting to Hosts
(see figure 7-1).
7-3
