Choose Product Components Dialog Box (Sample) - Qlogic SANsurfer FC HBA Manager Application User Manual

Q
❑
❑
❑

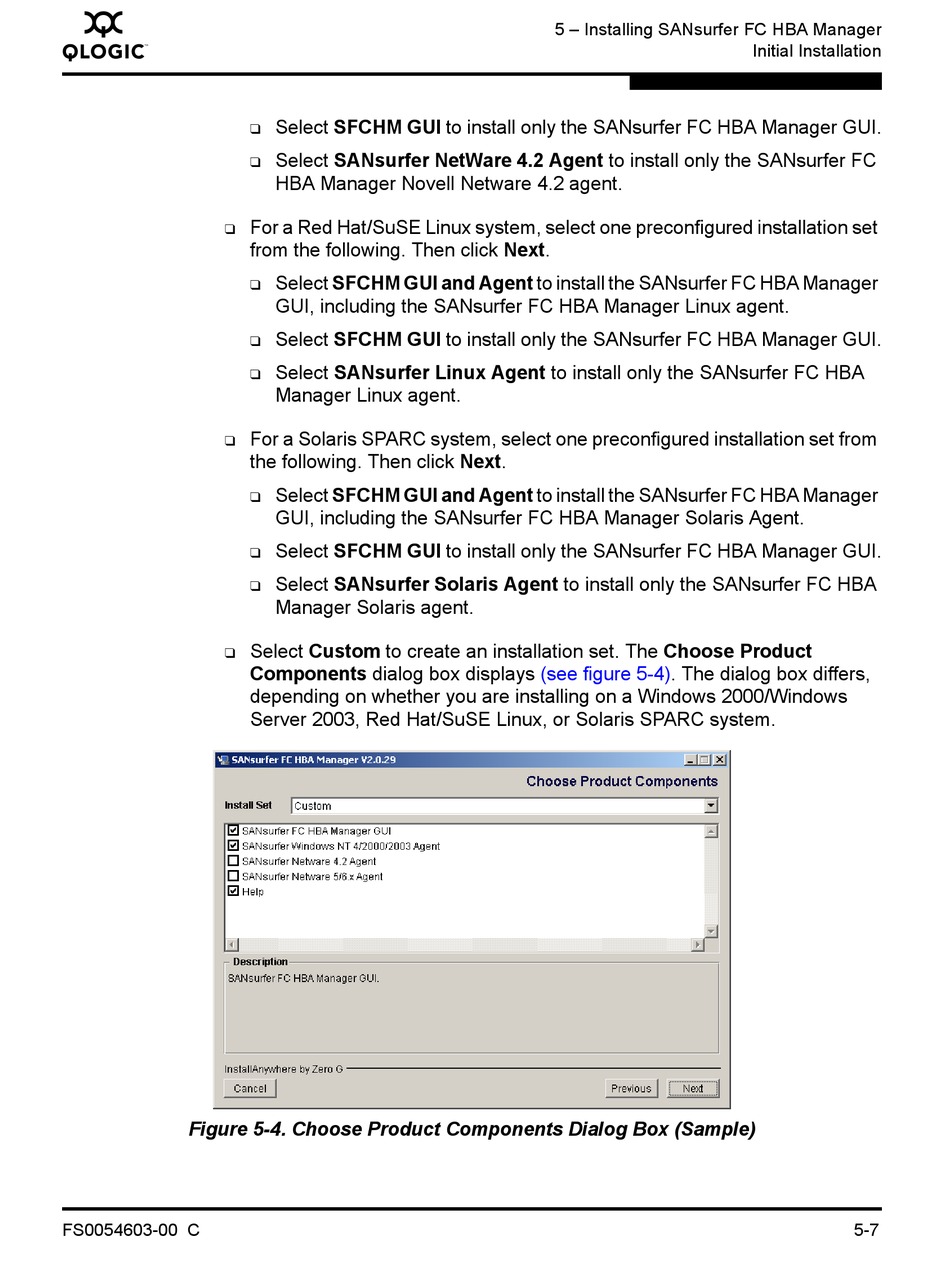

Figure 5-4. Choose Product Components Dialog Box (Sample)
FS0054603-00 C
Select SFCHM GUI to install only the SANsurfer FC HBA Manager GUI.
❑
Select SANsurfer NetWare 4.2 Agent to install only the SANsurfer FC
❑
HBA Manager Novell Netware 4.2 agent.
For a Red Hat/SuSE Linux system, select one preconfigured installation set
from the following. Then click Next.
Select SFCHM GUI and Agent to install the SANsurfer FC HBA Manager
❑
GUI, including the SANsurfer FC HBA Manager Linux agent.
Select SFCHM GUI to install only the SANsurfer FC HBA Manager GUI.
❑
Select SANsurfer Linux Agent to install only the SANsurfer FC HBA
❑
Manager Linux agent.
For a Solaris SPARC system, select one preconfigured installation set from
the following. Then click Next.
Select SFCHM GUI and Agent to install the SANsurfer FC HBA Manager
❑
GUI, including the SANsurfer FC HBA Manager Solaris Agent.
Select SFCHM GUI to install only the SANsurfer FC HBA Manager GUI.
❑
Select SANsurfer Solaris Agent to install only the SANsurfer FC HBA
❑
Manager Solaris agent.
Select Custom to create an installation set. The Choose Product
Components dialog box displays
depending on whether you are installing on a Windows 2000/Windows
Server 2003, Red Hat/SuSE Linux, or Solaris SPARC system.
5 – Installing SANsurfer FC HBA Manager
(see figure 5-4). The dialog box differs,
Initial Installation
5-7
