Perform the following steps to compare the current host configuration (online) to a
previously saved host configuration file (offline)
1. From the SANsurfer FC HBA Manager main window, do one of the following:
❑
❑
2. The Open dialog box displays. Select a .qlc file from the local working directory.
Click Open. The Differences Between Offline Host and Online Host dialog
box displays

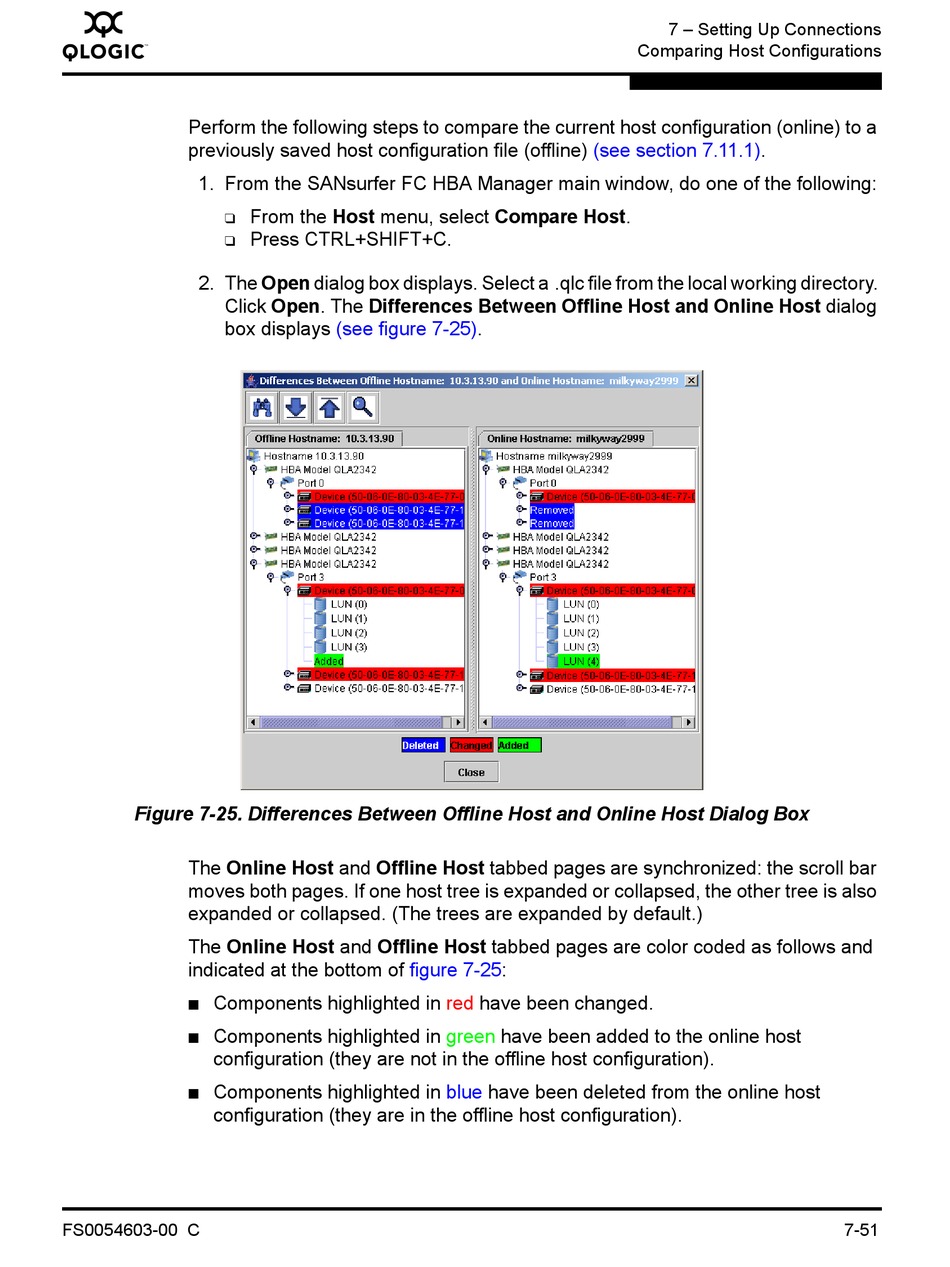

Figure 7-25. Differences Between Offline Host and Online Host Dialog Box
The Online Host and Offline Host tabbed pages are synchronized: the scroll bar
moves both pages. If one host tree is expanded or collapsed, the other tree is also
expanded or collapsed. (The trees are expanded by default.)
The Online Host and Offline Host tabbed pages are color coded as follows and
indicated at the bottom of
Components highlighted in
■
Components highlighted in
■
configuration (they are not in the offline host configuration).
Components highlighted in
■
configuration (they are in the offline host configuration).
FS0054603-00 C
From the Host menu, select Compare Host.
Press CTRL+SHIFT+C.
(see figure
figure
(see section
7-25).
7-25:
red have been changed.
green have been added to the online host
blue have been deleted from the online host
7 – Setting Up Connections
Comparing Host Configurations
7.11.1).
7-51
