9.3.4

Viewing Link Status

Perform the following steps to view the link information for devices attached to an
HBA port:
1. In the SANsurfer FC HBA Manager main window HBA tree, select the HBA port.
2. Select the Link Status tab. The Link Status tabbed page displays
figure
NOTE:
FS0054603-00 C
9 – Displaying Host, HBA, HBA Port, Device, and LUN Information
9-10).

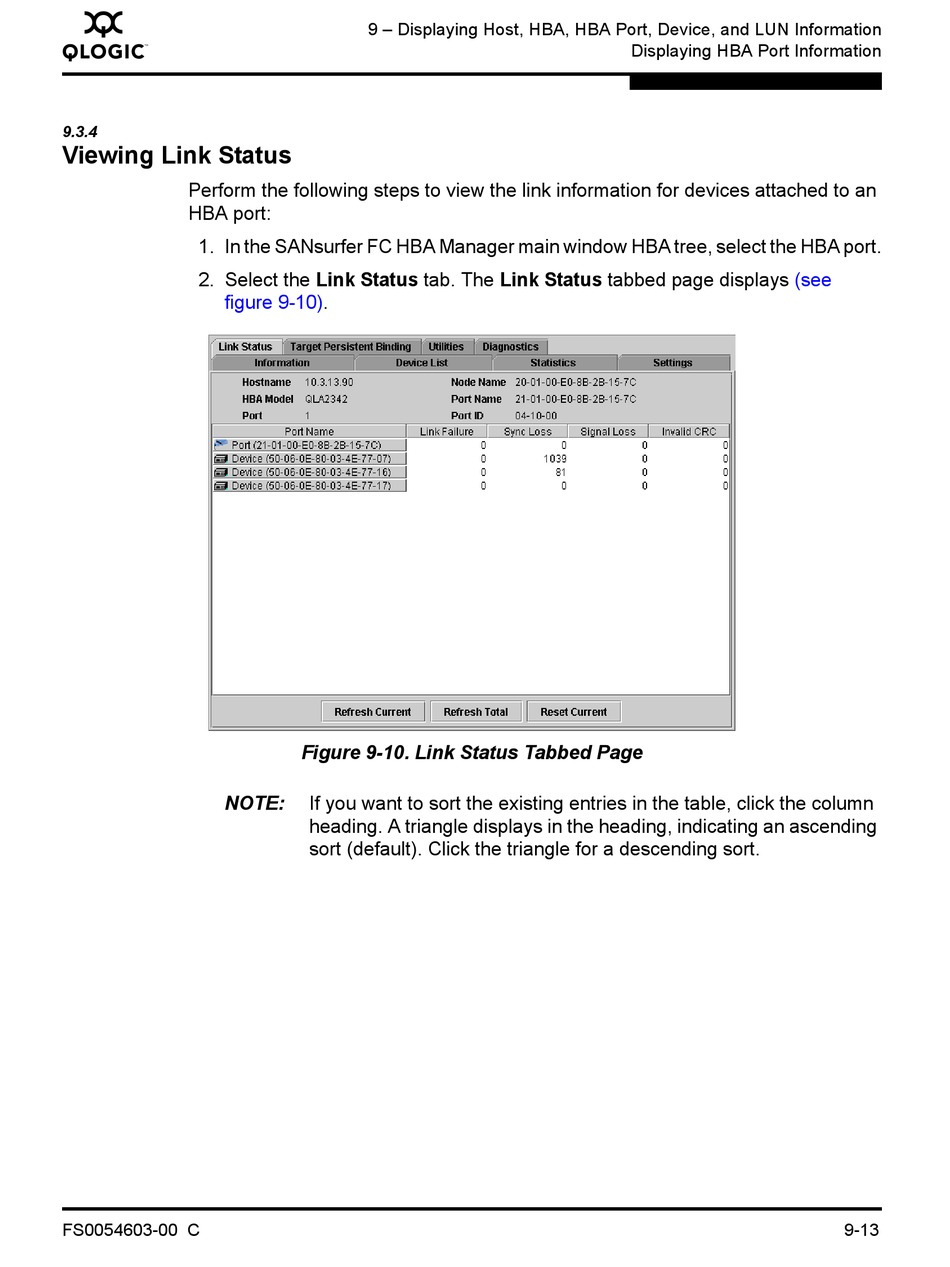

Figure 9-10. Link Status Tabbed Page
If you want to sort the existing entries in the table, click the column
heading. A triangle displays in the heading, indicating an ascending
sort (default). Click the triangle for a descending sort.
Displaying HBA Port Information
(see
