SANsurfer FC HBA Manager Main Window

When the SANsurfer FC HBA Manager GUI starts, SANsurfer: SANsurfer FC HBA
Manager OEMID65 Version displays in the title bar and FC HBA displays on the
application tab. Connect to the host
Manager main window displays
Title Bar
Menu Bar
Toolbar
Application Tab
HBA Tree
Status Line

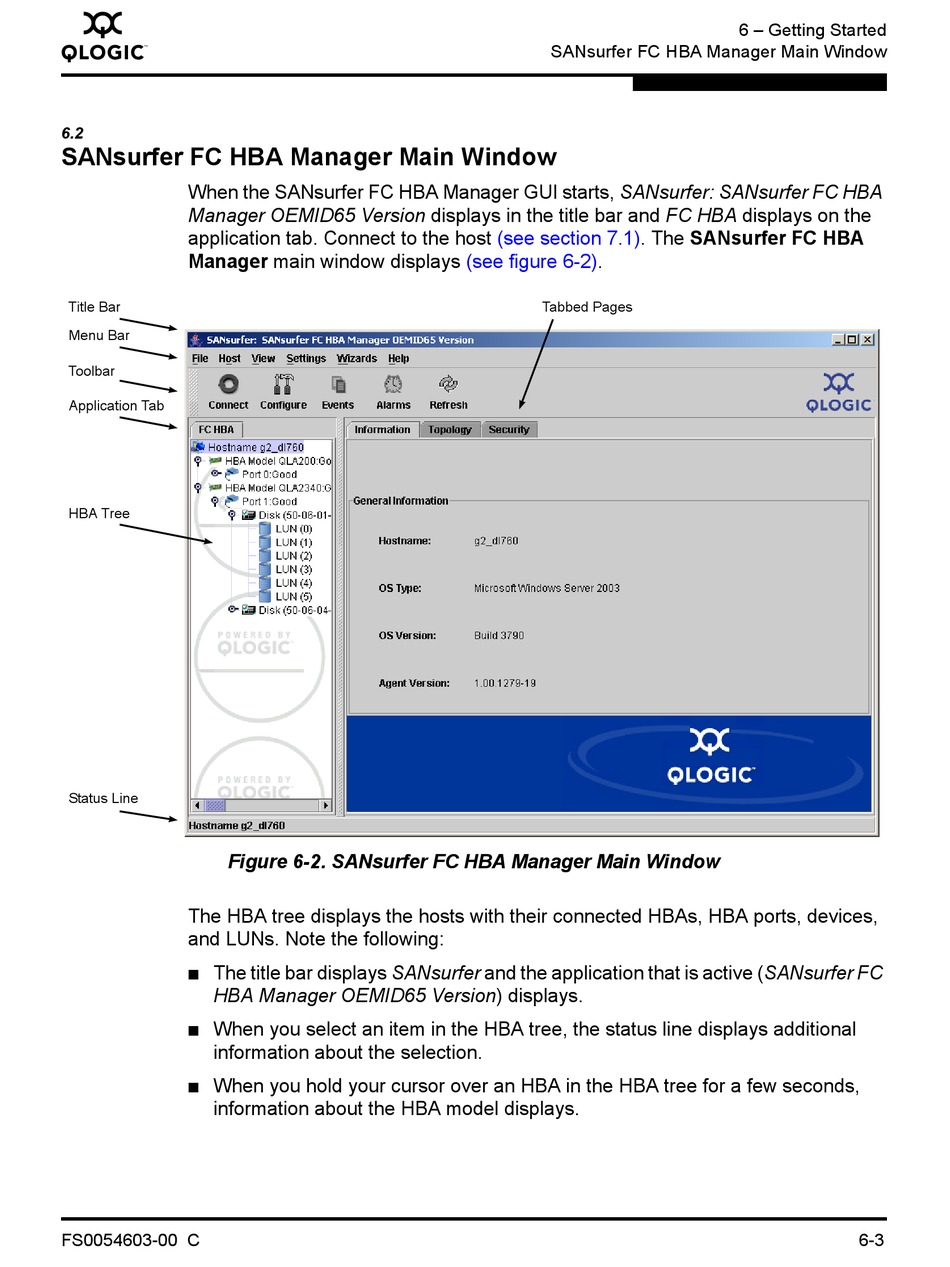

Figure 6-2. SANsurfer FC HBA Manager Main Window
The HBA tree displays the hosts with their connected HBAs, HBA ports, devices,
and LUNs. Note the following:
The title bar displays SANsurfer and the application that is active (SANsurfer FC
■
HBA Manager OEMID65 Version) displays.
When you select an item in the HBA tree, the status line displays additional
■
information about the selection.
When you hold your cursor over an HBA in the HBA tree for a few seconds,
■
information about the HBA model displays.
