Q
2. To view an individual alarm, double-click the alarm. The Alarm Details dialog
box displays
The Alarm Details dialog box displays the time stamp, host name, HBA ID
(HBA port number and HBA model), and description.
Do the following as appropriate:
❑
❑
❑
3. If you want to clear the alarm log,
4. If you want to export the alarm log,
5. If you want to print the alarm log,
6. Click OK to return to the SANsurfer FC HBA Manager main window.
FS0054603-00 C
(see figure

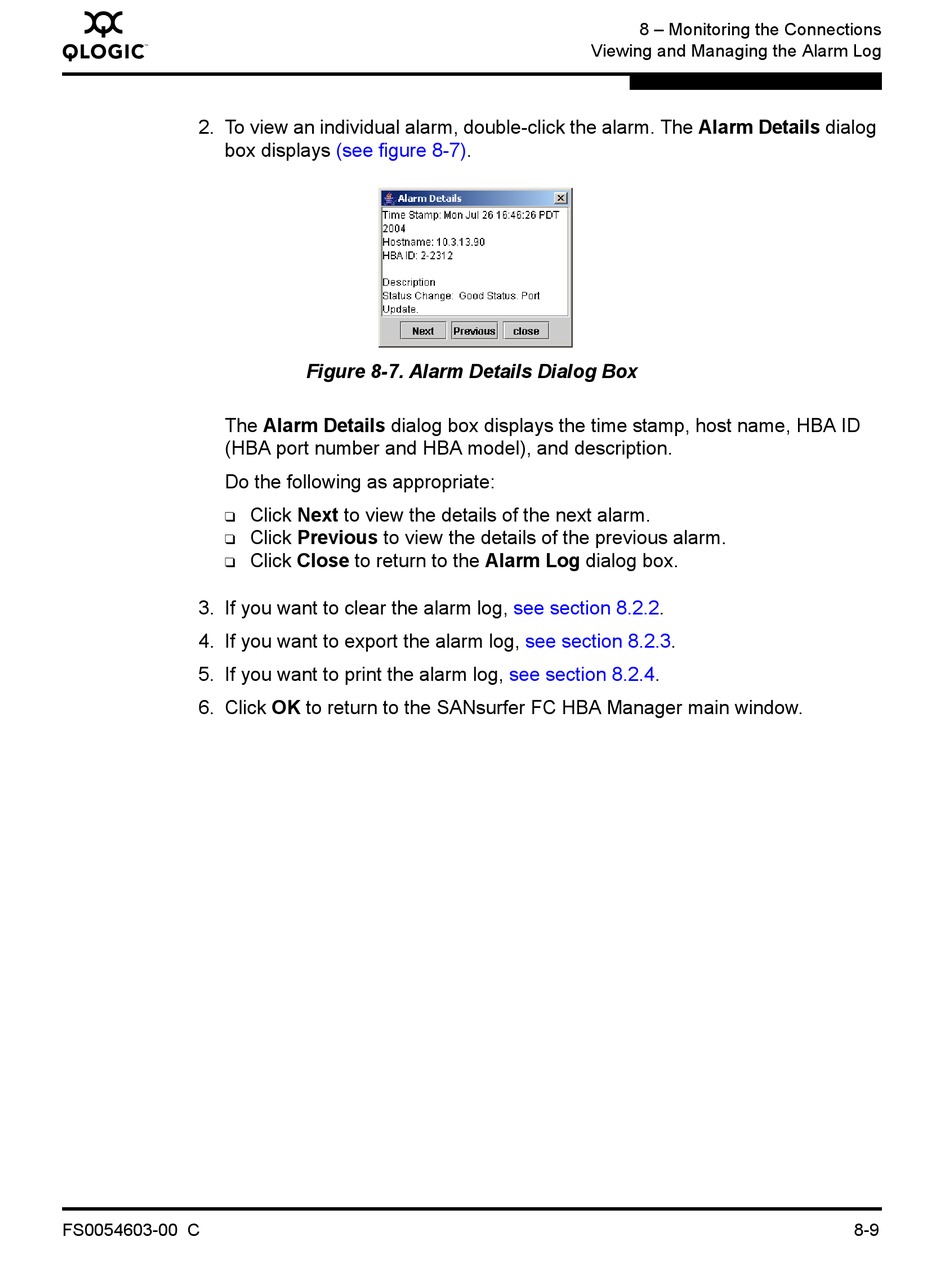

Figure 8-7. Alarm Details Dialog Box
Click Next to view the details of the next alarm.
Click Previous to view the details of the previous alarm.
Click Close to return to the Alarm Log dialog box.
Viewing and Managing the Alarm Log
8-7).
see section
see section
see section
8 – Monitoring the Connections
8.2.2.
8.2.3.
8.2.4.
8-9
