Printer Part Names

Printer Part Names

Printer Main Unit

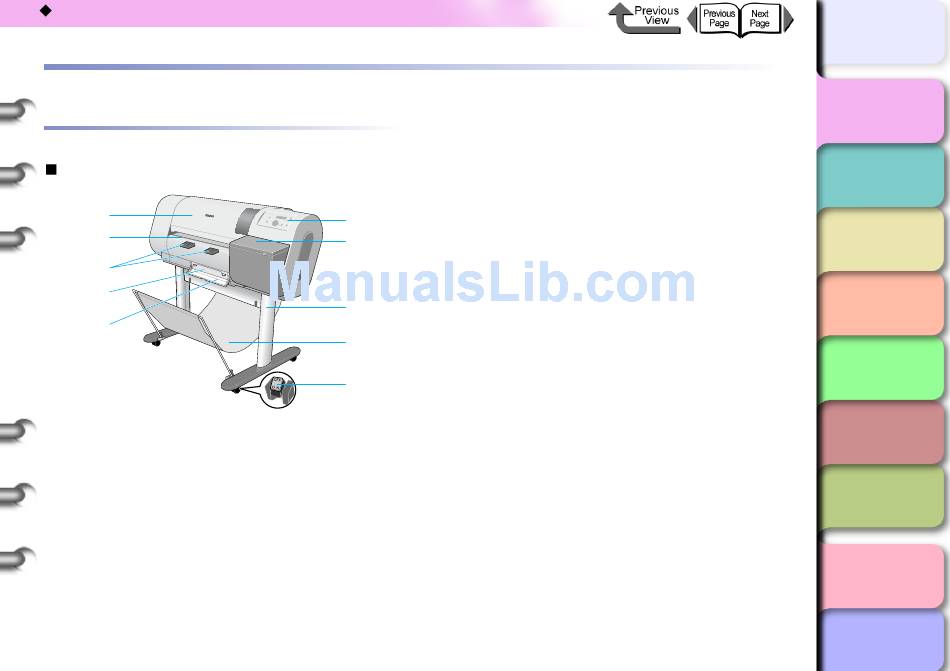

Front View

a
b
c
d
e
a Upper cover
Remove this cover to install the printhead, to load media,
or to remove sheets of paper jammed in the printer.
(→ P.4-11, P.6-35)
b Cutting groove
When you cut the media manually, the cut is done along
this groove.
c Output assist guides
Guides the media output and keeps if from floating out of
position. Pull this guide out before printing.
1- 2
d Maintenance Cartridge
The cartridge that vacuums and collects excess ink.
When you see the message prompt that tells you to
replace the maintenance cartridge, replace the cartridge.
(→ P.4-16)
e Maintenance cartridge cover
f
Open this cover to replace the maintenance cartridge.
g
(→ P.4-16)
f Operation panel
Provides the display panel and the operation panel but-
h
tons. For more details, please refer to
tion Panel Buttons"
i
g Right cover
Open to replace ink tanks.
j
h Stand (optional outside the U.S.A.)
This is a table designed specially for this printer. Casters
are attached to the legs to make it easy to move.
i Output stacker (provided with optional stand)
A cloth tray that catches print media ejected from the
printer.
j Stopper
The part that locks the casters of the printer stand.
"Using the Opera-
(→ P.1-12).
