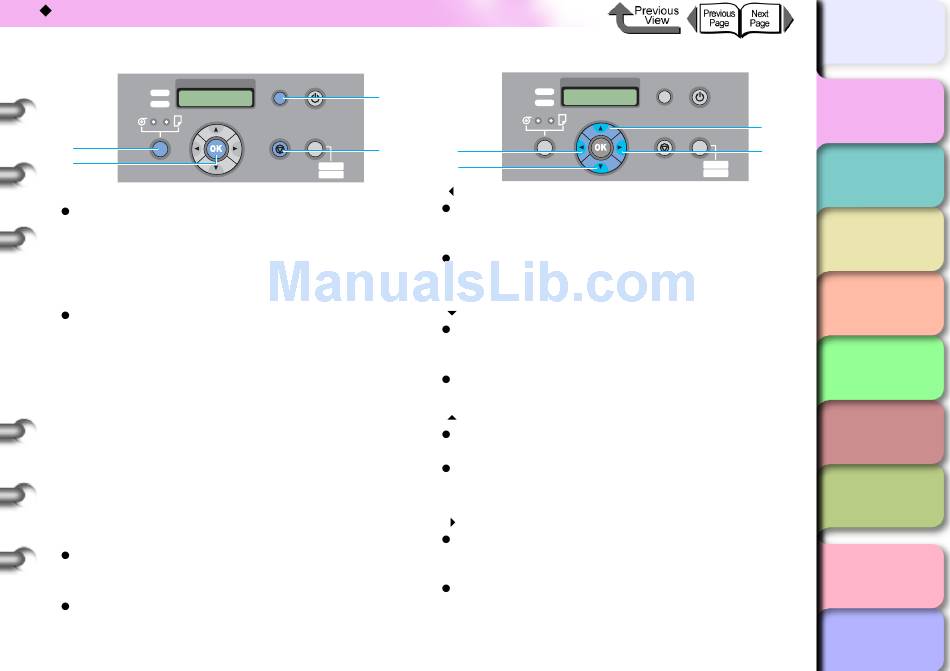

What's On the Operation Panel?
Data
Message
c
d
c Paper Source button
Online, Offline, Menu Display Status:
Press and hold for 1 second or more to switch
between Roll Media and Cut Sheet as the feed source.
However, this switching cannot be performed if the
upper cover, right cover, or release lever is open.
d OK button
Setting value display:
Selects the value or setting, or executes the function,
currently displayed on the operation panel.
e Information button
Displays the submenus. The information about ink, the
maintenance cartridge, media, and printhead height,
printhead service life, and parts service life displays in a
prescribed order on a rolling display. Pressing and hold-
ing this button for 3 seconds also starts Head Cleaning
A. (→ P.4-38)
The length of the media remaining also displays if the
function that checks the amount of media remaining on
the roll is switched on.
f Stop/Eject button
Online, Offline, Menu Display Status:
Press and hold for over 1 second to cancel printing, ink
drying, or eject the media.
Pause Status:
Press and hold for over 1 seconds to cancel a paused
job and eject the media.
1- 13
Information Power
e
Cleaning
(3 sec.)
Stop/Eject
(1 sec.) Online
f
Offline
Menu
g [
h [
i [
j [
Data
Message
g
h
] button
Printer offline:
Press and hold for 1 second to move the carriage to
the center of the platen.
Menu display:
Operates as a function select button to display the pre-
vious candidate (menu item or value) for selection.
] button
Printer offline:
Does manual feeding from the roll automatically when
you are using the roll as the feed source.
Menu display:
Press this button to open the next menu level below.
] button
Printer offline:
Manually reverse feeds paper onto the roll.
Menu display:
Press to return one level up and display the previous
menu item.
] button
Printer offline:
Press and hold for 1 second to move the carriage to
the center of the platen.
Menu display:
Operates as a scroll button to display the next candi-
date (menu item and value) for selection.
