Function Menus

Sub Menus

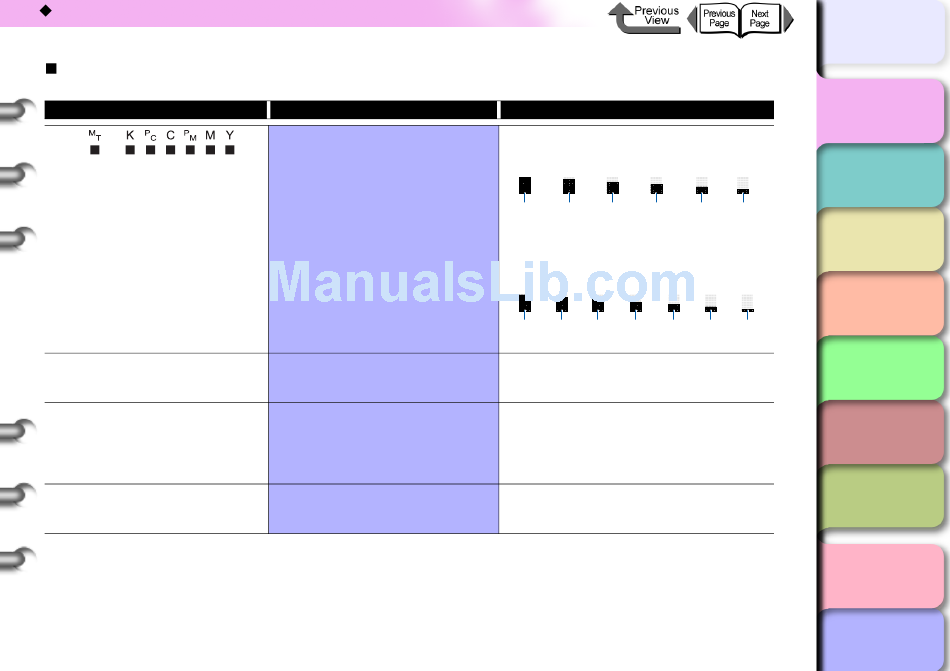

Menu Item
Ink:
Width: X
Y
Remaining: Xm
YY Printable
Head Height X
Best Head Hght Y
1- 31
Setting Values
X: Media Width
Y: Media Type
X: Roll Remains
Y: Sheets printable with remaining
ink.
X: Current printhead position (L, M, H)
Y: Best position for media (L, M, H)
Function
Displays in the center the ink capacity in 7
steps (100%, 80%, 60%, 40%, 20%, 0%)
and no ink.
100% 80% 60% 40%
(100~90%) (90~70%) (70~50%) (50~30%)
Displays in seven levels the capacity of ink
that the maintenance cartridge can still
absorb.
~700ml ~600ml ~500ml ~400ml ~300ml
(7dot) (6dot) (5dot) (4dot) (3dot)
The width of the media is shown on the top
line, and the type of media is shown on the
bottom line.
When the roll media supply detection is On,
this displays the length of the media that
remains on the roll. Also, while the ink
remains alert is displayed the number of
sheets that can be printed is also displayed.
When the Head Ht. Wrning is On, an alert is
issued if the current height of the printhead is
lower than the ideal height for the media.
