Printer Part Names

Printer Part Names

Printer Main Unit

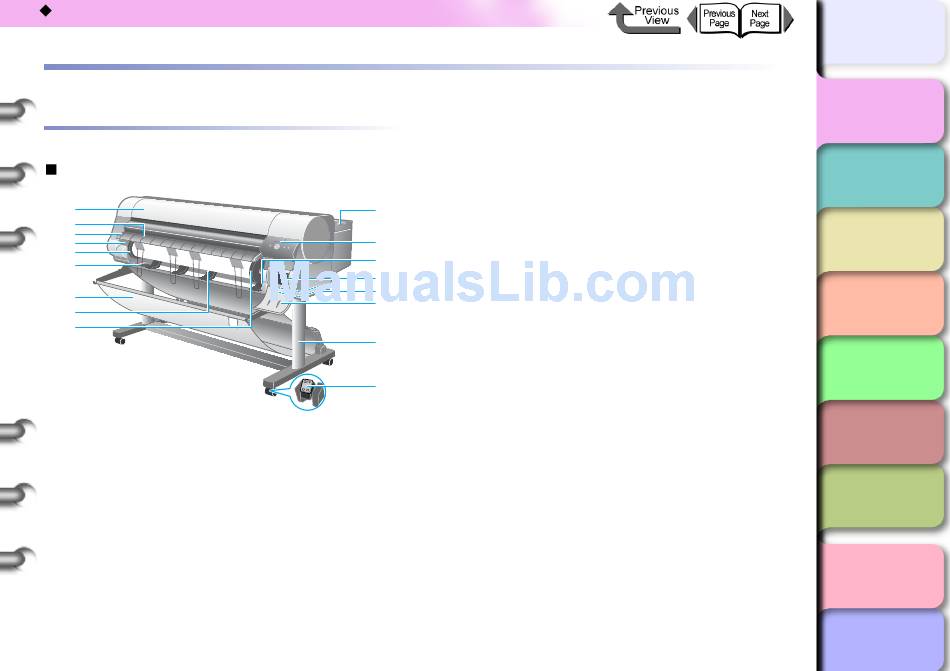

Front View

a
b
c
d
e
f
g
h
i
a Top Cover
Remove this cover to install the printhead, to load media,
or to remove sheets of paper jammed in the printer. (→
P.4-11, P.6-37)
b Cutter Grooves
If cutting paper manually, make sure the cutter is in
contact with this wall at all times.
c Ejection Guide
Printed media is delivered to the paper catch tray. Open
the ejection guide to load the roll media.
d Roll Holder Slot
This groove guides the roll holder. (→ P.2-31)
1- 2
e Holder Stopper
The part that fastens the roll media to the roll holder.
(→ P.2-28)
f Spool Prevention Stay
This part prevents printed matter from being snagged on
j
the roll holder or paper feed slot.
k
g Output stacker (provided with optional stand)
l
A cloth tray that catches print media ejected from the
m
printer.
n
o
h Paper Feed Slot
Insert paper here when loading roll media. (→ P.2-28)
p
i Roll Holder
The holder where the roll media is loaded. (→ P.2-28)
q
j Right Back Cover
Open to replace ink tanks.
k Operation Panel
Provides the display panel and the operation panel
buttons. For more details, please refer to
Operation Panel Buttons". (→ P.1-12)
l Release Lever
The lever that releases the media. If you are loading or
manually feeding paper, pull up this lever and open the
paperweight bar. (→ P.2-32)
