Instructions for use

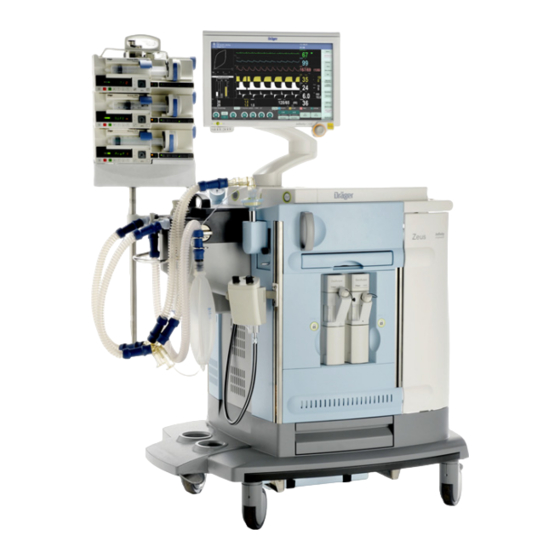

Zeus Infinity Empowered
WARNING
To properly use this medical device,
read and comply with these instruc-
tions for use.
Anesthesia workstation system
Software 2.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zeus Infinity Empowered and is the answer not in the manual?

Questions and answers

Muhammad Bilal
June 19, 2025

Hi I have drager zeus infinity empowered can you please tell me the service password I try 4712 but didn't work some one change the password

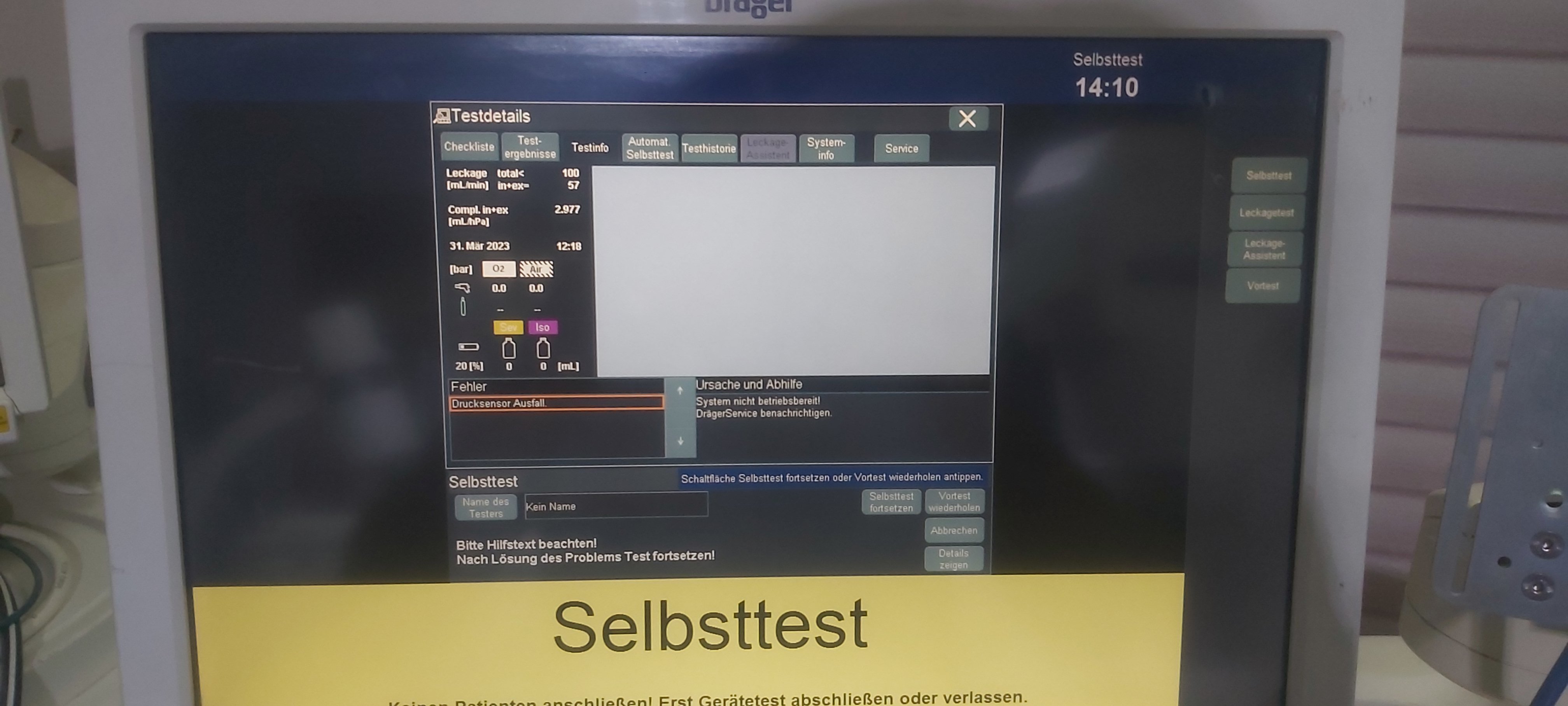

User image 6854132fc6218
