- Page 1 Quick Reference Guide This Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Primus Any use of the medical device requires fullunderstan- ding and strict observation of the Instruction for Use. Infinity Empowered Software 4.5n...
- Page 2 Dräger. ® – Durasensor ® – OxiMax are registered trademarks of Nellcor. ® – Neodisher Medizym is a registered trademark of Chemische Fabrik DR. WEIGERT GmbH & Co. KG.. Quick Reference Guide Primus Infinity Empowered SW 4.5n...
-
Page 3: Table Of Contents
Pressure Support Mode (optional)... . . Continuous Positive Airway Pressure CPAP – in Pressure Support Mode (optional)... Quick Reference Guide Primus Infinity Empowered SW 4.5n... -

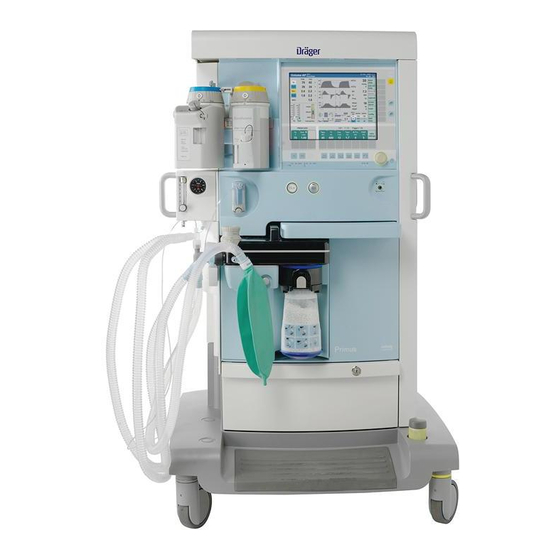

Page 4: Overview
Overview Overview NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Front A Lighting control (dimmer) -
Page 5: Rear
Power cord Pin for grounding cable K Gas inlets L Connection for optional halogen lamp (remove cap before use.) Use the lamp specified in the list of accessories only! M Interface panel Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 6: Gas Inlets
(optional) D Connection for central gas supply AIR E AIR outlet for endotracheal aspiration system (op- tional) F Connection for N O cylinder G Connection for central gas supply N Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 7: Interface Panel
Overview Interface Panel Socket for SpO sensor (optional) COM 1 MEDIBUS, MEDIBUS.X interface COM 2 MEDIBUS, MEDIBUS.X interface IV System Connection for Dräger IV System Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 8: Operation Concept
Operation Concept Operation Concept NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Screen ergonomics... -
Page 9: Keys With Permanent Functions (Hard Keys)
Briefly press the key until the re- quired screen is displayed. Return to the standard screen. D The Standby key is used for switching from op- eration to the Standby mode. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 10: Selecting And Setting
Confirm the selection = push the rotary knob (B). Set the alarm limit = turn the rotary knob (B). Confirm the new alarm limit = push the rotary knob (B). Exit the alarm limits menu: Example: PEEP ventilation parameter Quick Reference Guide Primus Infinity Empowered SW 4.5n... - Page 11 5 10 MEDIBUS V4 (E). Confirm the selection with the rotary knob. warning alarms caution alarms Select the menu logbook entries triggered by (C) and confirm the selection with the rotary knob. Quick Reference Guide Primus Infinity Empowered SW 4.5n...
-
Page 12: Color Concept
C Power supply To display the status of the gas and power supply of the The Primus Infinity Empowered can be supplied via Primus Infinity Empowered, several LED indicators are the mains power or via a battery. The LED of the ac- located at the bottom of the screen. -
Page 13: Assembly
Assembly Assembly NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Before first use The green LED (A) lights up. -
Page 14: Connecting The Patient System
Connect the breathing bag (B) and its adapter to the shortest breathing hose in the breathing circuit set. Attach the breathing hose to the angled connector and hang the breathing bag on the hook. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 15: Connecting The Electrical Connections
Connecting auxiliary systems The Primus Infinity Empowered has two auxiliary out- lets on the rear of the machine. Each outlet is rated 3 amps and protected by safety fuses. There is also a dedicated (2 amp) outlet for a Desflurane vaporizer on the side of the machine, above the vapor- izer mount. - Page 16 Fuses for auxiliary outlets If a fuse is tripped (position 0): Remedy the fault, then press the switch at the auto- matic fuse to the position I. The fuse is active again. Quick Reference Guide Primus Infinity Empowered SW 4.5n...
-
Page 17: Getting Started
Getting Started Getting Started NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Device check Check List The Check List is displayed after about 35 seconds. -
Page 18: Self Test
The workstation starts operation without this function. Only without configured CLIC absorber. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 19: Emergency Start
After ten cancellations, the self test cannot be canceled the next time that Primus Infinity Empowered is started Use only in urgent cases if there is no time for the and a complete self test must be carried out. -
Page 20: Alarms
Alarms Alarms NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Alarm displays If more than nine alarm messages are simultaneously... -
Page 21: Alarm Priorities And Alarm Signals
In case of a short alarm duration, only half of the sequence (5 – Red LED flashes (A), accompanied by a repetitive tones) is annunciated. tone sequence. *** The third tone is one octave lower. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 22: Suppressing Alarms
Some alarms can be temporarily suppressed. This can be done automatically depending on the ventilation mode or manually in the menu Standby Conf. in Stand- by or permanently via the alarm menu. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 23: Displaying And Setting Alarm Limits
Press the soft key alarm limits (A). Display (example): The Primus Infinity Empowered has an automatic sup- pression of active MV low and apnea alarms implement- The current measured values and their alarm limits are ed, when changing ventilation modes. - Page 24 All technical alarms, e. g. failure of equipment compo- nents and a number of special operating states, are also Adapting alarm limits indicated by Primus Infinity Empowered when in Stand- Volume A corresponding message appears in the alarms field, but without any acoustic warning.
-
Page 25: Monitoring
Monitoring NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Selecting the standard screen The most important parameters are grouped together on the right (C) and left sides of the screen. -
Page 26: Screen Layout
Select, edit, and confirm the curve or module to be changed and confirm with the rotary knob. All three screen layouts with three curves and individual modules can only be configured in the menu Standby Conf.. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 27: Principles Of Operation
Principles of Operation NOTE The Primus Infinity Empowered Quick Reference Guide is not a replacement or substitute for the Instructions for Use. Any use of the device requires full understanding and strict observation of the Instructions for Use. Man.Spont. ventilation mode On the pressure control valve APL, you can select be- tween manual ventilation Man. -
Page 28: Volume Mode
. The maximum time interval for controlled ventilation is set via the fre- quency. In order to maintain a constant frequency, a time interval triggered prematurely is compensated in the next cycle. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 29: Volume Mode Autoflow - Volume Af (Optional)
Primus Infinity Empowered automatically adapts the in- spiratory pressure to the changing lung condition in steps of max. ±3 mbar per breathing cycle. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 30: Pressure Mode Ventilation Mode
To maintain a constant frequency, a time interval triggered prematurely is compensated in the next cycle. Changes in lung compliance and ventilation parameters influence the tidal volume. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 31: Pressure Support Mode (Optional)
4 years. Inspiration is ended as soon as the current inspiration flow drops below 25% of the inspiratory peak flow. Any leakage is compensated simultaneously by means of the actual airway pressure. Quick Reference Guide Primus Infinity Empowered SW 4.5n... -
Page 32: Continuous Positive Airway Pressure Cpap - In Pressure Support Mode (Optional)
At the same time, the minimum frequency Freq set to OFF and the rise time T is set to 0.0. Apnea SLOPE ventilation with minimum frequency is not appicable in the CPAP mode. Quick Reference Guide Primus Infinity Empowered SW 4.5n... - Page 33 This page intentionally left blank. Quick Reference Guide Primus Infinity Empowered SW 4.5n...
- Page 34 Manufacturer: Dräger Medical GmbH Moislinger Allee 53 – 55 D-23542 Lübeck Germany +49 451 8 82-0 +49 451 8 82-20 80 http://www.draeger.com The quality management system at Dräger is certified according to ISO 13485, ISO 9001 and Annex II.3 of Directive 93/42/EEC (medi- cal devices).
