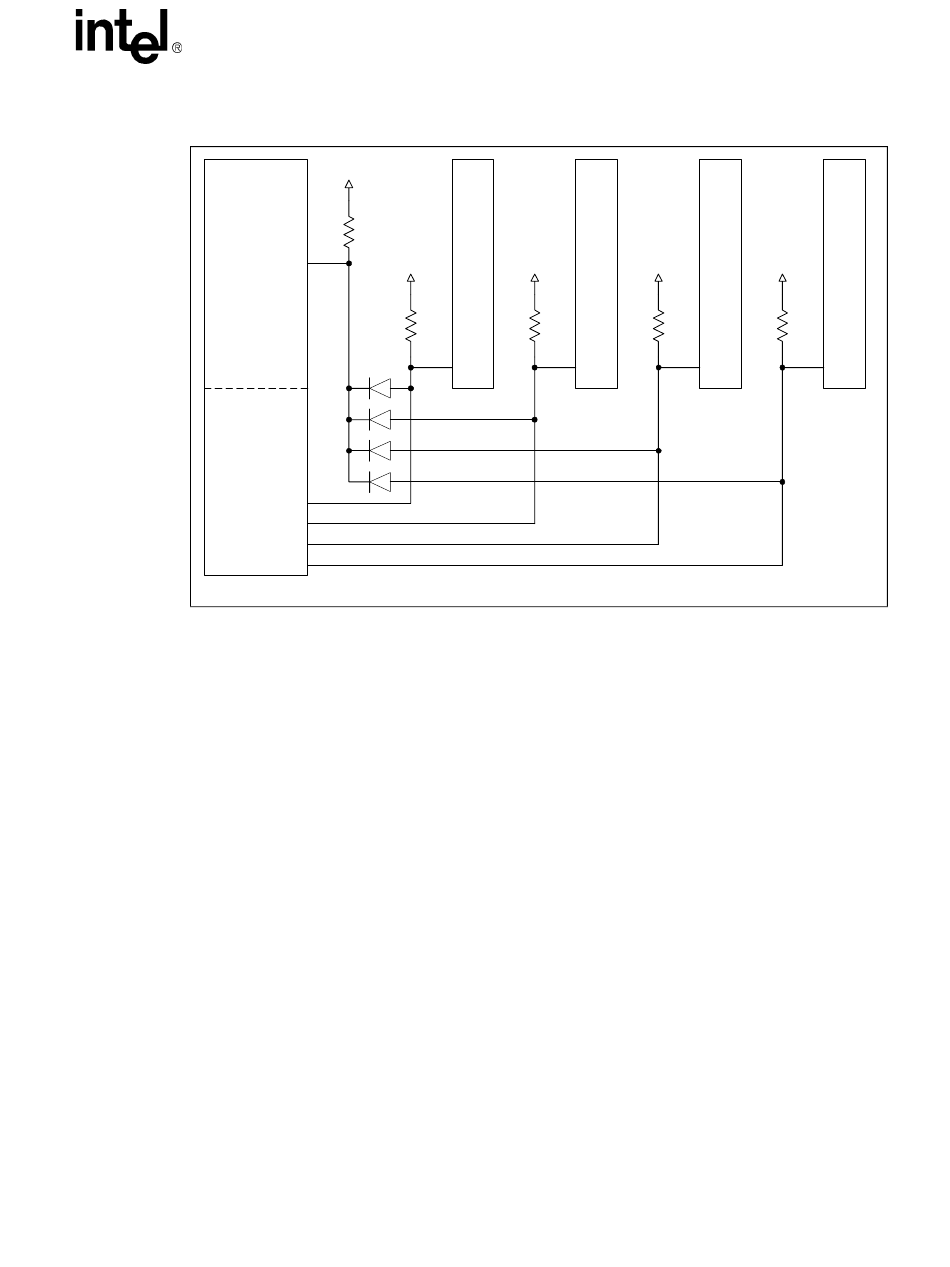

Figure 105.

M66EN Diode Solution

PxM66EN
Intel®
P64H2
PCI Interface
Intel®
P64H2 Hot
Plug Interface
Slot 1 M66EN
Slot 2 M66EN
Slot 3 M66EN
Slot 4 M66EN
NOTE: All PCI signals, multiplexed or not, must follow PCI Specification 2.2 pull-up requirements.
Design Guide
® ®
Intel Pentium M Processor and Intel
3.3V
Slot
1
100 kΩ
3.3V
20 kΩ
M66EN
®
E7501 Chipset Platform
®
Intel 82870P2 (Intel P64H2)
Slot
2
3.3V 3.3V
20 kΩ 20 kΩ
M66EN M66EN
Slot Slot
3 4
3.3V
20 kΩ
M66EN
