19.2.3 UART Mode
This section describes how the UART functions in UART wired mode.
connect the UART operating in UART mode to another UART on an external device.

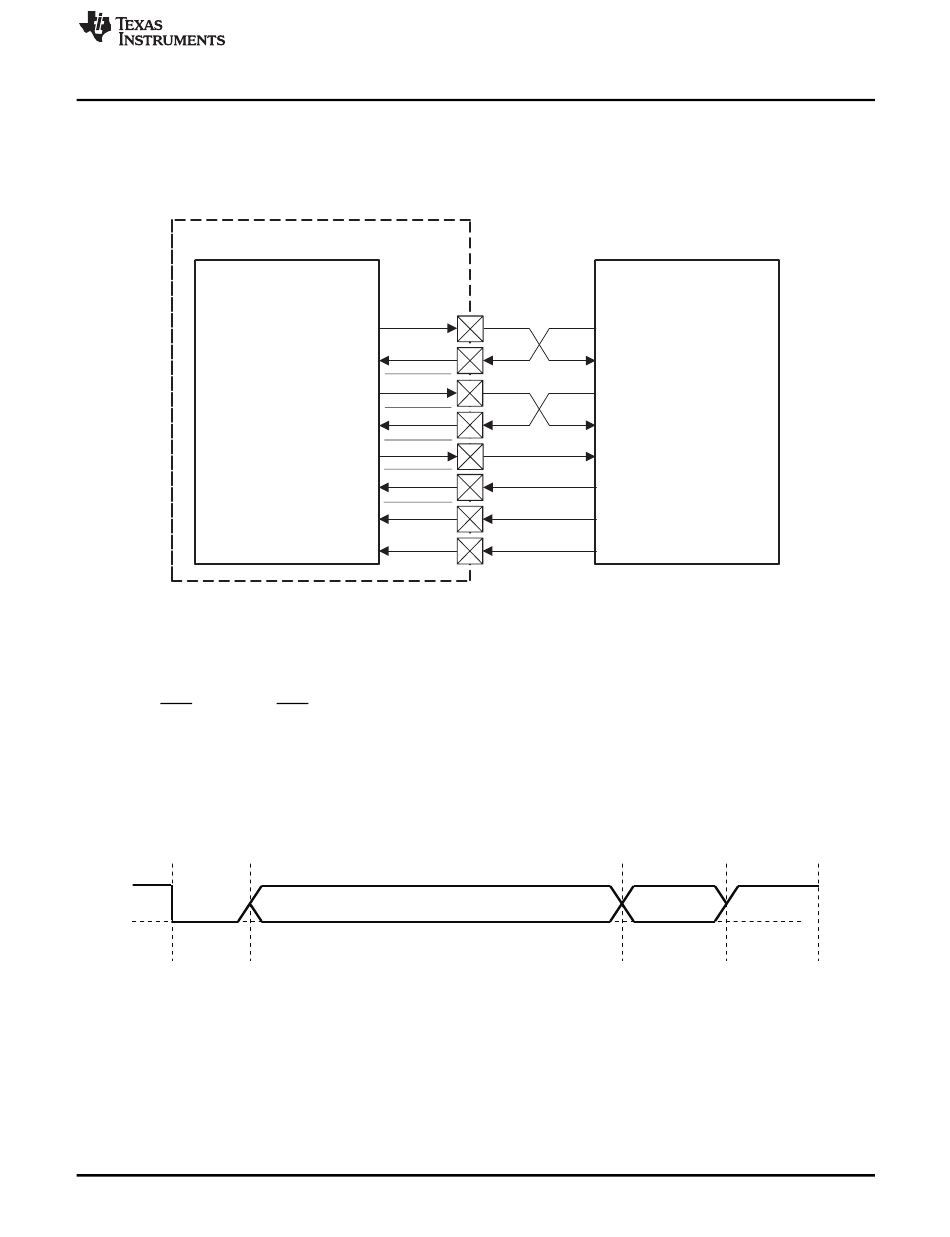

Figure 19-1. UART to UART Connection With Full Handshaking
UART/IrDA/CIR
The UART uses a wired interface for serial communication with a remote device. It can use hardware or
software flow control to manage transmission/reception. Hardware flow control significantly reduces
software overhead and increases system efficiency by automatically controlling serial data flow using
the RTS output and CTS input signals. Software flow control automatically controls data flow by using
programmable XON/XOFF characters.
The UART modem module is enhanced with an autobauding functionality, which in control mode allows
to automatically set the speed, the number of bit per character, and the parity selected.
shows the UART frame data format. Each frame consists of a start bit, 5 to 8 data bits (user
configurable), an optional parity bit (user configurable), and 1 or 2 stop bits (user configurable).
