Using the TPS2410EVM

User's Guide

Literature Number: SLVU181B

October 2006 – Revised September 2019

Need help?

Do you have a question about the TPS2410EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS2410EVM

Page 1 Using the TPS2410EVM User's Guide Literature Number: SLVU181B October 2006 – Revised September 2019...

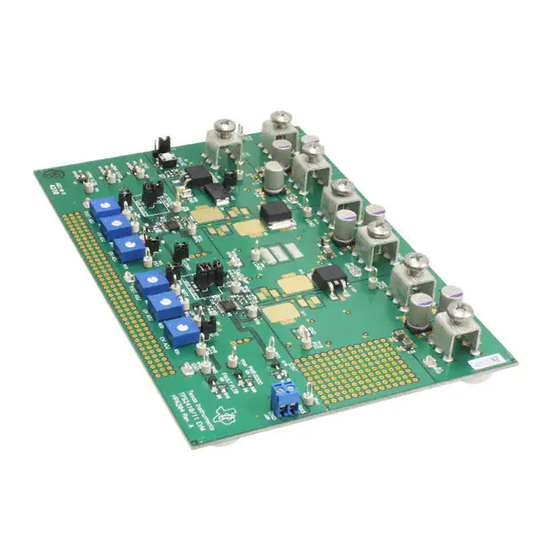

Page 2 TPS2410, TPS2411 data sheets, schematics, and circuit board labeling. Two variant of EVM exists for two different package options. TPS2410EVM and TPS2411EVM are used in evaluation of the 14 Pin TSSOP (PW) packaged device and TPS2411EVM-096 can be used to evaluate 14 Pin UQFN (RMS) packaged device.
Page 3 Reference Figure 2, a block diagram of the TPS2410EVM and TPS2411EVM. • The 5-V supply is used to power status LEDs. It is jumper selected to power VDD on the TPS2410s and the glitch circuit if the control voltage is less than 3.0 V.
Page 4 Power supply cables • Load – active load, power resistors or actual load • Oscilloscope • Current probe • Differential probe TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 5 Connects the load to CH2 C or FET Jumper 2 - 3 Connects C In to disable OV Channel 2 Open SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 6 TP Channel 1 TP Channel 2 TP18 – GATE TP11 TP22 OV INPUT TP10 TP26 UV INPUT TP24 FAULT TP25 TP20 TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 7 A dynamic change to the load can be made by switching additional load on or off with an external switch. Some power load test equipment can be used to dynamically change the load. SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 8 PSI - 100 mV/div GATE2 - 5 V/div GATE1 - 10 V/div LOAD - 500 mV/div Figure 4. PSI Glitched TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 9 GATE1 - 10 V/div STAT - 5 V/div FAULT - 5 V/div PG - 5 V/div Figure 6. PSI Set to Standby SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 10 GATE1 - 10 V/div STAT - 5 V/div FAULT - 5 V/div PG - 5 V/div Figure 8. PSI Turned On From Standby TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 11 Schematics www.ti.com Schematics Schematics of TPS2410EVM and TPS2411EVM is shown in Figure Figure 10 Figure Schematics of TPS2411EVM-096 is shown in Figure Figure 13 Figure Figure 9. SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback...
Page 14 Schematics www.ti.com Figure 12. TPS2411EVM-096 Schematic Sheet 1 TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 15 Schematics www.ti.com Figure 13. TPS2411EVM-096 Schematic Sheet 2 SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 16 EVM Assembly Drawings and PCB Layout www.ti.com Figure 14. TPS2411EVM-096 Schematic Sheet 3 EVM Assembly Drawings and PCB Layout Assembly Drawings and PCB Layout for TPS2410EVM and TPS2411EVM are shown in Figure 15 through Figure 18. Assembly Drawings and PCB Layout for TPS2411EVM-096 are shown in...
Page 17 EVM Assembly Drawings and PCB Layout www.ti.com Figure 15. TPS2410EVM Top Overlay SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 18 EVM Assembly Drawings and PCB Layout www.ti.com Figure 16. TPS2410EVM Internal Layer 1 TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 19 EVM Assembly Drawings and PCB Layout www.ti.com Figure 17. TPS2410EVM Internal Layer 2 SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 20 EVM Assembly Drawings and PCB Layout www.ti.com Figure 18. TPS2410EVM Bottom Layer TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 21 EVM Assembly Drawings and PCB Layout www.ti.com Figure 19. TPS2411EVM-096 Top Overlay Figure 20. TPS2411EVM-096 Top Layer SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 22 EVM Assembly Drawings and PCB Layout www.ti.com Figure 21. TPS2411EVM-096 Internal Layer 1 Figure 22. TPS2411EVM-096 Internal Layer 2 TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 23 EVM Assembly Drawings and PCB Layout www.ti.com Figure 23. TPS2411EVM-096 Bottom Layer Figure 24. TPS2411EVM-096 Bottom Overlay SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 24 Ref designators marked with an asterisk ('**') cannot be substituted. All other components can be substituted with equivalent MFG's components. TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 25 MOSFET, N-channel, 30 V, 100 A DNK0008A CSD17573Q5B R5, R6, R23, Resistor, chip, 10.2 kΩ, 1/10 W, 1% 0603 CRCW060310K2FKEA SLVU181B – October 2006 – Revised September 2019 TPS2410 EVM (HPA204) Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 26 IC, N+1 Supply and Voltage OR Controller RMS14 TPS2411RMS U3, U4 IC, N+1 Supply and Voltage OR Controller PW14 TPS2410PW — Printed Circuit Board PSIL096 TPS2410 EVM (HPA204) SLVU181B – October 2006 – Revised September 2019 Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 27 Updated the Schematics section ..............• Updated the EVM Assembly Drawings and PCB Layout section ....................• Updated the List of Materials section SLVU181B – October 2006 – Revised September 2019 Revision History Submit Documentation Feedback Copyright © 2006–2019, Texas Instruments Incorporated...
Page 28 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
Page 29 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
Page 30 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
Page 31 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
Page 32 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
Page 33 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
