9.2.9

Flex Mount: Compensating mounting angles

INFO
The Flex Mount function is exclusively available in the height mode (see
(height and distance mode)
With the Flex Mount function, you can compensate mounting angles up to ±30°. This is re-
quired if 90° mounting between the sensor and the reference surface is not possible or the
background of the measurement object is to be masked. The tilt angle and distance to the refer-
ence surface are automatically measured and stored in the sensor. The enables correct rotation
of the coordinate system by the software. The profile of the measurement object is determined
as if the sensor is in normal alignment to the reference surface (90°).
With angled mounting, the reference point (RP) of the K axis shifts from the centre of the meas-
urement field or the red visible laser line. By angling the sensor, the two sections of the meas-
urement field (measurement field width left (area A) and measurement field width right (area B))
are no longer the same size.

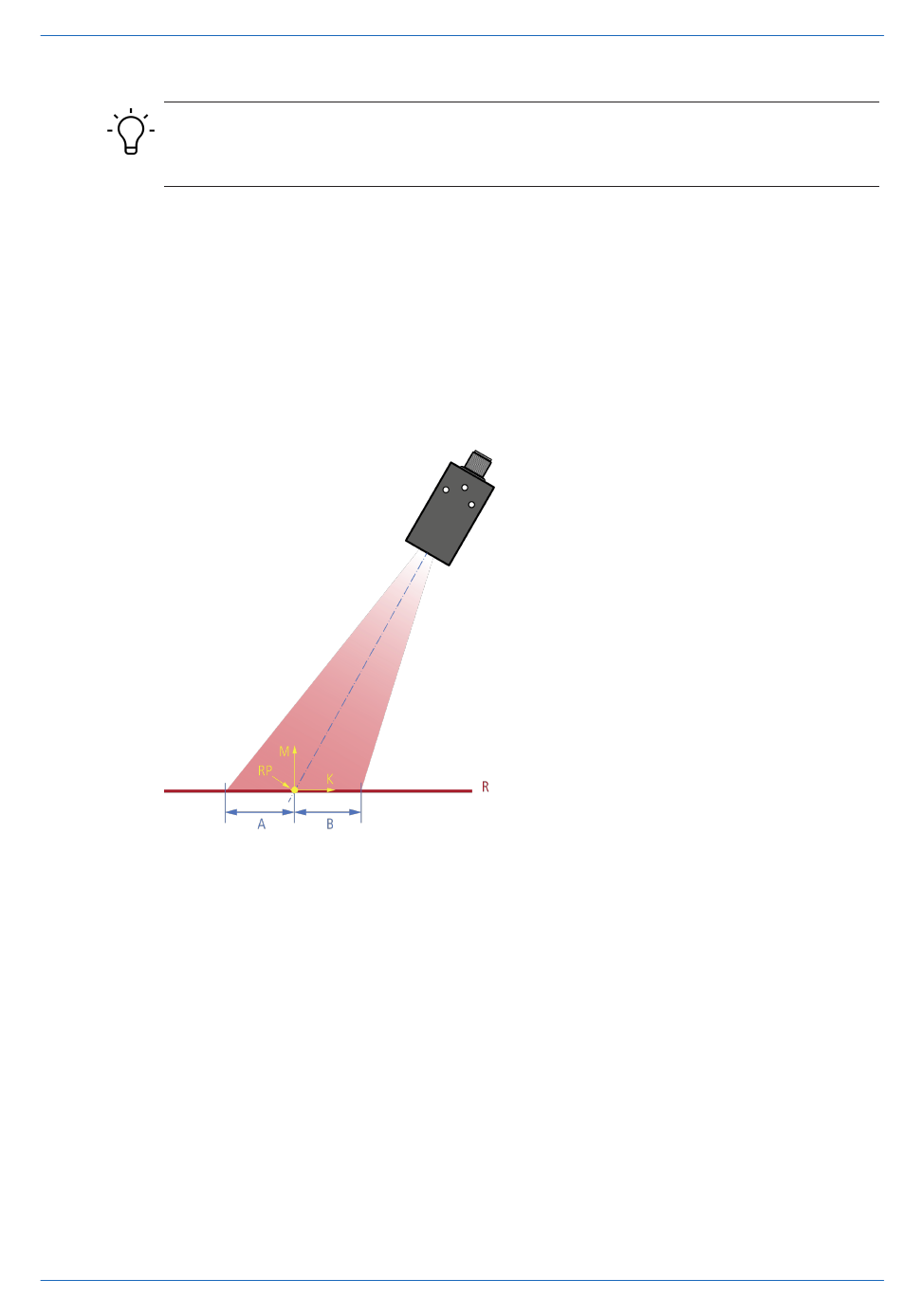

Ill. 35: OX200 – Reference point for angled mounting
OX200 | V2
[} 89]).
