Description
Functionality of the OXM version
OXM200

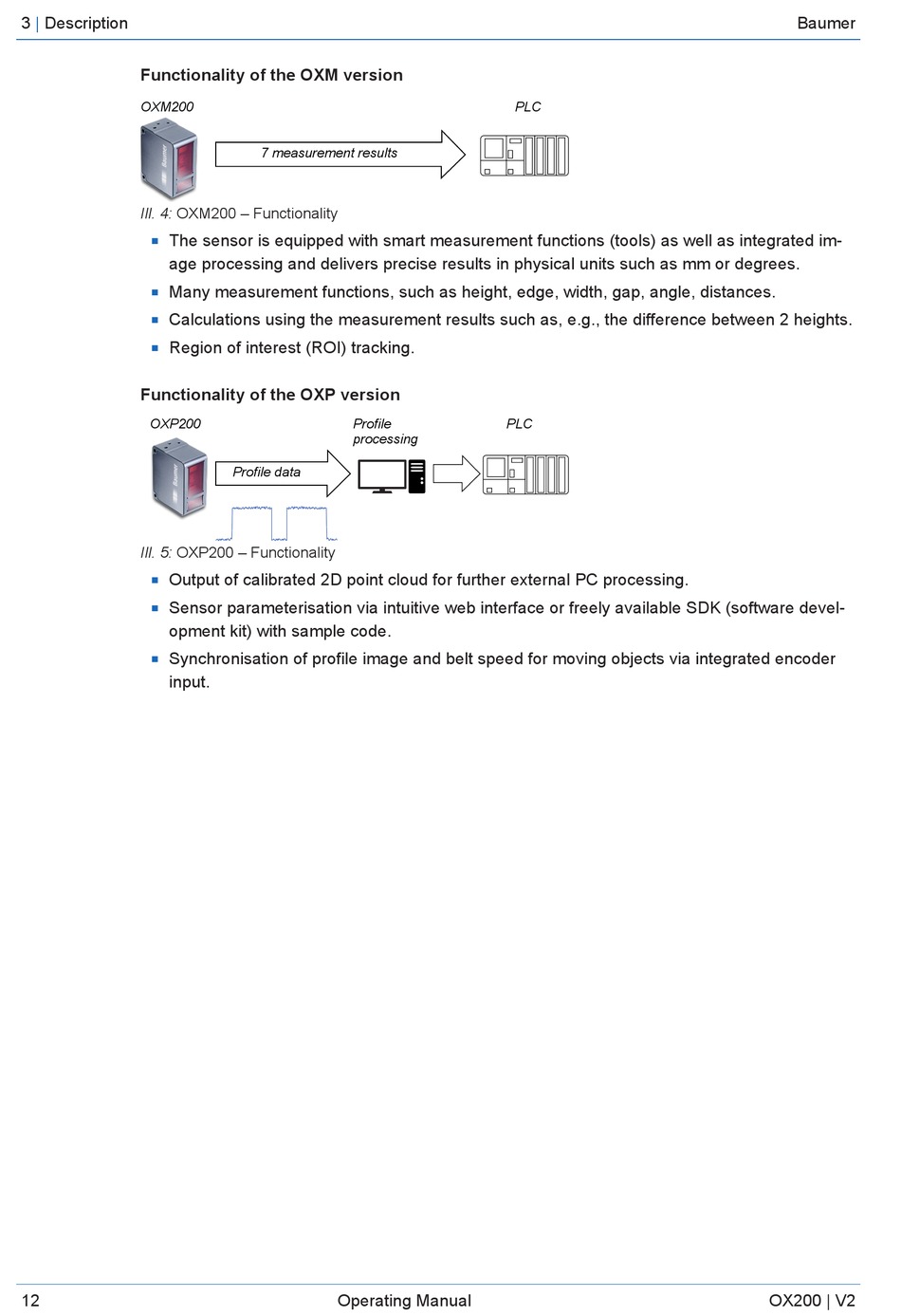

Ill. 4: OXM200 – Functionality
The sensor is equipped with smart measurement functions (tools) as well as integrated im-
n
age processing and delivers precise results in physical units such as mm or degrees.
Many measurement functions, such as height, edge, width, gap, angle, distances.
n
Calculations using the measurement results such as, e.g., the difference between 2 heights.
n
Region of interest (ROI) tracking.
n
Functionality of the OXP version
OXP200
Ill. 5: OXP200 – Functionality
Output of calibrated 2D point cloud for further external PC processing.
n
Sensor parameterisation via intuitive web interface or freely available SDK (software devel-
n
opment kit) with sample code.
Synchronisation of profile image and belt speed for moving objects via integrated encoder
n
input.
12
7 measurement results
Profile
processing
Profile data
Operating Manual
PLC
PLC
Baumer
OX200 | V2
