9
|
Web interface operation
9.2.4

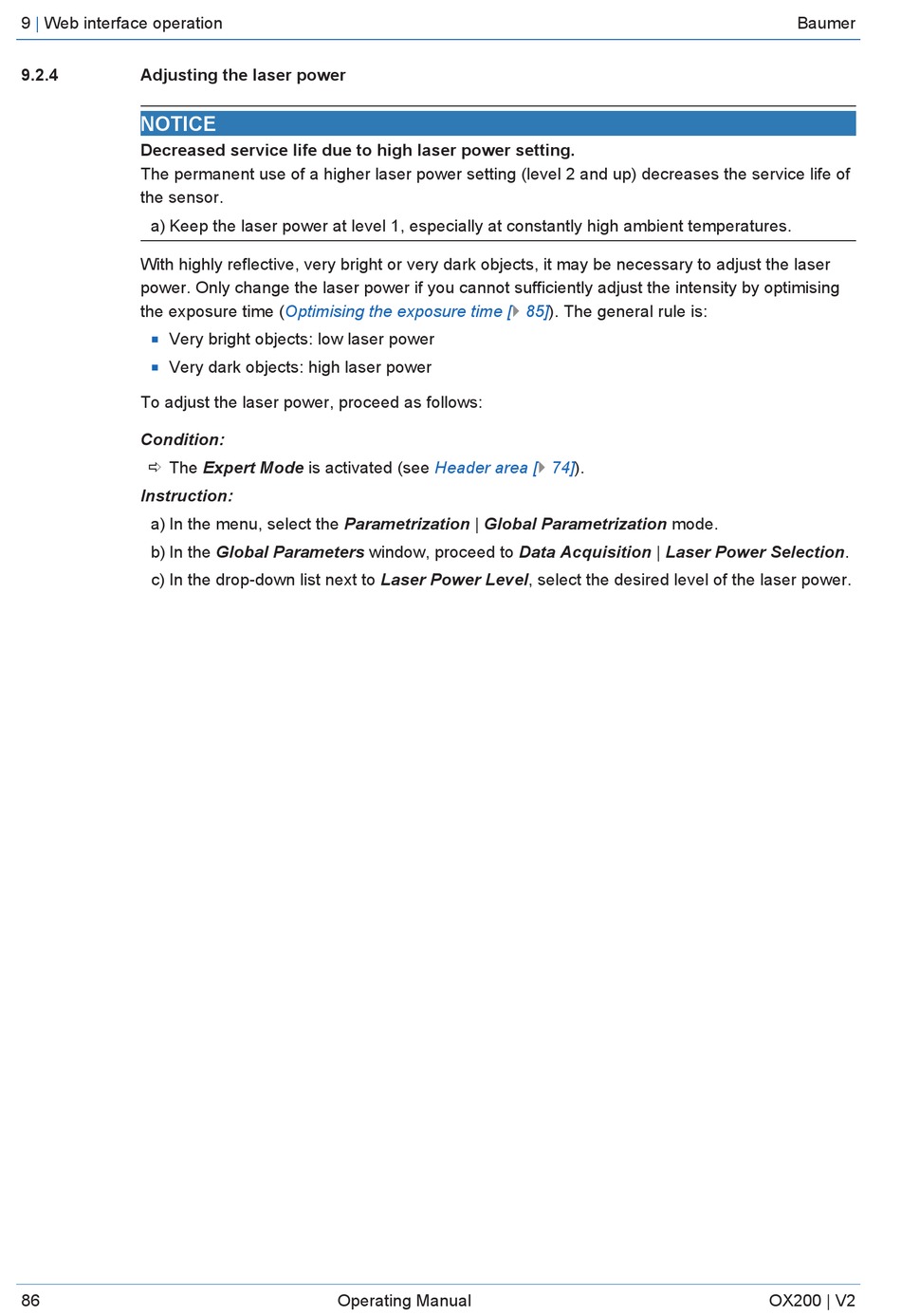

Adjusting the laser power

NOTICE
Decreased service life due to high laser power setting.
The permanent use of a higher laser power setting (level 2 and up) decreases the service life of
the sensor.
a) Keep the laser power at level 1, especially at constantly high ambient temperatures.
With highly reflective, very bright or very dark objects, it may be necessary to adjust the laser
power. Only change the laser power if you cannot sufficiently adjust the intensity by optimising
the exposure time
Very bright objects: low laser power
n
Very dark objects: high laser power
n
To adjust the laser power, proceed as follows:
Condition:
ð The Expert Mode is activated (see
Instruction:
a) In the menu, select the Parametrization | Global Parametrization mode.
b) In the Global Parameters window, proceed to Data Acquisition | Laser Power Selection.
c) In the drop-down list next to Laser Power Level, select the desired level of the laser power.
86
(Optimising the exposure time
Header area
Operating Manual
[} 85]). The general rule is:
[} 74]).
Baumer
OX200 | V2
