Baumer

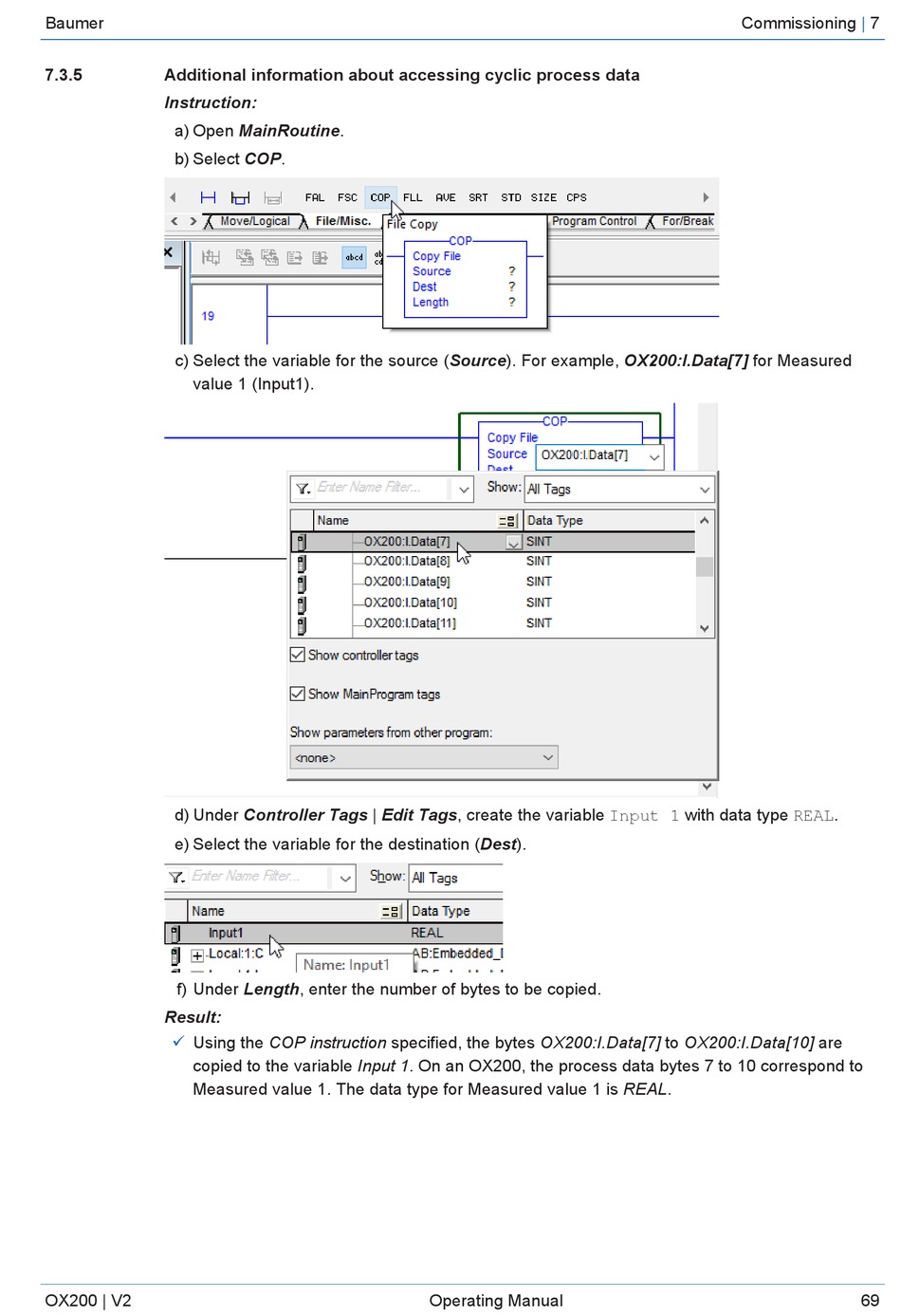

7.3.5

Additional information about accessing cyclic process data

Instruction:
a) Open MainRoutine.
b) Select COP.
c) Select the variable for the source (Source). For example, OX200:I.Data[7] for Measured
value 1 (Input1).
d) Under Controller Tags | Edit Tags, create the variable Input 1 with data type REAL.
e) Select the variable for the destination (Dest).
f) Under Length, enter the number of bytes to be copied.
Result:
ü
Using the COP instruction specified, the bytes OX200:I.Data[7] to OX200:I.Data[10] are
copied to the variable Input 1. On an OX200, the process data bytes 7 to 10 correspond to
Measured value 1. The data type for Measured value 1 is REAL.
OX200 | V2
Operating Manual
Commissioning
|
7
69
